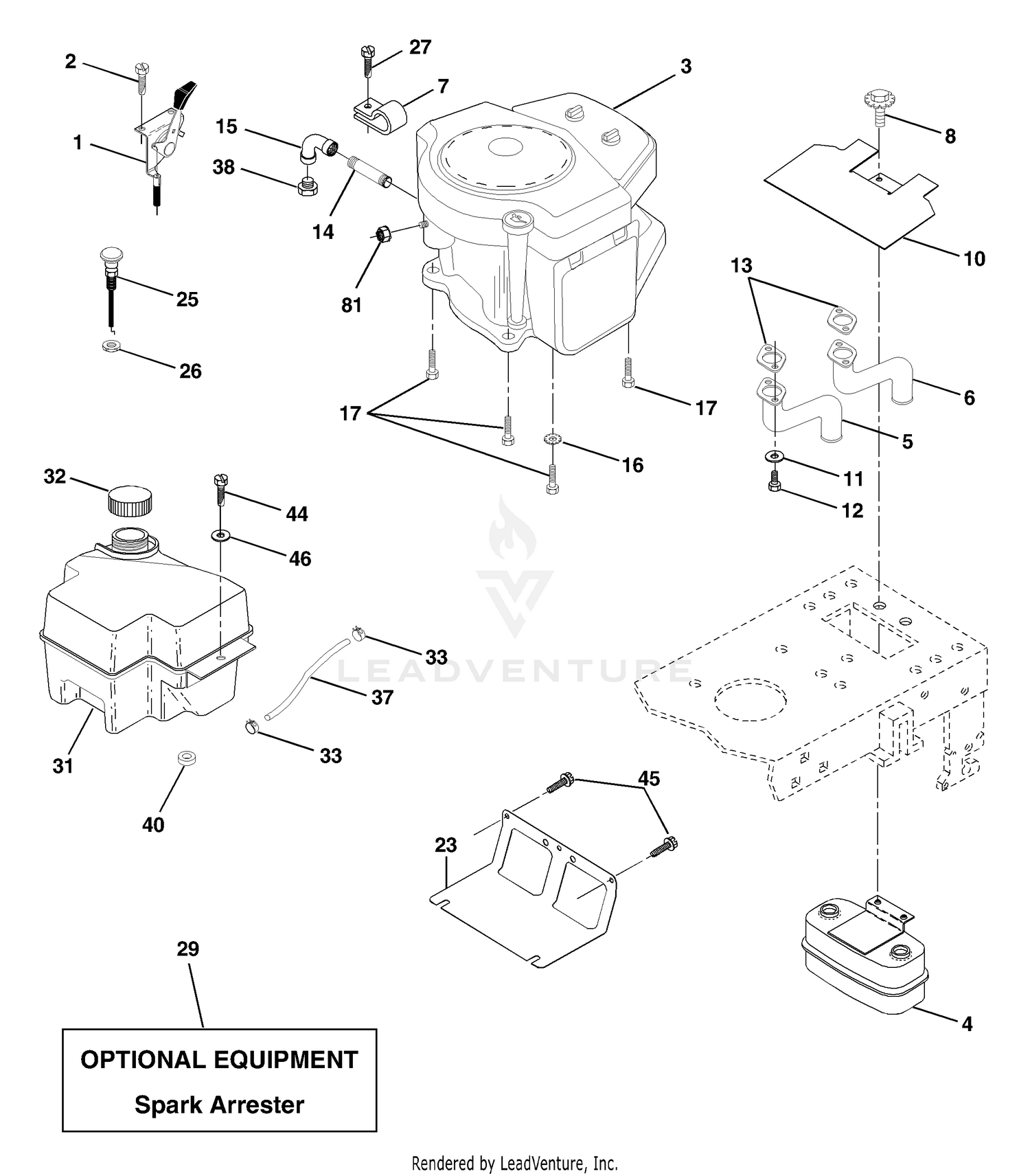

| Ref | Part Number | Description |
|---|
| 1 |
141295 |
Control Throt 35.5 Lh Flag Price: Call Us |
| 1 |
28-0650 |
SHAFT-AXLE, FLANGED Price: $1,130.23 |
| 2 |
17720410 |
Screw Hex Thd Cut 1/4-20x5/8 T Price: Call Us |
| 2 |
99-6969 |
SEAL-OIL, WHEEL END This part replaces 92-1774. Price: $14.71 |
| 3 |
21-8180 |
BEARING ASM Price: $65.11 |
| 4 |
149723 |
Muffler Exhaust Price: Call Us |
| 4 |
24-9180 |
STRUT AND LEVER ASM Price: $86.76 |
| 5 |
144069 |
Exhaust Asm. Left Price: Call Us |
| 5 |
21-9450 |
SHIELD-DUST Price: $45.14 |
| 6 |
144068 |
Exhaust Asm. Right Price: Call Us |
| 6 |
43-6810 |
SPIDER-TORQUE Price: $138.50 |
| 7 |
138129 |
Clamp Tube Double Engine Price: Call Us |
| 7 |
21-9430 |
SPRING-RETURN, RH Price: $19.96 |
| 8 |
150176 |
Bolt 5/16-18unc x 3/4 w/sems Price: Call Us |
| 8 |
28-0670 |
SEAL-GREASE Price: $19.74 |
| 9 |
84-8600 |
SET-SHOES, LINED Price: $131.50 |
| 10 |
145552 |
Shield Heat Price: Call Us |
| 10 |
21-9460 |
RETAINER-LEVER, BRAKE Price: $2.18 |
| 11 |
10040400 |
Wash Lock Hvy Hlcl spr 1/4 Price: Call Us |
| 11 |
242-34 |
STUD-DRIVE Price: $11.61 |
| 12 |
21-8360 |
CLIP-RETAINING Price: $1.29 |
| 12 |
74780412 |
Bolt Fin Hex 1/4-20 x 3/4 Price: Call Us |
| 13 |
165287 |
Gasket Muffler Price: Call Us |
| 13 |
28-0680-03 |
DRUM-BRAKE This part replaces 28-0680. Price: $358.84 |
| 14 |
13280336 |
Nipple Pipe 4-12" Price: Call Us |
| 14 |
21-9440 |
SPRING-SCREW, ADJUSTING Price: $11.92 |
| 15 |
13200300 |
Elbow Std 90 Degree 3/8-18 Npt Price: Call Us |
| 15 |
21-9390 |
SOCKET-SCREW, ADJUSTING Price: $5.56 |
| 16 |
11050600 |
Washer Lock Ext Tooth 3/8 Price: Call Us |
| 16 |
21-9370 |
SCREW-ADJUSTING Price: $18.80 |
| 17 |
17490624 |
Screw Thdrol 3/8-16 x 1-1/2 Tytt Price: Call Us |
| 17 |
21-9380 |
NUT-PIVOT Price: $26.77 |
| 18 |
94-6935 |
LOCKNUT Price: $1.09 |
| 19 |
21-9420 |
SPRING-RETURN, LH Price: $19.96 |
| 21 |
94-6934 |
SCREW-HH Price: $6.99 |
| 22 |
24-8840 |
RING-RETAINING, WHEEL BEARING Price: $37.15 |
| 23 |
169837 |
Shield Brn/Dbr Guard Price: Call Us |
| 23 |
94-6936 |
WASHER-HARDENED Price: $0.58 |
| 25 |
145996 |
Control Choke Price: Call Us |
| 26 |
73920600 |
Nut Keps 3/8-24 UNF Price: Call Us |
| 27 |
152927 |
Screw TT #10-32.5 3/8 Flange Price: Call Us |
| 29 |
137180 |
Arrestor Spark Price: Call Us |
| 31 |
161911 |
Tank Fuel Front 2.00 Price: Call Us |
| 32 |
140527 |
Cap Fuel Price: Call Us |
| 33 |
123487X |
Clamp Hose Blk Price: Call Us |
| 37 |
137040 |
Line Fuel Price: Call Us |
| 40 |
124028X |
Bushing Snap Nyl Blk Fuel Line Price: Call Us |
| 44 |
17670412 |
Screw Hex wsh Thdrol 1/4-20 x 3/4 Price: Call Us |
| 45 |
17000612 |
Screw Hex Wsh Thdr 3/8-16 x 3/4 Price: Call Us |
| 46 |
19091416 |
Washer 9/32 x 7/8 x 16 Ga. Price: Call Us |
