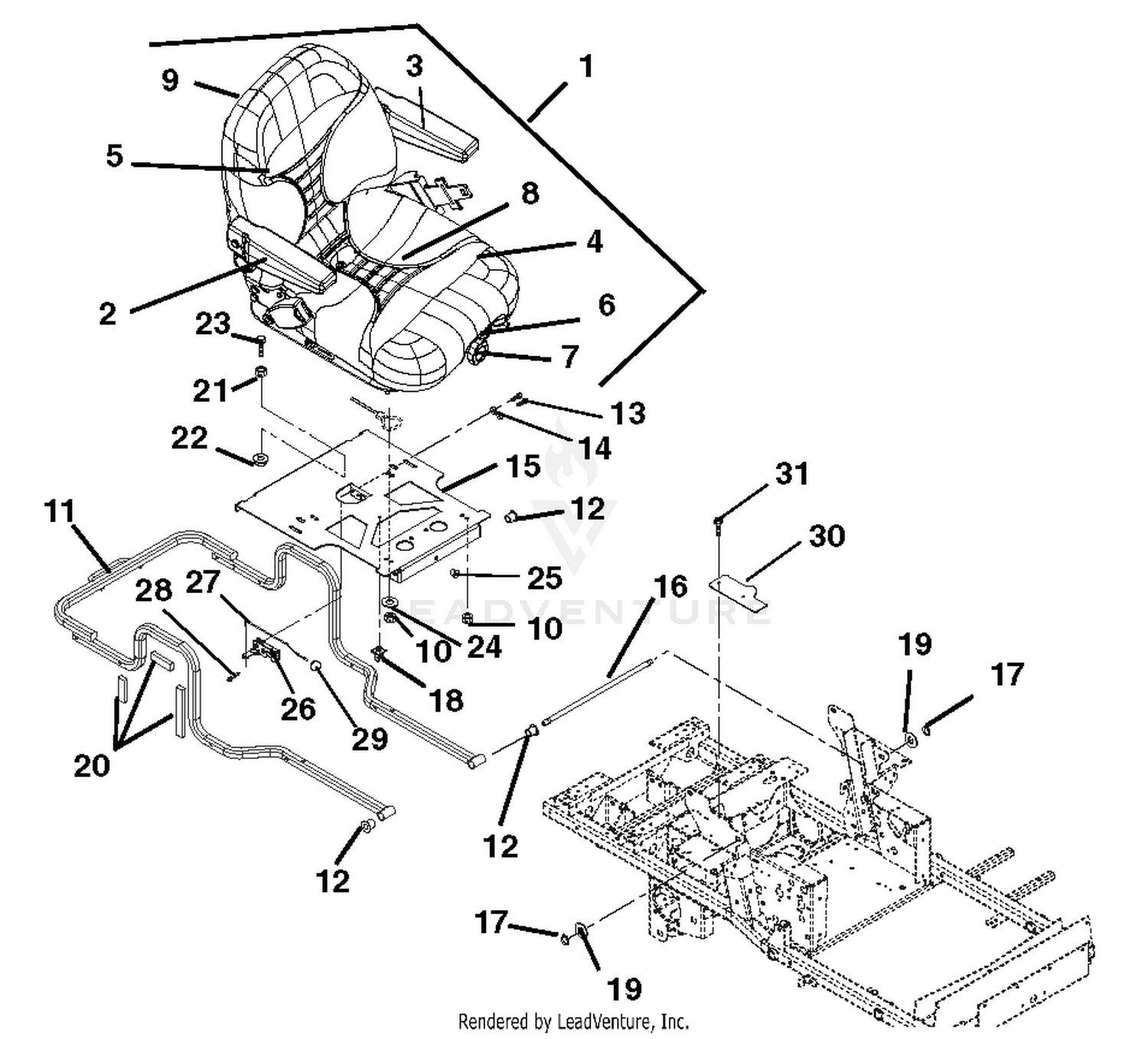

| Ref | Part Number | Description |
|---|
| 1 |
09680600 |
SEAT- FULL SUSPENSION This part replaces 04052900. Price: $744.95 |
| 2 |
59210400 |
KIT-RH ARMREST ASSEMBLY REPLAC Price: $109.95 |
| 3 |
59210500 |
KIT-LH ARMREST ASSEMBLY REPLAC Price: $109.95 |
| 4 |
59208900 |
KIT-SEAT CUSHION-LIGHT GRAY Price: $203.95 |
| 5 |
59208800 |
KIT-BACK CUSHION-LIGHT GRAY Price: $333.95 |
| 6 |
59207900 |
KIT-SEAT SLIDE Price: $172.45 |
| 7 |
59208000 |
KIT-SEAT KNOB Price: $26.95 |
| 8 |
59207800 |
KIT-SPRING AND SADDLE Price: $144.45 |
| 9 |
59208100 |
KIT-SEAT BACK PANEL Price: $138.95 |
| 10 |
06500904 |
NUT-LK-TOP-FLG .312-18 GF ZCC This part replaces 06543100. Price: $0.95 |
| 11 |
04091953 |
WMT-HOOD FRAME - LPG Price: Call Us |
| 12 |
05521100 |
BSHG-FLG .515X.750X.745X1.00NY Price: $2.45 |
| 13 |
05901639 |
BLT,HEX .25-20X1.00 G5 ZCC This part replaces 05947700. Price: $1.45 |
| 14 |
06401009 |
WSHR-LK-REG .250X.062 ZCC This part replaces 06308400. Price: $0.45 |
| 15 |
04044851 |
PLATE, SEAT 200 XDZ WITH LATCH Price: $81.95 |
| 16 |
09245400 |
ROD - SEAT FRAME PIVOT Price: $101.95 |
| 17 |
05717100 |
RG-RTNG-EXT .500X.050 (SNAP) Price: $2.45 |
| 18 |
00367900 |
ROUTING CLIP (1/2" ID) Price: $1.45 |
| 19 |
06401015 |
WSHR,FLT .531X1.062X.095 ZCC This part replaces 06441900. Price: $0.95 |
| 20 |
00932300 |
VHB TAPE 4941F Price: $3.45 |
| 21 |
06500814 |
NUT,HEX .50-13 G2 ZCC This part replaces 06537300. Price: $3.95 |
| 22 |
06500907 |
NUT-LK-TOP-FLG .500-13 GF ZCC This part replaces 06543600. Price: $1.45 |
| 23 |
05901631 |
BLT,HEX .50-13X1.50 G5 ZCC This part replaces 05962000. Price: $3.95 |
| 24 |
06401104 |
WSHR, FLT .340X1.125X.135 ZCC This part replaces 06446300. Price: $3.95 |
| 25 |
05500020 |
BUSHING, POLYLINER-.38 SNAPIN Price: $2.45 |
| 26 |
04054600 |
LATCH-ROTARY-PUSH TO CLOSE Price: $21.45 |
| 27 |
04058100 |
ROD-SEAT LATCH RELEASE Price: $17.45 |
| 29 |
07520500 |
KNOB, Price: $19.95 |
| 30 |
00978651 |
PLATE, BLOCK OFF Price: $5.45 |
