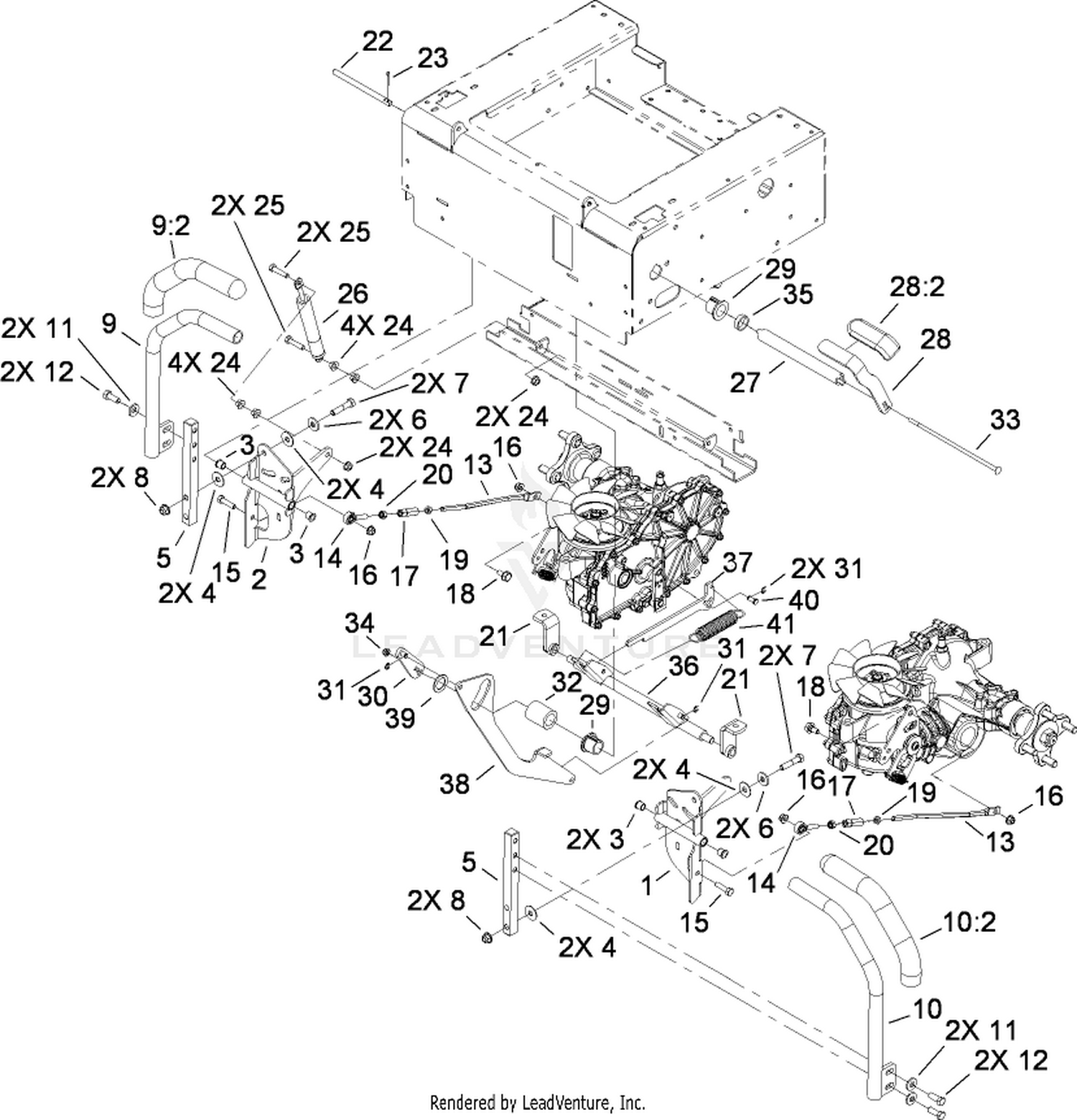

| Ref | Part Number | Description |
|---|
| 1 |
109-6915 |
LH MOTION CONTROL PIVOT ASM Price: $95.76 |
| 2 |
109-6914 |
RH MOTION CONTROL PIVOT ASM Price: $95.76 |
| 3 |
103-9928 |
BEARING Price: $5.04 |
| 4 |
52-2900 |
WASHER-PLASTIC Price: $0.75 |
| 5 |
109-3689 |
POST-LEVER MOUNT Price: $36.38 |
| 6 |
5-0838 |
WASHER Price: $1.09 |
| 7 |
323-9 |
SCREW-HH Price: $1.29 |
| 8 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 9 |
109-7098 |
RH LEVER AND GRIP ASM Price: $78.60 |
| 10 |
109-7099 |
LH LEVER AND GRIP ASM Price: $78.60 |
| 11 |
98-5975 |
WASHER-BELLEVILLE Price: $3.09 |
| 12 |
323-6 |
SCREW-HH Price: $0.66 |
| 13 |
109-3414 |
ROD-STEERING Price: $8.55 |
| 14 |
2411-53 |
BEARING-ROD END, LH Price: $35.54 |
| 15 |
322-6 |
SCREW-HH Price: $0.45 |
| 16 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 17 |
109-3728 |
NUT-ROD ADJUSTMENT Price: $9.23 |
| 18 |
37-8771 |
BOLT-SHOULDER,HFH Price: $3.59 |
| 19 |
3220-2 |
NUT-JAM Price: $0.50 |
| 20 |
3220-20 |
NUT-JAM Price: $0.92 |
| 21 |
109-6220 |
BRAKE PIVOT ASM Price: $28.25 |
| 22 |
109-3705 |
PIN-CONTROL PIVOT Price: $11.03 |
| 23 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 24 |
32128-20 |
NUT-HF Price: $0.99 |
| 25 |
1-403180 |
SCREW-HH Price: $1.26 |
| 26 |
109-5957 |
DAMPER-MOTION CONTROL Price: $56.88 |
| 27 |
109-5825 |
TUBE-BRAKE PIVOT Price: $23.82 |
| 28 |
109-5918 |
LEVER ASM Price: $47.36 |
| 29 |
107-7581 |
BUSHING-FLANGE, KEYED Price: $2.37 |
| 30 |
109-5824 |
BELLCRANK ASM Price: $28.25 |
| 31 |
701197 |
E-RING Price: $2.99 |
| 32 |
109-5834 |
SPACER Price: $6.10 |
| 33 |
109-5868 |
BOLT-CARR Price: $8.15 |
| 34 |
104-7201 |
NUT-HF Price: $0.69 |
| 35 |
109-5914 |
SPACER Price: $2.79 |
| 36 |
109-8765 |
BRAKE SHAFT ASM Price: $66.22 |
| 37 |
109-6907 |
LINK-BRAKE ACTUATION Price: $13.18 |
| 38 |
109-5833 |
ARM-BRAKE Price: $40.80 |
| 39 |
99-4958 |
SPACER Price: $2.39 |
| 40 |
109-6887 |
PIN-CLEVIS Price: $3.90 |
