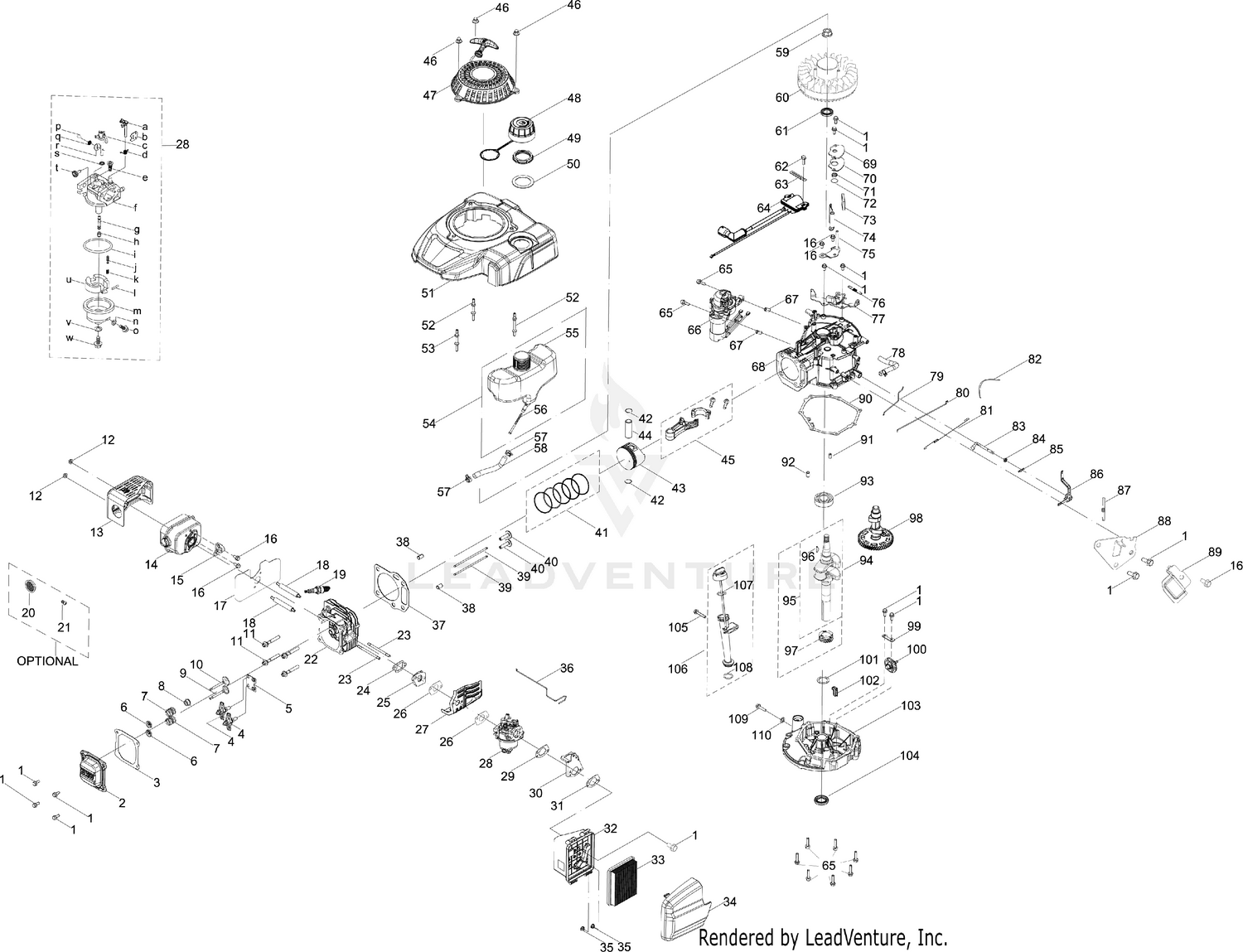

| Ref | Part Number | Description |
|---|
| S |
721P04714A |
CARB SHAFT GASKET Price: $1.22 |
| a |
None |
Choke Shaft |
| b |
None |
Choke Plate |
| c |
None |
Throttle Shaft |
| d |
None |
Choke Return Spring |
| e |
None |
Idle Jet Assembly |
| f |
None |
Carburetor Body |
| g |
None |
Emulsion Tube |
| h |
None |
Main Jet |
| i |
721-04710A |
FLOAT BOWL O-RING Price: $2.15 |
| j |
793P00165A |
NEEDLE VALVE This part replaces 793P00165. Price: $4.13 |
| k |
732P05251A |
NEEDLE VALVE SPRING This part replaces 732P05251. Price: $1.70 |
| l |
711-06043A |
FLOAT PIN This part replaces 711-06043. Price: $0.56 |
| m |
908-05001 |
FLOAT BOWL Price: $7.16 |
| n |
721P04711A |
FUEL DRAIN PLUG GASKET Price: $1.48 |
| o |
710-06227 |
FUEL DRAIN PLUG Price: $2.98 |
| p |
710-06230 |
SCREW-3Mx6 Price: $2.98 |
| q |
736P05209A |
LOCK WASHER 3MM Price: $2.45 |
| r |
None |
Throttle Plate |
| t |
710P06038A |
SPEED IDLE SCREW Price: $2.45 |
| u |
731P09132A |
FLOAT Price: $4.45 |
| v |
721-04709A |
FLOAT BOWL GASKET Price: $2.15 |
| w |
710-06226 |
FUEL BOWL BOLT Price: $2.98 |
| 1 |
710-04916 |
BOLT M6-1 x 14 GR8.8 Price: $3.86 |
| 2 |
951-14609A |
VALVE COVER Price: $14.42 |
| 3 |
751P18586A |
VALVE COVER GASKET Price: $3.94 |
| 4 |
951-11606A |
ROCKER ARM Price: $29.12 |
| 5 |
951-11687A |
PUSH ROD GUIDE This part replaces 951-11687. Price: $6.12 |
| 6 |
908-04094A |
VALVE RETURN SPRING Price: $3.20 |
| 7 |
751P12004A |
VALVE SPRING Price: $1.74 |
| 8 |
921-04237A |
INTAKE VALVE SEAL Price: $7.20 |
| 9 |
951-14641A |
EXHAUST VALVE Price: $8.71 |
| 10 |
951-14640A |
INTAKE VALVE Price: $8.71 |
| 11 |
910-06185 |
BOLT-M8 x 54 Price: $5.88 |
| 12 |
712-05015 |
HEX NUT Price: $5.78 |
| 13 |
951-15566 |
MUFFLER SHIELD Price: $24.41 |
| 14 |
951-14429A |
MUFFLER ASSEMBLY This part replaces 951-14429. Price: $55.88 |
| 15 |
951-14428A |
CHOKE TEMP CONTROL THERMOSTAT This part replaces 951-14428. Price: $36.29 |
| 16 |
710-04915 |
BOLT M6-1 x 12 GR8.8 Price: $3.82 |
| 17 |
751P18909A |
MUFFLER GASKET Price: $5.60 |
| 18 |
710-05094 |
STUD M6-1 x 95 Price: $3.78 |
| 19 |
951-14437A |
SPARK PLUG (F5RTC/RN11YC4/BPR5ES) Price: $6.35 |
| 20 |
951-10351A |
SPARK ARRESTOR Price: $48.91 |
| 21 |
710-04983 |
SCREW M3.5 x 9.5 Price: $3.65 |
| 22 |
951-14639 |
CYLINDER HEAD Price: $108.54 |
| 23 |
951-15580 |
STUD M6 x 90 Price: $5.25 |
| 24 |
751P18606A |
CARBURETOR INSULATOR GASKET This part replaces 751P18606. Price: $4.14 |
| 25 |
951-11738A |
CARBURETOR INSULATOR This part replaces 951-11738. Price: $4.60 |
| 26 |
721P05941A |
CARBURETOR GASKET Price: $2.98 |
| 27 |
751P18991 |
CARBURETOR HEAT SHIELD Price: $5.60 |
| 28 |
651P08667 |
CARBURETOR Price: $43.45 |
| 29 |
721P05942A |
AIR FILTER BRACKET GASKET Price: $5.20 |
| 30 |
908-05265 |
AIR FILTER BRACKET Price: $8.03 |
| 31 |
951-14419A |
AIR FILTER BASE GASKET Price: $7.08 |
| 32 |
931-12769 |
AIR FILTER BASE Price: $12.27 |
| 33 |
951-15245 |
AIR FILTER Price: $13.77 |
| 34 |
931-12768A |
AIR FILTER COVER This part replaces 931-12768. Price: $9.78 |
| 35 |
712-05015 |
HEX NUT Price: $5.78 |
| 36 |
951-14421A |
CHOKE TEMP CONTROL LINKAGE This part replaces 951-14421. Price: $7.10 |
| 37 |
751P18607A |
HEAD GASKET This part replaces 751P18607. Price: $4.14 |
| 38 |
715P04090A |
PIN (10MMx16MM) Price: $2.95 |
| 39 |
747P04862A |
PUSH ROD This part replaces 747-04862. Price: $5.10 |
| 40 |
951-14432A |
TAPPET Price: $7.49 |
| 41 |
951-14433A |
PISTON RING SET Price: $34.45 |
| 42 |
951-11603A |
WRIST PIN CLIP Price: $2.90 |
| 43 |
951-14434A |
PISTION Price: $56.68 |
| 44 |
951-14435A |
PISTON PIN Price: $9.22 |
| 45 |
951-14436A |
CONNECTING ROD This part replaces 951-14436. Price: $61.10 |
| 46 |
712-04276A |
ACORN NUT M6-1 Price: $5.38 |
| 47 |
951-05360A |
RECOIL STARTER ASSEMBLY Price: $50.15 |
| 48 |
951-15255A |
FUEL CAP W/TETHER Price: $23.25 |
| 49 |
931-10290A |
FUEL TANK NUT Price: $4.85 |
| 50 |
951-14406A |
FUEL TANK GROMMET Price: $9.68 |
| 51 |
631-05436A |
ENGINE SHROUD W/O IGNITION SWITCH This part replaces 631-05436. Price: $30.21 |
| 52 |
951-14397 |
STARTER/SHROUD REAR STUD Price: $8.66 |
| 53 |
951-14398 |
STARTER/SHROUD FRONT STUD Price: $8.66 |
| 55 |
931-12771A |
FUEL TANK Price: $43.89 |
| 56 |
951-12296A |
FUEL FILTER Price: $8.68 |
| 57 |
951-11700A |
CARBURETOR HOSE CLAMP Price: $3.60 |
| 58 |
935-05215A |
FUEL HOSE This part replaces 935-05215. Price: $11.42 |
| 59 |
712-04287A |
FLYWHEEL NUT M14-1.5 Price: $5.33 |
| 60 |
951-15491 |
FLYWHEEL ASSEMBLY Price: $89.57 |
| 61 |
951-11596A |
UPPER CRANKSHAFT SEAL Price: $5.44 |
| 62 |
710-04918 |
BOLT M6-1 x 20 GR8.8 Price: $3.56 |
| 63 |
951-11622A |
FLEXIBLE CLAMP Price: $3.42 |
| 64 |
925-07167 |
IGNITION COIL ASSEMBLY Price: $71.60 |
| 65 |
710-04943 |
BOLT-M6-1 x 28 GR8.8 Price: $3.76 |
| 66 |
951-05534 |
ELECTRIC STARTER ASSEMBLY Price: $165.11 |
| 67 |
715-04088A |
DOWEL PIN Price: $2.97 |
| 68 |
751P19015 |
CRANKCASE Price: $75.44 |
| 69 |
951-14404 |
BREATHER COVER PLATE Price: $12.64 |
| 70 |
951-14405A |
BREATHER GASKET Price: $7.39 |
| 71 |
732-04718A |
BREATHER VALVE SPRING Price: $3.30 |
| 72 |
951-11614A |
BREATHER VALVE Price: $3.13 |
| 73 |
951-11730A |
BREATHER SCREEN Price: $3.84 |
| 74 |
951-11529A |
AIR VANE Price: $6.25 |
| 75 |
751P18911 |
AIR VANE BRACKET Price: $5.00 |
| 76 |
932-05566A |
ENGINE BRAKE SPRING Price: $4.19 |
| 77 |
951-05533 |
ENGINE BRAKE ASSEMBLY Price: $33.36 |
| 78 |
951-15567 |
BREATHER HOSE ASSEMBLY Price: $5.25 |
| 79 |
951-15702 |
CHOKE LINKAGE Price: $4.19 |
| 80 |
951-14721 |
THROTTLE LINKAGE Price: $5.88 |
| 81 |
732P05188A |
THROTTLE LINKAGE SPRING This part replaces 732-05188. Price: $6.05 |
| 82 |
725-06031A |
CABLE TIE 3x150 Price: $2.04 |
| 83 |
951-11621 |
GOVERNOR ARM SHAFT Price: $8.68 |
| 84 |
951-11902A |
OIL SEAL Price: $3.36 |
| 85 |
714-04078A |
COTTER PIN Price: $3.19 |
| 86 |
951-05160A |
GOVERNOR ARM ASSEMBLY Price: $5.37 |
| 87 |
951-14718A |
GOVERNOR SPRING This part replaces 951-14718. Price: $6.70 |
| 88 |
908-05254 |
COMPONENT BRACKET Price: $5.71 |
| 89 |
908-05255 |
GOVERNOR SHIELD Price: $4.02 |
| 90 |
751P18609A |
CRANKCASE COVER GASKET This part replaces 751P18609. Price: $5.02 |
| 91 |
715-04092A |
DOWEL PIN 7 X 14 Price: $2.97 |
| 92 |
715-04096A |
DOWEL PIN 9 X 14 Price: $3.66 |
| 93 |
751P11369A |
BEARING Price: $5.19 |
| 95 |
751P19128 |
CRANKSHAFT Price: $75.00 |
| 96 |
751P10307A |
WOODRUFF KEY Price: $2.01 |
| 97 |
931-10288A |
GEAR Price: $8.18 |
| 98 |
751P18628A |
CAMSHAFT This part replaces 751P18628. Price: $17.80 |
| 99 |
951-11609A |
GOVERNOR GEAR MOUNTING PLATE Price: $3.94 |
| 100 |
951-05336A |
GEAR GOVERNOR Price: $7.77 |
| 101 |
736-04491A |
THRUST WASHER Price: $3.30 |
| 102 |
951-11733 |
OIL RETURN SEAL Price: $4.28 |
| 103 |
951-14418A |
CRANKCASE COVER This part replaces 951-14418. Price: $83.09 |
| 104 |
951-11545A |
LOWER CRANKSHAFT SEAL This part replaces 951-11545. Price: $9.07 |
| 105 |
710-04980 |
BOLT M6-1 x 35 GR8.8 Price: $3.42 |
| 106 |
951-05438 |
OIL DIPSTICK ASSEMBLY Price: $12.27 |
| 107 |
921-04795A |
O-RING Price: $3.38 |
| 108 |
921-04697A |
O-RING Price: $2.45 |
| 109 |
710-04906 |
OIL DRAIN PLUG Price: $5.86 |
| 110 |
736-04440A |
FLAT WASHER Price: $6.01 |
