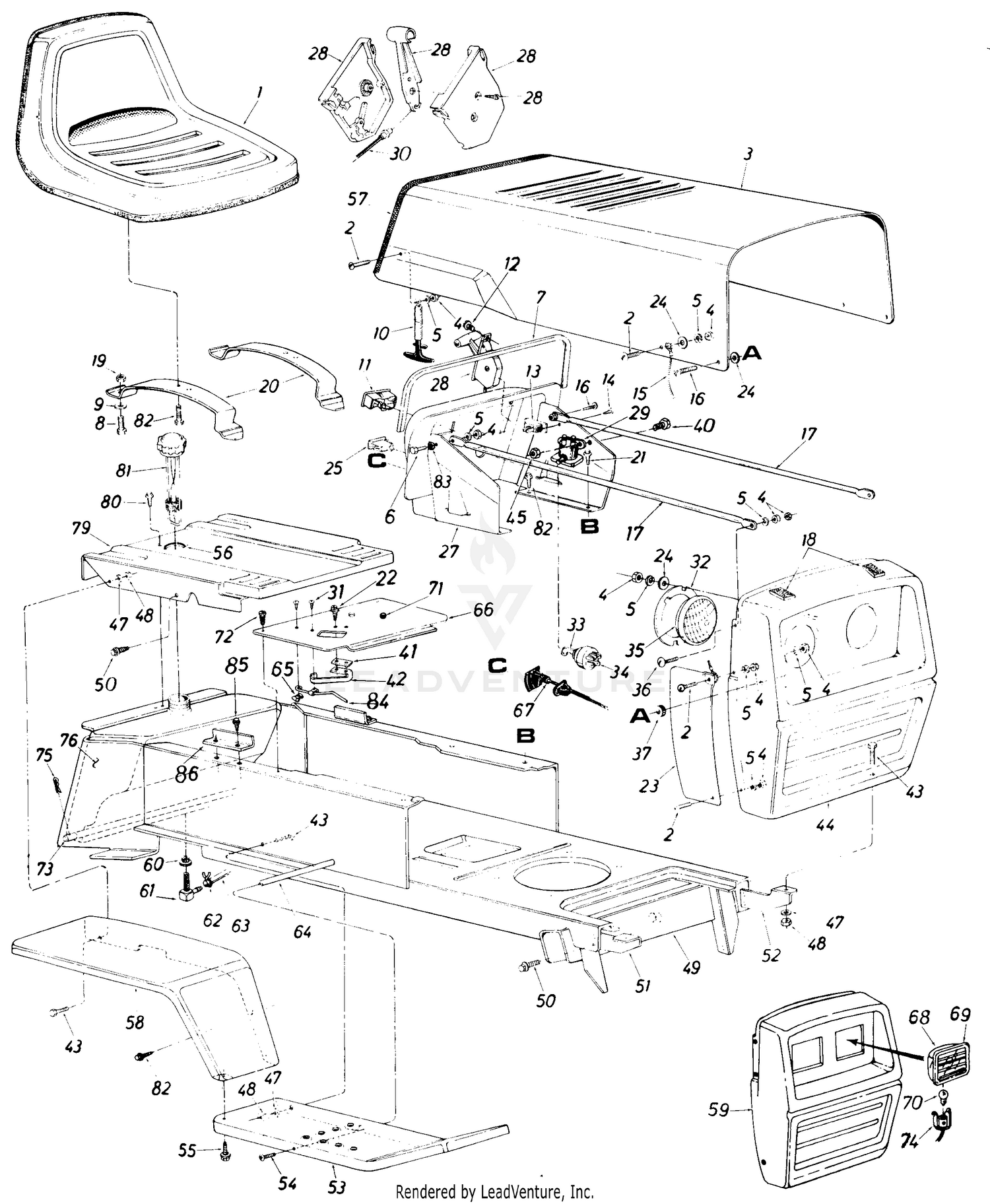

| Ref | Part Number | Description |
|---|
| 1 |
757-0308 |
Seat Assembly Price: Call Us |
| 2 |
710-0286 |
Truss Mach. Scr. 1/4-20 x .50" Lg.* Price: $3.86 |
| 3 |
13808 |
HOOD Not Available Price: |
| 4 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 5 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 6 |
710-0166A |
Truss Mach. Scr. 1/4-20 x 1.0" Lg. This part replaces 710-0166. Price: $6.24 |
| 7 |
731-0511 |
Vinyl Molding Strip-29" Price: $3.29 |
| 8 |
710-0689 |
SCREW 1/2-13 x .75 Not Available Price: |
| 9 |
736-0192 |
Fl-Wash 50" I.D. x 1.00" O.D x .090 Price: $3.75 |
| 10 |
723-0296 |
HOOD LOCK ASSEMBLY Not Available Price: |
| 11 |
925-0925 |
Ammeter Not Available This part replaces 725-0925. Price: |
| 12 |
710-0779A |
Truss Mach. AB-Tap Scr. #10 x .5" Lg. This part replaces 710-0779. Price: $3.85 |
| 13 |
753-0685 |
CIRCUIT BREAKER Not Available This part replaces 725-0459. Price: |
| 14 |
710-0351 |
Hex Tap Scr. #10 x .50" Lg.* Price: $3.90 |
| 15 |
727-0199 |
HOOD STOP Not Available Price: |
| 16 |
710-0924 |
Truss Mach. Scr. 1/4-20 x.75" Lg. This part replaces 710-0255. Price: $4.02 |
| 17 |
749-0651 |
BRACE-BOTTOM Not Available Price: |
| 18 |
722-0135 |
STRIP-FOAM 1/2X1.0 Not Available Price: |
| 19 |
712-0206 |
HEX NUT This part replaces 7120206. Price: $3.90 |
| 20 |
13123 |
SPRING-SEA Not Available Price: |
| 21 |
710-0599 |
Hex Thd. Rolling Scr. 1/4" x .50" Lg. Price: $3.86 |
| 22 |
710-0227 |
Hex AB-Tap Scr. #8 x .5" Lg. Price: $3.90 |
| 23 |
14748 |
Grille Side Panel-R.H. Price: Call Us |
| 24 |
736-0173 |
Fl-Wash. '/4" I.D. Price: $3.76 |
| 25 |
925-0634 |
Light Switch This part replaces 725-0634. Price: $15.62 |
| 27 |
16228 |
Dash Panel Ass'y. Price: Call Us |
| 28 |
831-0823A |
Throttle Control Box Ass'y. This part replaces 831-0823. Price: $30.59 |
| 29 |
925-0771 |
Solenoid This part replaces 725-0771. Price: $32.55 |
| 30 |
946-0634 |
Throttle Wire This part replaces 746-0634. Price: $10.24 |
| 31 |
710-0351 |
Truss Hd. Scr. #10 x .50" Lg. Price: $3.90 |
| 32 |
09960 |
RING HOLDE Not Available Price: |
| 33 |
925-0201 |
Key This part replaces 725-0201. Price: $8.70 |
| 34 |
925-0267B |
Ignition Switch This part replaces 725-0267. Price: $33.31 |
| 35 |
925-0222 |
Head Light This part replaces 725-0222. Price: $51.68 |
| 36 |
710-0924 |
Truss Mach. Scr. 1/4-20 x.75" Lg. This part replaces 710-0255. Price: $4.02 |
| 37 |
735-0144 |
RUBBER WASHER Not Available Price: |
| 40 |
910-0289 |
Hex Bolt 1/4-20 x .50" Lg. This part replaces 710-0289. Price: $3.15 |
| 41 |
926-0320 |
Insulatop Nut Plate This part replaces 726-0222. Price: $6.01 |
| 42 |
725-0759 |
SAFETY SWITCH KIT Not Available Price: |
| 43 |
710-0118 |
Hex Scr. 5/16-18 x .75" Lg. Price: $3.76 |
| 44 |
13801 |
Grille Ass'y. (Painted) Price: Call Us |
| 45 |
712-0271 |
Hex Sems Nut 1/4-20 Thd. Price: $3.78 |
| 47 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 48 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 49 |
13820 |
LOWER FRAME ASS'Y. Not Available Price: |
| 50 |
710-0726 |
Hex Thd. Rolling Scr. 5/16" x.75" Lg. Price: $3.82 |
| 51 |
13862 |
BRACKET-GR Not Available Price: |
| 52 |
13863 |
BRACKET-GR Not Available Price: |
| 53 |
13828 |
RUNNING BOARD R.H. Not Available Price: |
| 54 |
710-0323 |
Truss Mach. Scr. 5/16-18 x .75" Lg. Price: $4.02 |
| 55 |
710-0726 |
Hex Thd. Rolling Scr. 5/16-24 x .75" Lg. Price: $3.82 |
| 57 |
731-0511 |
Vinyl Moulding Strip-30" Price: $3.29 |
| 58 |
13810 |
Fender Ass'y.-R.H. Price: Call Us |
| 59 |
16486 |
Grille With Sq. Headlights Price: Call Us |
| 62 |
726-0207 |
HOSE CLAMP Not Available Price: |
| 63 |
751-22813-24 |
FUEL HOSE 1/4-24" This part replaces 751-0173. Price: $27.48 |
| 64 |
738-0435 |
ROD-RUNNING BOARD Not Available Price: |
| 65 |
712-0147 |
Speed Nut #10-24 U-Type Price: $6.01 |
| 66 |
16172 |
Transmission Cover Ass'y. Price: Call Us |
| 67 |
946-0613A |
Choke Control 44.0" Lg. This part replaces 746-0613. Price: $25.62 |
| 68 |
931-0705 |
HEADLIGHT HOUSING Not Available This part replaces 731-0705. Price: |
| 69 |
931-0706 |
HEADLAMP LENS Not Available This part replaces 731-0706. Price: |
| 70 |
925-0963 |
Miniature Lamp 12V Socket Type This part replaces 725-0963. Price: $6.73 |
| 71 |
731-0405 |
BUSHING Not Available Price: |
| 72 |
710-0351 |
Truss Hd. Scr. #10 x .50" Lg. Price: $3.90 |
| 73 |
738-0482 |
HITCH ROD Not Available Price: |
| 74 |
925-1058A |
HEADLAMP SOCKET Not Available This part replaces 725-1058. Price: |
| 75 |
714-0147 |
Internal Cotter Pin Price: $4.20 |
| 76 |
751-0259 |
FUEL TANK Not Available Price: |
| 79 |
13814 |
PLATE-SEAT Not Available Price: |
| 80 |
710-0726 |
Hex Thd. Rolling Scr. 5/16-24 x .75" Lg. Price: $3.82 |
| 81 |
723-0346A |
GAS GAUGE Not Available This part replaces 723-0346. Price: |
| 82 |
710-0726 |
Hex Thd. Rolling Scr. 5/16-24 x .75" Lg. Price: $3.82 |
| 83 |
736-0222 |
External Wash. 1/4" I.D. Price: $5.07 |
| 84 |
732-0476 |
SPRING-SHIFT LEVER Not Available Price: |
| 85 |
710-0896 |
Hex Screw, 1/4-14 x 0.625" This part replaces 710-0776. Price: $3.86 |
| 14226 |
Grille |
Ass'y. (Chrome) Price: Call Us 14226 |
