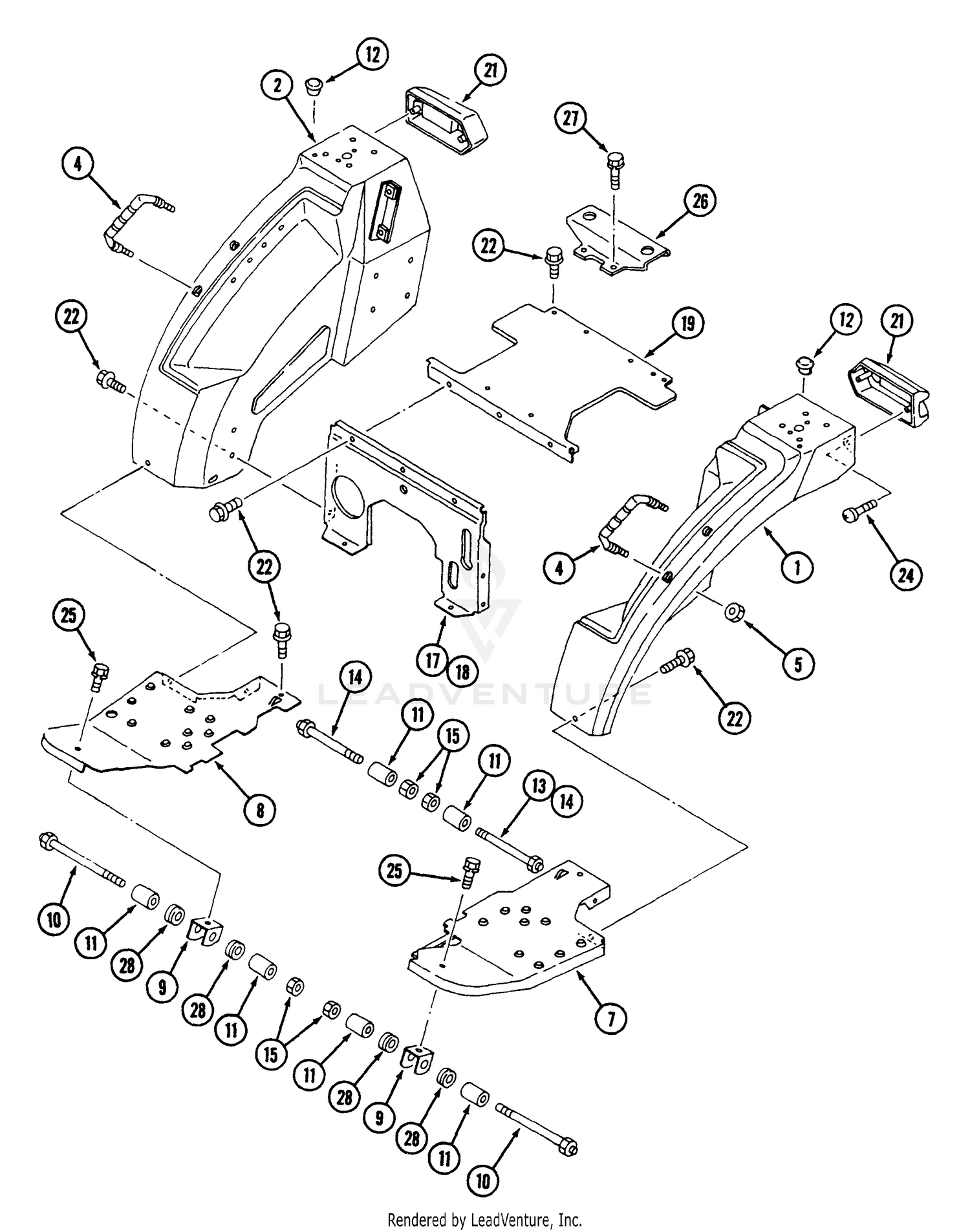

Fender And Step (HST)
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 532142187 | CAP.FUEL.GREY This part replaces 532132735. Price: $9.99 |
| 1 | MA-19633502BD0 | FENDER (LH) Not Available Price: |
| 2 | 532138395 | TANK ASM DASH LR Price: $56.99 |
| 2 | MA-19633504BD0 | FENDER (RH) Not Available Price: |
| 3 | 532123487 | HOSE CLAMP Price: $3.99 |
| 4 | 532000295 | FUEL LINE This part replaces 532008544. Price: $5.74 |
| 4 | MA-19633511000 | RAIL,HAND Not Available Price: |
| 5 | 532008548 | FUEL LINE T Price: $6.99 |
| 5 | MA-F3010108001 | NUT Not Available Price: |
| 6 | 586668901 | NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 7 | 532002751 | CLIP T This part replaces 532124996. Price: $2.42 |
| 7 | MA-19633521BD0 | STEP (LH) Not Available Price: |
| 8 | 596204201 | Washers This part replaces 819091216. Price: $2.99 |
| 8 | MA-19633523BD0 | STEP, R.H. Not Available Price: |
| 9 | 874760432 | BOLT.HEX.FINISHED.1/4-20 This part replaces 874760428. Price: $7.99 |
| 9 | MA-19633525000 | BRACKET Not Available Price: |
| 10 | 596135301 | Washers This part replaces 819091413. Price: $2.99 |
| 10 | MA-19633529000 | BOLT Not Available Price: |
| 11 | 532121249 | SPACER SPLIT Price: $4.99 |
| 11 | MA-19633531000 | RUBBER Not Available Price: |
| 12 | 532003720 | SPRING.COMPRESSION Price: $4.99 |
| 12 | MA-19082961000 | PLUG Not Available Price: |
| 13 | 532126450 | KNOB HGT RETAINER Price: $3.99 |
| 14 | 532126115 | KNOB Price: $3.99 |
| 14 | MA-19633528000 | BOLT Not Available Price: |
| 15 | 532122023 | ADJUSTER QUAD Price: $9.99 |
| 15 | MA-A3030116002 | NUT Not Available Price: |
| 16 | 532124346 | NUT.PUSH.3/16 Price: $6.99 |
| 17 | 872110404 | BOLT Price: $7.99 |
| 17 | MA-19633533BD0 | COVER, FRONT Not Available Price: |
| 18 | 532130745 | SUPT ASSY DASH Price: $23.04 |
| 19 | 532134744 | CROSS BRACE Price: $9.17 |
| 19 | MA-19633537BD0 | COVER,UPPE Not Available Price: |
| 20 | 817060408 | SCREW Price: $4.99 |
| 21 | MA-19673541000 | COVER Not Available Price: |
| 22 | MA-H1540108016 | BOLT,W/WASHER Not Available Price: |
| 24 | MA-04322105012 | SCREW Not Available Price: |
| 25 | MA-F1540108012 | BOLT,W/SPRING WASH Not Available Price: |
| 26 | MA-19633543AG0 | BRACKET Not Available Price: |
| 27 | MA-F1550112030 | BOLT,W/SPRING WASH Not Available Price: |
