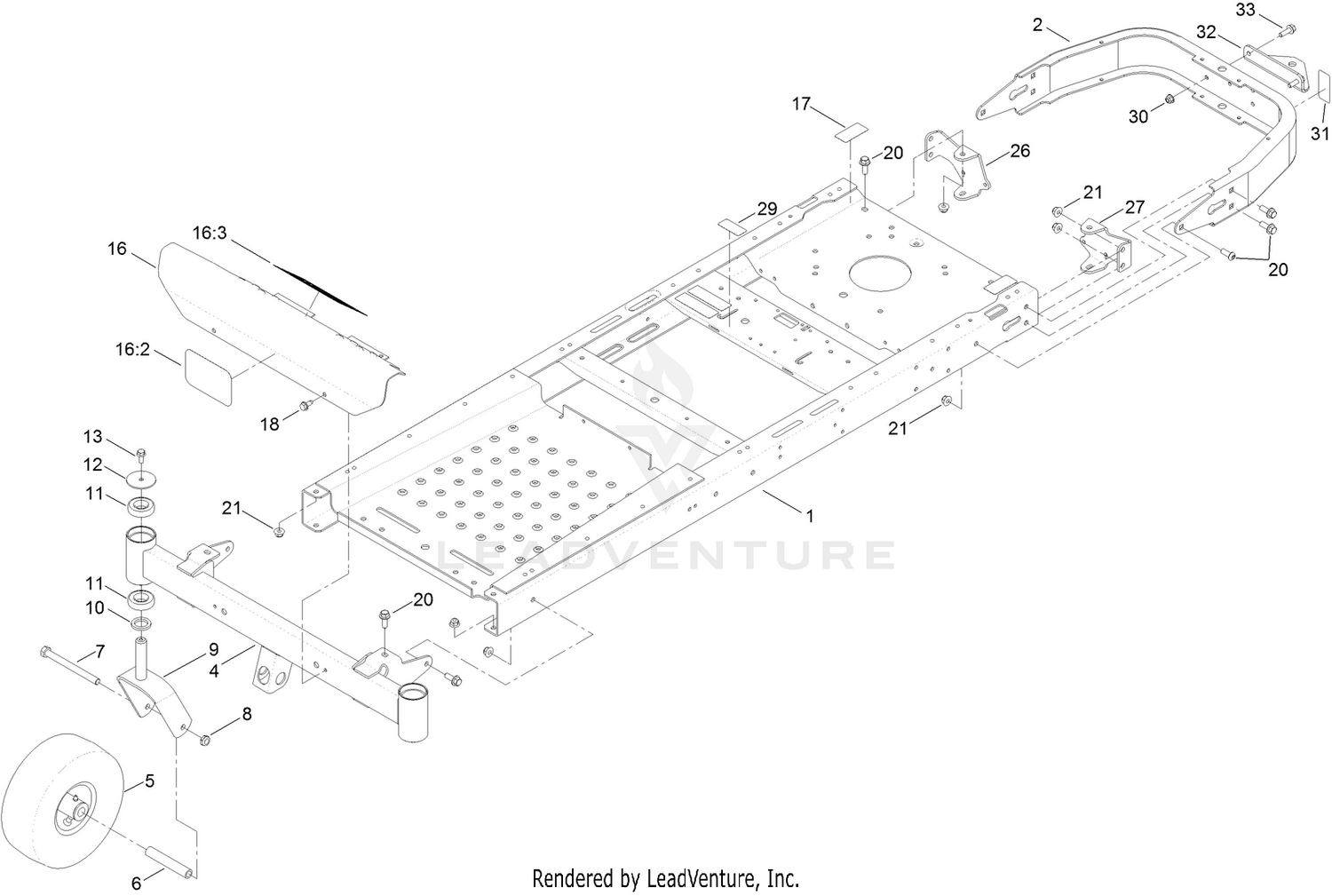

Fame, Front Axle and Caster Wheel Assembly
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 121-2970-01 | FRAME Price: $304.17 |
| 2 | 110-1920-01 | BUMPER-REAR Price: $80.40 |
| 4 | 120-5516-01 | AXLE-FRONT Price: $207.31 |
| 5 | 130-0736 | CASTER WHEEL ASM Price: $54.66 |
| 6 | 104-3667 | BUSHING-SPANNER Price: $12.64 |
| 7 | 325-22 | SCREW-HH Price: $4.26 |
| 8 | 3296-45 | NUT-HEX Price: $3.79 |
| 9 | 120-7964-01 | CASTER FORK ASM Price: $45.59 |
| 10 | 117-7394 | WASHER-THRUST Price: $1.70 |
| 11 | 109-3678 | BEARING-BALL Price: $9.46 |
| 12 | 119-8915 | WASHER Price: $2.01 |
| 13 | 3234-47 | SCREW-HHF Price: $1.79 |
| 16 | 132-0890 | FOOTREST ASM This part replaces 125-0072. Price: $140.16 |
| 17 | 121-2989 | DECAL-BYPASS Price: $2.26 |
| 18 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 20 | 3234-42 | SCREW-HHF Price: $1.10 |
| 21 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 26 | 121-0737-01 | MOUNT-HYDRO, REAR (RH) Price: $11.09 |
| 27 | 121-0738-01 | MOUNT-HYDRO, REAR (LH) Price: $11.09 |
| 29 | 121-5684 | DECAL-LOCATION, SERVICE DEALER Price: $1.19 |
| 30 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 31 | 109-7076 | DECAL Price: $5.37 |
| 32 | 117-1232-03 | BRACKET-HITCH Price: $19.74 |
