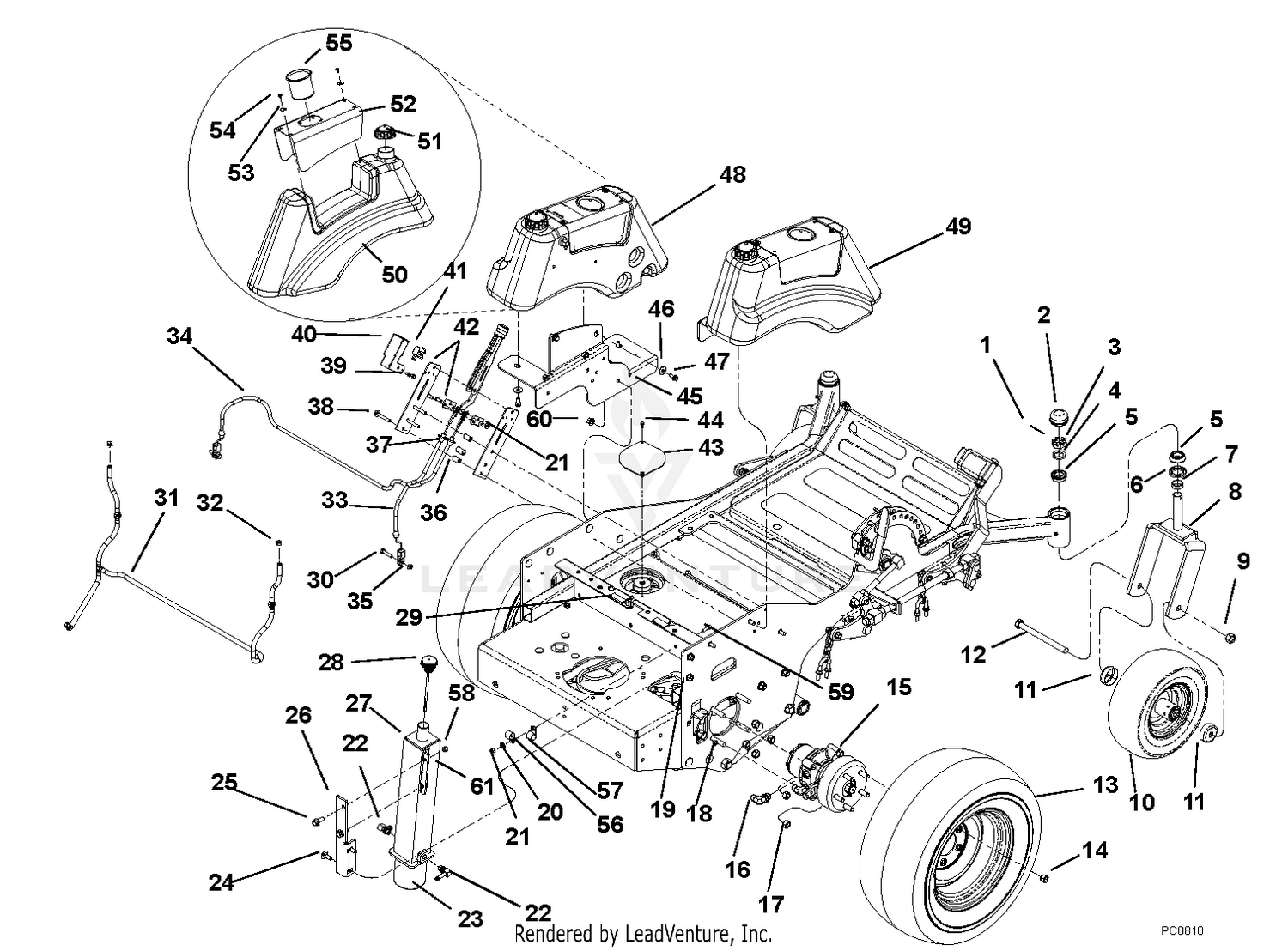

| Ref | Part Number | Description |
|---|
| 1 |
11M7083 |
PIN,COTTER,DIN94,3.2X50-ST-ZN Price: Call Us |
| 2 |
05117700 |
CAP-DUST This part replaces M135582. Price: Call Us |
| 3 |
A12188 |
NUT, 1-14 CASTLE Y Price: Call Us |
| 4 |
24H1801 |
WASHER,JDS24-1.016X1.5X.134-ST Price: Call Us |
| 5 |
05406900 |
BRG-CONE 1.0X.58 This part replaces JD8933. Price: $17.95 |
| 6 |
E14625 |
SEAL, WHEEL BEARING Price: $14.45 |
| 7 |
TCU17863 |
SPACER, CASTER Price: Call Us |
| 8 |
03866851 |
WLDT, YOKE CASTER GD Price: Call Us |
| 9 |
14M7276 |
NUT,ISO4032,M16X2-10-ZN Price: Call Us |
| 10 |
00200967 |
ASSY, WHEEL & TIRE - CASTER Price: Call Us |
| 11 |
TCU14490 |
CAP, WHEEL Price: Call Us |
| 12 |
19M7978 |
SCREW, HEX HEAD, METRIC Price: Call Us |
| 13 |
GDA10000 |
TIRE, ASSEMBLY 23X9.5-12 TURF Price: Call Us |
| 14 |
06500926 |
NUT- WHEEL .50-20 ZCC This part replaces 00960526. Price: $1.45 |
| 15 |
00200894 |
MOTOR, WHEEL RH W/BRAKE Price: Call Us |
| 16 |
D24026 |
FTG, 7/8ORB X 3/4JIC X 90 Price: Call Us |
| 17 |
H32811 |
LOCKNUT, 1/2-13 CENTER Y Price: Call Us |
| 18 |
19H1930 |
SCREW,JDS19-0.500-13UNC-2AX2.5 Price: Call Us |
| 19 |
14M7518 |
LOCKNUT,FL,ISO7044,M10X1.5-10- Price: $3.45 |
| 20 |
D14081 |
LOCKNUT, 5/16-18 NYLOC Y Price: Call Us |
| 21 |
24H1776 |
WASHER, 5/16 X 3/4 FLAT Price: Call Us |
| 22 |
D24028 |
FTG, 90 9/16MOR X 3/8HOSE Price: $8.95 |
| 23 |
GDA10137 |
FILTER, OIL Price: $25.45 |
| 24 |
03M7017 |
BLT-RDHDSQXLNKM10-1.50X25 8.8Y Price: Call Us |
| 25 |
19M7785 |
SCREW,HEX,FL,JDS123,M10X1.5X25 Price: Call Us |
| 26 |
00200836 |
BRACKET, RESERVOIR MOUNT Price: Call Us |
| 27 |
TCA15373 |
RESERVOIR, HYDRAULIC Price: $299.95 |
| 28 |
TCA15122 |
CAP, FILLER, OIL Price: $24.45 |
| 29 |
00415526 |
GASKET, FOAM 1/8 X 3/4 Price: Call Us |
| 30 |
19M8008 |
BOLT, M8-1.25 X 35 HEX HEAD 10 Price: Call Us |
| 31 |
00191282 |
ASSY, FUEL LINE W/CHECKVALVES Price: $72.95 |
| 32 |
03278800 |
CLAMP, FUEL LINE This part replaces 00130924. Price: $0.95 |
| 33 |
D28099 |
CABLE, RH BRAKE Price: $117.45 |
| 34 |
D28100 |
CABLE, LH BRAKE Price: $101.95 |
| 35 |
06538600 |
NUT-HEX M8-1.25 YWZC This part replaces 00961553. Price: $1.95 |
| 36 |
D23062 |
BUSHING Price: Call Us |
| 37 |
D25014 |
WELDMENT, BRAKE RETAINER Price: Call Us |
| 38 |
19M8319 |
SCREW,HEX,FL,JDS121,M8X1.25X50 Price: Call Us |
| 39 |
37M7059 |
SCREW,SELFT,FL,JDS145,M5X.8X12 Price: Call Us |
| 40 |
00200326 |
WLDT, BRAKE SWITCH BRACKET Price: Call Us |
| 42 |
D28019 |
LEVER, BRAKE Price: Call Us |
| 43 |
03865251 |
PLATE, COVER BLK Price: Call Us |
| 44 |
00967042 |
SCREW, 5/16X.500 HEX SLF TAP Y Price: Call Us |
| 45 |
03865151 |
BRACKET, LH TANK (BLACK) Price: Call Us |
| 46 |
06401027 |
WSHR,FLT .328X1.00X.094 ZCC This part replaces 06437500. Price: $3.45 |
| 47 |
07049600 |
BLT-SERHFWH .312-18X.75 YWZC Price: $2.45 |
| 48 |
03877300 |
ASSY, FUEL TANK LH Price: Call Us |
| 49 |
03837400 |
PARTS MANUAL, PROZOOM STAND 52 Price: Call Us |
| 50 |
01614000 |
FUEL TANK, LH Price: $209.95 |
| 51 |
01538400 |
FUEL CAP Price: $14.45 |
| 52 |
01614451 |
LH CONSOLE Price: $65.45 |
| 53 |
06400004 |
WASHER, FENDER 3/16X3/4 YWZC Price: $1.95 |
| 54 |
06100003 |
SCR-MCH 10-24X3/8 SL HEX YWZC Price: $1.95 |
| 55 |
01528500 |
CUPHOLDER Price: $13.95 |
| 56 |
E53830 |
P-CLIP, .750 INSULATED Price: $3.45 |
| 57 |
00111886 |
P-CLIP, .500 INSULATED Price: Call Us |
| 58 |
14M7517 |
LOCKNUT, M10X1.50 NYLOC Y Price: Call Us |
| 59 |
00960023 |
BOLT, 5/16-18X1.00 HEX 5 Y Price: Call Us |
| 60 |
H137328 |
LOCKNUT,M8X1.25,FLANGED ZN Price: $2.95 |
| 00200893 |
MOTOR, |
WHEEL LH W/BRAKE Price: $643.70 00200893 |
| 01614100 |
FUEL |
TANK, RH Price: $211.45 01614100 |
| 03865051 |
BRACKET, |
RH TANK (BLACK) Price: Call Us 03865051 |
