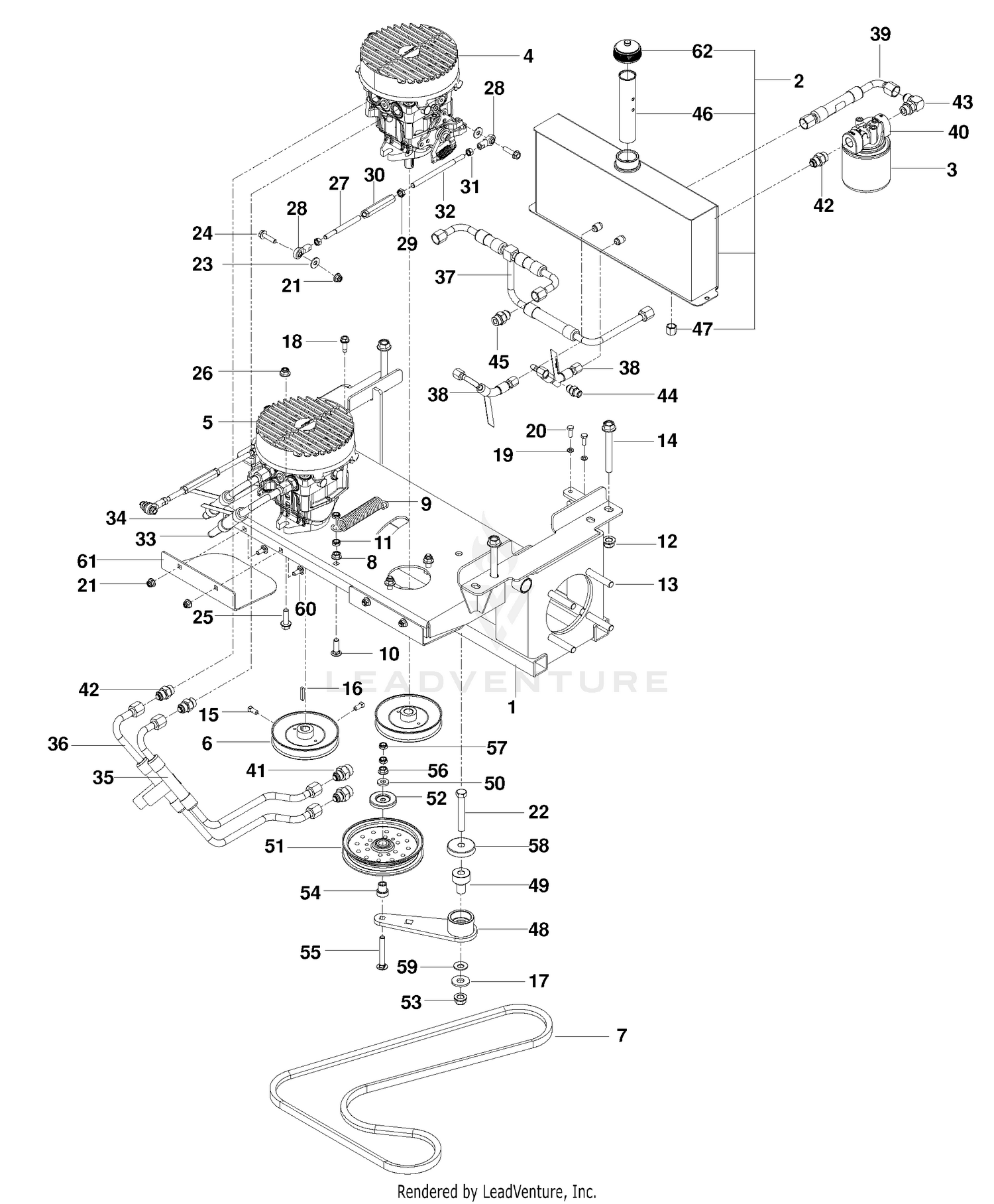

| Ref | Part Number | Description |
|---|
| 1 |
302-14 |
VENT Price: $8.03 |
| 1 |
506007902 |
FRAME, NYDR SUB, BLK Price: $599.99 |
| 2 |
54-2240-01 |
COVER-CENTER, RH This part replaces 54-2240. Price: $94.88 |
| 2 |
576035902 |
ASSEMBLY, RESERVOIR, OIL This part replaces 506120802. Price: $329.99 |
| 3 |
522805401 |
FILTER 25 MICRON Price: $27.99 |
| 3 |
54-2320 |
GEARBOX-DRIVE, DECK Price: Call Us |
| 4 |
3257-30 |
KEY-WOODRUFF Price: $5.35 |
| 4 |
505351001 |
HG_PUMP, 12CC RT Price: $1,399.99 |
| 5 |
505351101 |
HG_PUMP, 12CC LT Price: $1,399.99 |
| 5 |
54-2360 |
Pulley-Input (Incl. Ref. #6) Price: Call Us |
| 6 |
510019001 |
PULLEY, PUMP 15MM Price: $54.99 |
| 7 |
54-1360 |
V-BELT-DRIVE, DECK Price: $32.99 |
| 7 |
573978301 |
BELT, "B", 75.5" Price: $49.99 |
| 8 |
55-7040-01 |
COVER-CENTER, LEFT ASM This part replaces 55-7040. Price: $153.68 |
| 8 |
596583501 |
Washers This part replaces 539990613. Price: $2.99 |
| 9 |
510254402 |
Springs This part replaces 510254401. Price: $5.99 |
| 9 |
54-2220-01 |
COVER-DECK, LH This part replaces 54-2220. Price: $93.88 |
| 10 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 10 |
539100413 |
RHSNB 3/8-16 X 1-1/4 Price: $2.99 |
| 11 |
54-2350 |
Pulley-Output (Incl. Ref. #6) Price: Call Us |
| 11 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 12 |
322-4 |
SCREW-HH Price: $0.35 |
| 12 |
521991102 |
NUT 1/2-13 HEX FLANGE NYLOK CL This part replaces 521991101. Price: $3.99 |
| 13 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 13 |
539101332 |
HCS 1/2C X 2 3/4 Price: $4.99 |
| 14 |
105-4605-01 |
BRACKET-GEARBOX This part replaces 55-7030. Price: $223.02 |
| 14 |
525544802 |
Screws This part replaces 525544801. Price: $2.99 |
| 15 |
32152-1 |
NUT-LOCK, CONE Price: $1.49 |
| 15 |
539102717 |
SCREW 5/16C X 5/8 SQ HEAD Price: $2.99 |
| 16 |
539101177 |
KEY 5 MM SQ X 25 MM Price: $4.99 |
| 16 |
54-2760 |
DECAL-44 INCH Price: $40.64 |
| 17 |
54-2250-01 |
COVER-DECK, RH This part replaces 54-2250. Price: $33.23 |
| 17 |
595316401 |
Washers This part replaces 539109554. Price: $2.99 |
| 18 |
249-35 |
RING-SNAP Price: Call Us |
| 18 |
593337201 |
SCREW HEXAGON HEAD WITH COLLAR This part replaces 539113226. Price: $2.99 |
| 19 |
249-36 |
STUD-HEAD, WING Price: $22.81 |
| 19 |
596564801 |
Washers This part replaces 539990052. Price: $1.99 |
| 20 |
323-6 |
SCREW-HH Price: $0.66 |
| 20 |
596582501 |
Bolts This part replaces 539990072. Price: $2.99 |
| 21 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 22 |
539103433 |
HCS 1/2C X 3 1/4 Price: $5.99 |
| 23 |
596134901 |
GSPH This part replaces 539990692. Price: $2.99 |
| 24 |
525544002 |
Bolts This part replaces 525544001. Price: $3.99 |
| 25 |
525834202 |
Screws This part replaces 525834201. Price: $3.99 |
| 26 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 27 |
522842701 |
Controls This part replaces 522559201. Price: $27.99 |
| 28 |
539102590 |
BALL JOINT, RIGHT HANDED Price: $19.99 |
| 29 |
596029901 |
Hardware This part replaces 539108732. Price: $2.99 |
| 30 |
539109149 |
TURNBUCKLE, 3/8 Price: $39.99 |
| 31 |
596040901 |
Hardware This part replaces 539990223. Price: $2.99 |
| 32 |
522842801 |
LINKAGE, CONTROL, RR Price: $79.99 |
| 33 |
510010101 |
LINE, RT A Price: $89.99 |
| 34 |
510010201 |
LINE, RT B Price: $89.99 |
| 35 |
510010301 |
LINE, LT A Price: $89.99 |
| 36 |
510010401 |
LINE, LT B Price: $119.99 |
| 37 |
510010501 |
LINE, CHARGE Price: $129.99 |
| 38 |
510010601 |
LINE, CASE Price: $29.99 |
| 39 |
510010701 |
LINE, SUCTION Price: $24.99 |
| 40 |
575872301 |
FILTER HEAD Price: $37.99 |
| 41 |
539101237 |
FITTING, STRAIGHT F6400-8-8-0 This part replaces 539101239. Price: $7.99 |
| 42 |
539101237 |
FITTING, STRAIGHT F6400-8-8-0 Price: $7.99 |
| 43 |
539101242 |
ELBOW, 90 DEGREE Price: $29.99 |
| 44 |
539103316 |
STRAIGHT FITG Price: $9.99 |
| 45 |
539131748 |
FITTING, HYDRO Price: $6.99 |
| 46 |
522805001 |
TUBE, ANTI-SPLASH Price: $99.99 |
| 47 |
539105168 |
NUT 9/16-18 JIC CAP Price: $2.99 |
| 48 |
510041603 |
ARM, IDLER, STEEL, W/BGS Price: $49.99 |
| 49 |
510206301 |
PIVOT, BEARING Price: $3.99 |
| 50 |
522023401 |
WASHER, 3/8 THICK Price: $2.99 |
| 51 |
510283701 |
Idler This part replaces 510283702. Price: $34.99 |
| 52 |
510254502 |
SHIELD DUST This part replaces 510254501. Price: $3.99 |
| 53 |
521991102 |
NUT 1/2-13 HEX FLANGE NYLOK CL This part replaces 521991101. Price: $3.99 |
| 54 |
525435601 |
PIVOT, IDLER Price: $5.99 |
| 55 |
596581801 |
Bolts This part replaces 539130235. Price: $2.99 |
| 56 |
596583501 |
Washers This part replaces 539990613. Price: $2.99 |
| 57 |
596230801 |
Nuts This part replaces 539200282. Price: $2.99 |
| 58 |
596394601 |
Shields This part replaces 539114662. Price: $2.99 |
| 59 |
596581701 |
Washers This part replaces 539115528. Price: $2.99 |
| 60 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 61 |
574398502 |
SHIELD, PULLEY, BLK Price: $29.99 |
| 62 |
548058201 |
CAP HYDRAULIC CAP This part replaces 522805301. Price: $32.99 |
