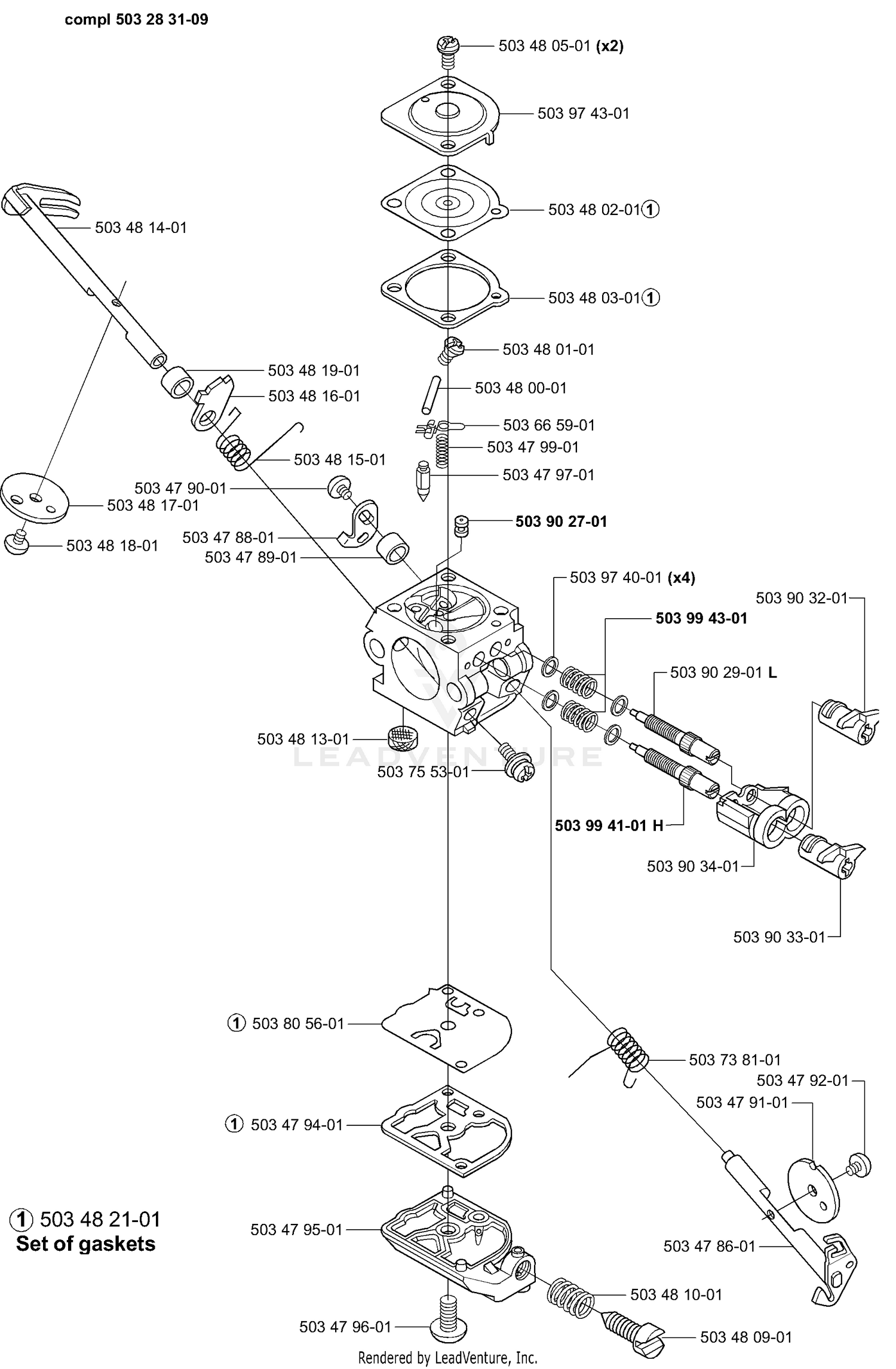

Carburetor ZAMA C1Q - EL 10 (EPA)
Parts (39)
| Ref | Part Number | Description |
|---|---|---|
| 503283109 | 503283109 | CARBURETOR Price: $89.99 |
| 503478601 | 503478601 | THROTTLE SHAFT Price: $8.99 |
| 503478801 | 503478801 | STARTER LEVER Price: $3.99 |
| 503478901 | 503478901 | SPACER Price: $3.99 |
| 503479001 | 503479001 | SCREW Price: $2.99 |
| 503479101 | 503479101 | THROTTLEFLAP Price: $4.99 |
| 503479201 | 503479201 | SCREW Price: $2.99 |
| 503479401 | 503479401 | GASKET PUMPSIDE Price: $2.99 |
| 503479501 | 503479501 | PUMPCOVER Price: $9.99 |
| 503479601 | 503479601 | SCREW Price: $2.99 |
| 503479701 | 503479701 | INLET NEEDLE Price: $8.99 |
| 503479901 | 503479901 | SPRING Price: $2.99 |
| 503480001 | 537020801 | PIN This part replaces 503480001. Price: $2.99 |
| 503480101 | 503480101 | SCREW Price: $2.99 |
| 503480201 | 503480201 | METERING DIAPHRAGM Price: $11.99 |
| 503480301 | 503480301 | GASKET METERING SIDE Price: $4.99 |
| 503480501 | 503480501 | SCREW Price: $2.99 |
| 503481001 | 503481001 | SPRING Price: $2.99 |
| 503481301 | 503481301 | FUEL INLET SCREEN Price: $2.99 |
| 503481401 | 503481401 | CHOKE SHAFT Price: $17.99 |
| 503481501 | 503481501 | SPRING Price: $2.99 |
| 503481601 | 503481601 | STARTER LEVER Price: $0.99 |
| 503481701 | 503481701 | CHOKE FLAP Price: $5.99 |
| 503481801 | 503481801 | SCREW Price: $2.99 |
| 503481901 | 503481901 | BUSHING Price: $5.99 |
| 503482101 | 503482101 | DIAPHRAGM GASKET KIT Price: $11.99 |
| 503665901 | 503665901 | LEVER Price: $3.99 |
| 503738101 | 503738101 | SPRING Price: $2.99 |
| 503755301 | 503755301 | SCREW * Price: $2.99 |
| 503805601 | 503805601 | PUMP DIAPHRAGM Price: $5.99 |
| 503902701 | 503902701 | Valve, Check Price: $13.75 |
| 503902901L | 503902901L | Price: Call Us |
| 503903201 | 503903201 | LIMITER CAP Price: $4.99 |
| 503903301 | 503903301 | LIMITER CAP Price: $3.99 |
| 503903401 | 503903401 | SLEEVE Price: $6.99 |
| 503974001 | 503974001 | WASHER Price: $2.99 |
| 503974301 | 503974301 | COVER Price: $5.99 |
| 503994101H | 503994101H | Price: Call Us |
| 503994301 | 503994301 | SPRING Price: $2.99 |
