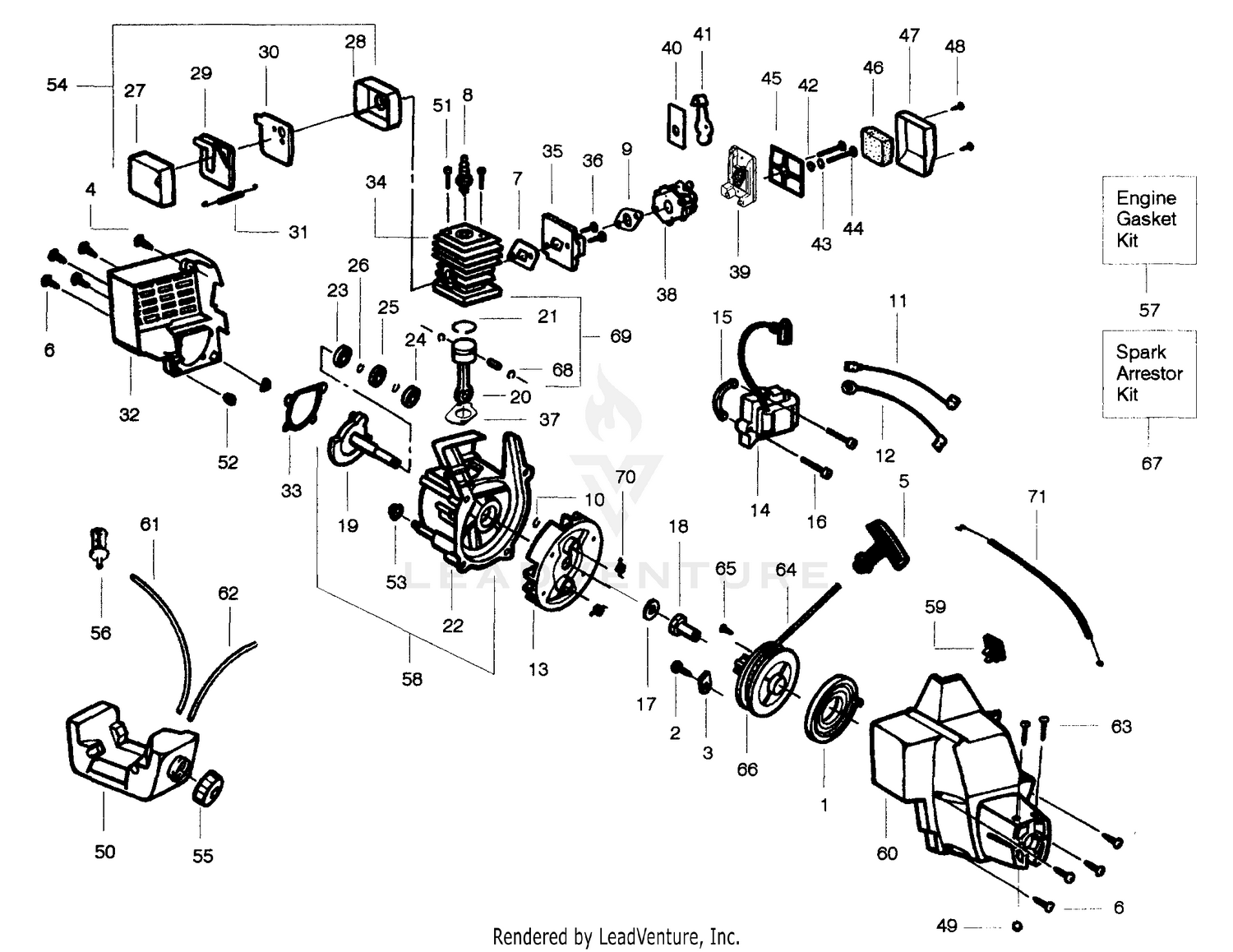

| Ref | Part Number | Description |
|---|
| 1 |
545008010 |
STARTER SPRING This part replaces 530042085. Price: $3.99 |
| 2 |
340-142 |
FITTING-ELBOW-90 Price: $65.90 |
| 2 |
530015775 |
Screw - Pulley Price: $1.99 |
| 3 |
530027523 |
Retainer - Pulley Price: $2.99 |
| 3 |
92-9258 |
ADAPTER-CHECK Price: $125.92 |
| 4 |
100-4890 |
FITTING-CHECK Price: $72.76 |
| 4 |
530015934 |
Screw - Shrd/Fan Hsg. Price: $1.99 |
| 5 |
104-3509 |
FITTING-HYD, 45 DEG Price: $72.04 |
| 5 |
530027569 |
Starter Handle Price: $1.99 |
| 6 |
340-9 |
FITTING-HYD, STRAIGHT Price: $67.47 |
| 6 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 7 |
530019243 |
Gasket - Cylind./Carb. Price: $1.99 |
| 8 |
503235112 |
Spark Plug This part replaces 952030201. Price: $5.99 |
| 9 |
530019194 |
Gasket - Carb. Price: $1.99 |
| 10 |
530015945 |
Retainer Ring - C'case Price: $1.99 |
| 11 |
530014663 |
Lead Wire Ass'y. Price: $5.99 |
| 12 |
581425901 |
SWITCH, GROUND WIRE This part replaces 530014662. Price: $1.99 |
| 13 |
545221701 |
FLYWHEEL ASSY This part replaces 530069886. Price: $8.99 |
| 14 |
530039163 |
Ignition Module Price: $34.99 |
| 15 |
530036145 |
Spacer - Ignit. Module Price: $1.99 |
| 16 |
530015954 |
Screw - Ignit. Module Price: $1.99 |
| 17 |
530015828 |
Washer - Flat Price: $1.99 |
| 18 |
530027953 |
Drive Coupling Price: $1.99 |
| 19 |
530014532 |
Crankshaft Ass'y. Price: Call Us |
| 20 |
530069615 |
Connecting Rod Ass'y. Price: $14.99 |
| 21 |
530053565 |
Piston Ring Price: $1.28 |
| 23 |
530032125 |
Inner Bearing Price: $11.99 |
| 24 |
530032124 |
Outer Bearing Price: $4.99 |
| 25 |
530019179 |
C'case Seal Price: $2.99 |
| 26 |
530015941 |
Retain. Ring - C'shaft Price: $1.99 |
| 27 |
530036578 |
Muffler Body Price: $2.99 |
| 28 |
530036577 |
Muffler Cover Price: $2.99 |
| 29 |
530049489 |
Muffler Baffle - Exit Price: $1.99 |
| 30 |
530036579 |
Muffler Baffle - First Price: $2.99 |
| 31 |
530016197 |
Muffler Spring Price: $1.99 |
| 32 |
530049707 |
Rear Shroud Price: $7.99 |
| 33 |
530019181 |
Gasket - C'case Price: $1.99 |
| 34 |
530053445 |
Cylinder Price: $12.99 |
| 35 |
530069994 |
Carb. Adapter Kit Price: $3.99 |
| 36 |
530016014 |
Screw - Carb Adaptor Price: $1.99 |
| 37 |
530019223 |
Gasket - Cylinder Price: $1.99 |
| 39 |
530052431 |
Air Box Price: $1.99 |
| 40 |
530038747 |
Choke Plate Price: $1.99 |
| 41 |
530038686 |
Choke Shutter Price: $1.99 |
| 42 |
530015254 |
Washer Price: $1.99 |
| 43 |
530015852 |
Choke Spacer Price: $1.99 |
| 44 |
530015887 |
Screw Price: $1.99 |
| 45 |
530036569 |
Filter Plate Price: $1.99 |
| 46 |
530036575 |
Air Filter Foam Price: $1.99 |
| 47 |
530036568 |
Air Filter Cover Price: $1.99 |
| 48 |
530015957 |
Screw Price: $1.99 |
| 49 |
530015768 |
Locknut Price: $1.99 |
| 50 |
530049299 |
Assy-Fuel Tank This part replaces 530049933. Price: $22.99 |
| 51 |
530015953 |
Screw - Cylinder Price: $1.99 |
| 52 |
530036793 |
Isolator - Shroud Price: $5.99 |
| 53 |
530036792 |
Isolator - Crankcase Price: $4.99 |
| 54 |
530069660 |
Muffler Kit Price: $11.99 |
| 55 |
530014347 |
Fuel Cap Ass'y. Price: $4.99 |
| 56 |
530095646 |
Assy-Fuel Pickup This part replaces 530014362. Price: $2.99 |
| 59 |
530071356 |
Switch-Momentary This part replaces 530038114. Price: $4.99 |
| 60 |
530014921 |
Fan Housing Ass'y Price: $19.99 |
| 61 |
530069247 |
Fuel Line - (Small Line) Price: $3.99 |
| 62 |
530069216 |
Fuel Line - (Large Line) Price: $3.99 |
| 63 |
530015767 |
Screw Price: $1.99 |
| 64 |
530069232 |
Rope Kit Price: $3.99 |
| 65 |
530016080 |
Screw - Rope Retain. Price: $1.99 |
| 67 |
530069380 |
Spark Arrestor Kit Price: $3.99 |
| 68 |
530015162 |
Piston Pin Retainer Price: $1.99 |
| 70 |
530023817 |
Starter Dog Spring Price: $1.99 |
