| Ref | Part Number | Description |
|---|
| 1 |
104-4620 |
SEAT Price: $273.15 |
| 2 |
106-7090 |
HARNESS-WIRE, SEAT SWITCH Price: $26.16 |
| 3 |
92-6282 |
SWITCH-SEAT Price: $31.99 |
| 4 |
110-9730 |
SEAT SUSPENSION ASM This part replaces 76-1970. Price: $776.63 |
| 5 |
32144-10 |
SCREW-HWH Price: $4.29 |
| 6 |
93-0140 |
GROMMET-RUBBER Price: $3.94 |
| 9 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 10 |
104-7048 |
CAP-HOUSING Price: $5.21 |
| 11 |
104-7050 |
TUBE-MANUAL Price: $8.76 |
| 12 |
2412-133 |
CLAMP-R Price: $3.19 |
| 13 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 14 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 15 |
322-3 |
SCREW-HH Price: $0.79 |
| 16 |
2412-93 |
CLAMP-R Price: $1.02 |
| 18 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 19 |
112-0169 |
SEATBELT ASM-SERVICE This part replaces 21-4191. Price: $283.31 |

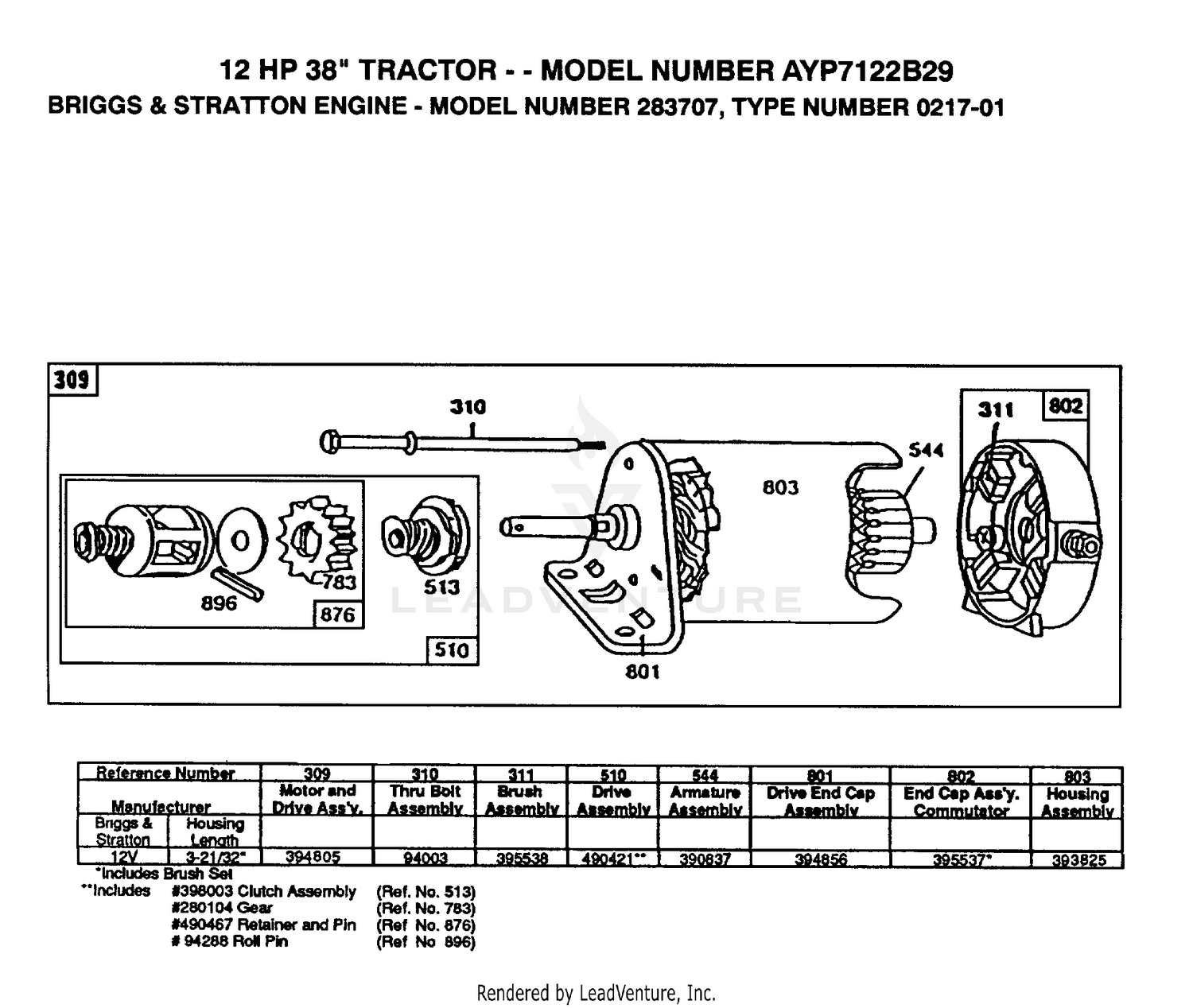

| 309 |
394805 |
MOTER AND DRIVE ASSY. Price: Call Us |
| 310 |
94003 |
BOLT Price: Call Us |
| 311 |
395538 |
BRUSH ASSEMBLY Price: Call Us |
| 510 |
490421 |
STARTER DRIVE GROUP Price: Call Us |
| 513 |
398003 |
CLUTCH ASSEMBLY Price: Call Us |
| 544 |
390837 |
ARRMATURE ASSEMBLY Price: Call Us |
| 783 |
280104 |
GEAR, STARTER Price: Call Us |
| 801 |
394856 |
CAP, DRIVE Price: Call Us |
| 802 |
395537 |
END CAP ASS'Y. COMMUTATOR Price: Call Us |
| 803 |
393825 |
HOUSING ASSEMBLY Price: Call Us |
| 876 |
490467 |
PINION SPRING KIT Price: Call Us |
