| Ref | Part Number | Description |
|---|

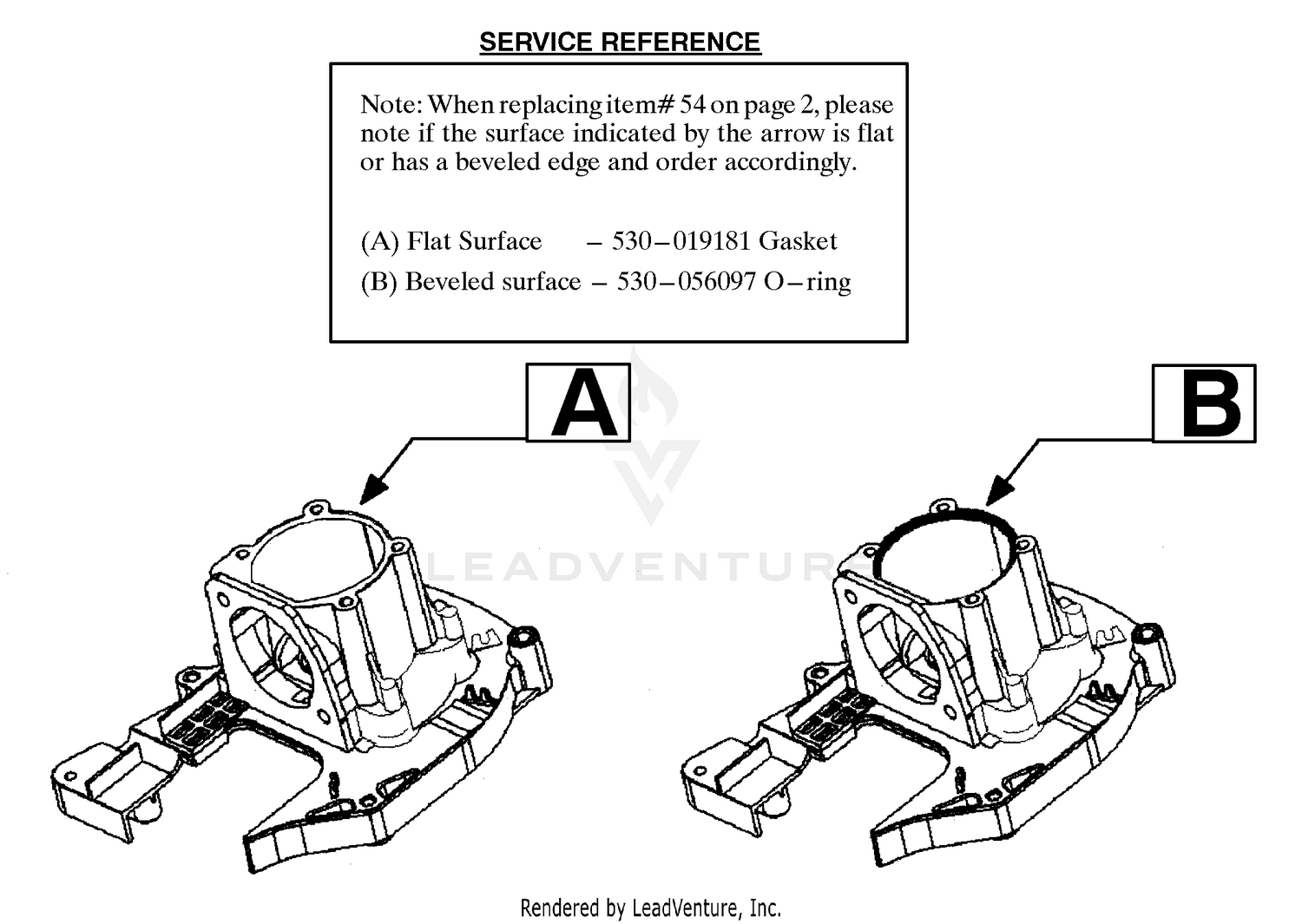

| A |
530019181 |
Gasket Flat Surface Price: $1.99 |
| 3 |
121-8457 |
FILTER-AIR Price: $34.12 |
| 4 |
107069 |
CLIP Price: $1.79 |
| 5 |
98-8332 |
KNOB Price: $4.89 |
| 6 |
125-9825-03 |
COVER-AIR, FRESH Price: $80.77 |
| 7 |
3230-9 |
SCREW-CARR Price: $0.68 |
| 8 |
3230-22 |
SCREW-CARR Price: $1.99 |
| 9 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 10 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 11 |
32115-15 |
PUSHNUT-RETAINER, BOLT This part replaces 106-8737. Price: $0.99 |
| 12 |
130-5871 |
BRACKET-WIPER Price: $42.69 |
| 13 |
32144-11 |
SCREW-THD ROLL, HWH Price: $6.99 |
| 14 |
32105-15 |
SCREW-HWH Price: $1.79 |
| 15 |
104-7201 |
NUT-HF Price: $0.69 |
| 16 |
125-7452 |
WIPER MOTOR ASM Price: $435.07 |
| 17 |
125-7453 |
ARM-WIPER Price: $121.52 |
| 18 |
125-7454 |
BLADE-WIPER Price: $49.61 |
| 19 |
130-5661 |
TUBE-SLEEVE Price: $37.14 |
| 20 |
3229-30 |
SCREW-CARR Price: $1.39 |
| 21 |
130-5854 |
BRACE-SEAL Price: $4.07 |
