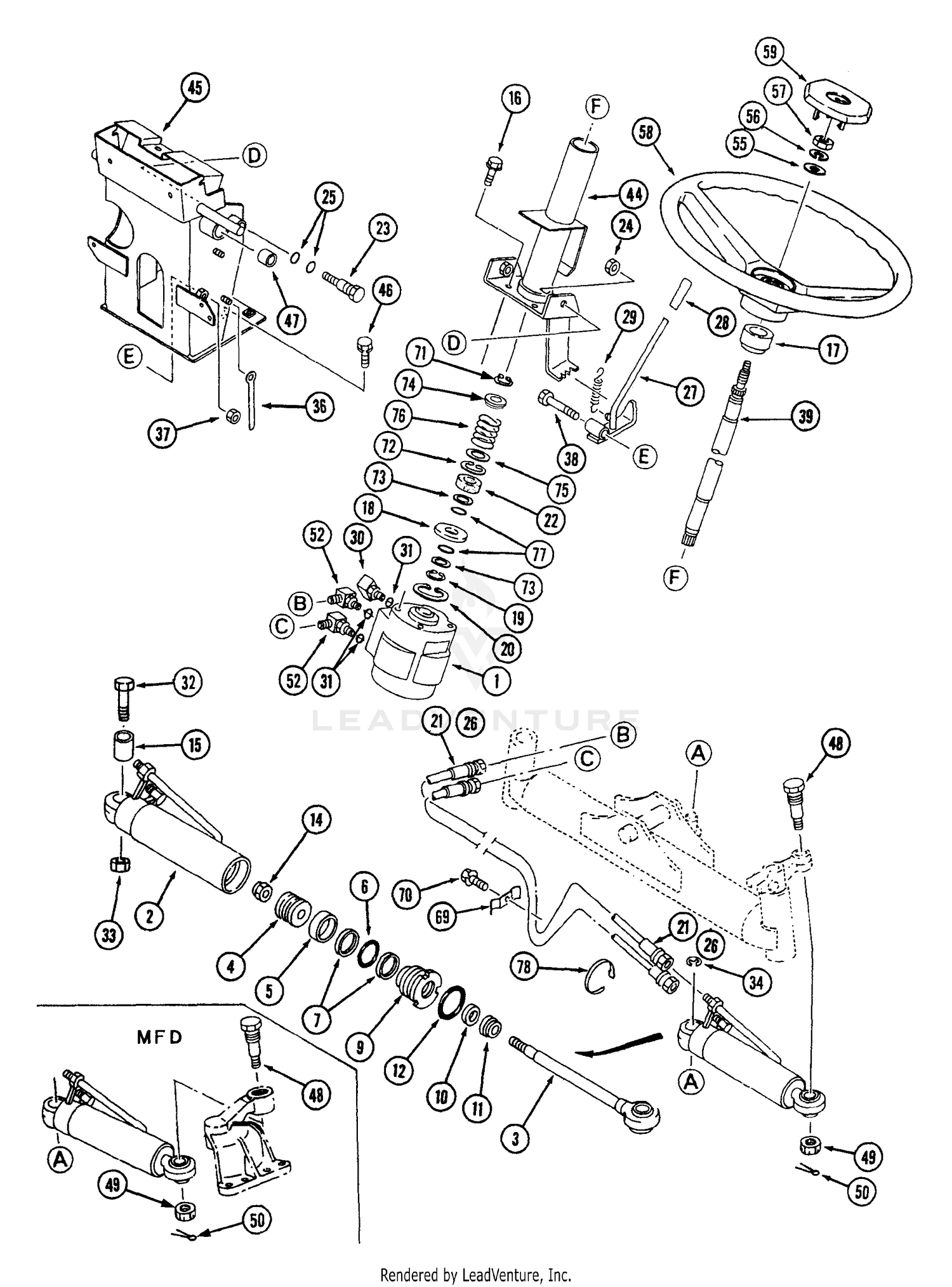

| Ref | Part Number | Description |
|---|
| 1 |
69-3620 |
DISCONTINUED Price: Call Us |
| 1 |
MA-10302268002 |
STEERING UNIT Not Available Price: |
| 2 |
69-3630 |
NUT Price: $39.01 |
| 2 |
MA-19642206AG0 |
TUBE ASSEMBLY Not Available Price: |
| 3 |
69-3640 |
COVER-SERVO Price: $389.32 |
| 3 |
MA-19642207AG0 |
ROD,CYLINDER Not Available Price: |
| 4 |
69-3710 |
GASKET-SERVO Price: $58.74 |
| 4 |
MA-19632208000 |
PISTON Not Available Price: |
| 5 |
69-3610 |
NUT-HEX Price: $1.44 |
| 5 |
MA-19632209100 |
WEAR RING Not Available Price: |
| 6 |
69-3600 |
NUT-HEX Price: $1.89 |
| 6 |
MA-08301100340 |
O-RING Not Available Price: |
| 7 |
69-3590 |
RING-RETAINING Price: $4.15 |
| 7 |
MA-08320100340 |
RING BACK UP Not Available Price: |
| 8 |
69-3580 |
GUIDE-SPRING Price: $142.64 |
| 9 |
69-3130 |
PLUG Price: $62.97 |
| 9 |
MA-19632211000 |
CASE Not Available Price: |
| 10 |
MA-19632212100 |
SEAL ROD Not Available Price: |
| 11 |
MA-19632212200 |
SEAL-DUST Not Available Price: |
| 12 |
69-3230 |
PIN-SPRING Price: $24.22 |
| 12 |
MA-08301100400 |
O-RING Not Available Price: |
| 13 |
69-3370 |
BEARING-NEEDLE Price: $49.67 |
| 14 |
MA-A3530112000 |
NUT Not Available Price: |
| 15 |
MA-07963024250 |
BUSHING Not Available Price: |
| 16 |
MA-F1550110020 |
BOLT,W/SPRING WASH Not Available Price: |
| 17 |
MA-11742201170 |
BUSHING,COLUMN Not Available Price: |
| 18 |
MA-27931515000 |
WASHER Not Available Price: |
| 19 |
MA-07410004001 |
RING, SNAP Not Available Price: |
| 20 |
MA-07400002000 |
RING, SNAP Not Available Price: |
| 22 |
MA-08401022358 |
SEAL, OIL Not Available Price: |
| 23 |
MA-19632257000 |
BOLT Not Available Price: |
| 24 |
69-3250 |
SWASHPLATE-VARIABLE Price: $640.86 |
| 24 |
MA-A3030112002 |
NUT Not Available Price: |
| 25 |
AU193488A1 |
JOURNAL This part replaces 69-3240. Price: $57.15 |
| 25 |
MA-08301100160 |
O-Ring Price: $3.46 |
| 26 |
94-2878 |
PIN Price: $9.76 |
| 26 |
MA-19642213000 |
HOSE Not Available Price: |
| 27 |
76-4590 |
SCREW Price: $5.43 |
| 27 |
MA-19632255AG0 |
LEVER Not Available Price: |
| 28 |
69-3220 |
SCREW Price: $15.55 |
| 28 |
MA-14212284000 |
GRIP Not Available Price: |
| 29 |
69-3200 |
RING-RETAINING Price: $20.29 |
| 29 |
MA-27932754001 |
SPRING Not Available Price: |
| 30 |
69-3190 |
SEAL-LIP Price: $94.91 |
| 30 |
MA-19632259000 |
VALVE, CHECK Not Available Price: |
| 31 |
69-3170 |
RING-RETAINING Price: $11.40 |
| 31 |
MA-08301100140 |
O-RING Not Available Price: |
| 32 |
75-0460 |
BEARING-BALL This part replaces 69-3210. Price: $175.71 |
| 33 |
107-4354 |
COVER-FRONT This part replaces 76-4610. Price: $1,302.74 |
| 34 |
69-3500 |
BEARING-SLEEVE Price: $472.61 |
| 34 |
MA-07420101900 |
RING, SNAP Not Available Price: |
| 35 |
69-3510 |
PIN Price: $29.51 |
| 36 |
69-3470 |
PIN Price: $1.27 |
| 36 |
MA-00502108063 |
CLAMP Not Available Price: |
| 37 |
69-3180 |
DISCONTINUED Price: Call Us |
| 37 |
MA-A3030112002 |
NUT Not Available Price: |
| 38 |
76-4600 |
GASKET-COVER, FRONT Price: $81.78 |
| 38 |
MA-A0520112060 |
BOLT Not Available Price: |
| 39 |
107-4379 |
CYLINDER BLOCK KIT This part replaces 69-3910. Price: $2,151.85 |
| 39 |
MA-19682235000 |
SHAFT, STEERING Not Available Price: |
| 40 |
93-9320 |
PLATE-VALVE, LH Price: $466.03 |
| 41 |
69-3450 |
PIN Price: $3.33 |
| 42 |
69-3820 |
SLEEVE-VALVE, CONTROL Price: $569.45 |
| 43 |
28-3590 |
O-RING Price: $4.60 |
| 44 |
28-3580 |
RING-BACK UP Price: $20.88 |
| 44 |
MA-19642252AG0 |
COLUMN Not Available Price: |
| 45 |
69-3880 |
SPRING-RETURN, NEUTRAL Price: $64.49 |
| 45 |
MA-19642265AG0 |
BRACKET,COLUMN Not Available Price: |
| 46 |
69-3830 |
SPOOL-VALVE, ROTARY Price: $291.51 |
| 46 |
MA-F1550110025 |
BOLT,W/SPRING WASH Not Available Price: |
| 47 |
25-2630 |
RING-BACK UP Price: $3.55 |
| 47 |
MA-07961025200 |
BUSHING Not Available Price: |
| 48 |
69-3890 |
BRACKET-RETURN, NEUTRAL Price: $60.82 |
| 48 |
MA-19632267000 |
BOLT Not Available Price: |
| 49 |
69-3860 |
SCREW Price: $3.87 |
| 49 |
MA-A3130101601 |
NUT Not Available Price: |
| 50 |
69-3870 |
HANDLE-VALVE, CONTROL Price: $60.69 |
| 50 |
MA-05200140032 |
COTTER PIN Not Available Price: |
| 51 |
107-4374 |
WASHER-LOCK This part replaces 69-3900. Price: $0.81 |
| 52 |
69-3840 |
O-RING Price: $1.58 |
| 53 |
69-3650 |
PISTON-SERVO Price: $852.55 |
| 54 |
69-3690 |
BEARING Price: $153.22 |
| 55 |
69-3560 |
O-RING Price: $7.18 |
| 55 |
MA-03500151430 |
WASHER Not Available Price: |
| 56 |
69-3920 |
PISTON RING AND O-RING KIT This part replaces 69-3570. Price: $181.90 |
| 56 |
MA-A3600101402 |
WASHER,SPRING Not Available Price: |
| 57 |
69-3720 |
COVER-SERVO Price: $406.84 |
| 57 |
MA-A3030114002 |
NUT Not Available Price: |
| 58 |
69-3140 |
BRACKET Price: $30.30 |
| 58 |
MA-10302217000 |
WHEEL,STEERING Not Available Price: |
| 59 |
MA-10302218000 |
CENTER PAD Not Available Price: |
| 60 |
69-3080 |
PLUG Price: $40.47 |
| 61 |
69-3150 |
SCREW Price: $2.17 |
| 62 |
69-3070 |
WASHER Price: $0.28 |
| 63 |
25-2630 |
RING-BACK UP Price: $3.55 |
| 64 |
237-22 |
O-RING Price: $2.43 |
| 65 |
69-3800 |
VALVE Price: $39.31 |
| 66 |
69-3810 |
VALVE-BY PASS Price: $148.67 |
| 67 |
69-3780 |
PLUG Price: $47.78 |
| 68 |
237-80 |
O-RING Price: $6.10 |
| 69 |
69-3770 |
SHIM Price: $51.82 |
| 69 |
MA-19632223000 |
CLUMP Not Available Price: |
| 70 |
69-3790 |
SPRING Price: $18.69 |
| 70 |
MA-F1540108020 |
BOLT,W/SPRING WASH Not Available Price: |
| 71 |
69-3760 |
PLUG-SPECIAL Price: $67.15 |
| 71 |
MA-07400102200 |
RING, SNAP Not Available Price: |
| 72 |
110-6342 |
SPRING This part replaces 69-3740. Price: $9.45 |
| 72 |
MA-07410003500 |
RING, SNAP Not Available Price: |
| 73 |
94-9413 |
SCREW Price: $18.13 |
| 73 |
MA-07310002005 |
LINER Not Available Price: |
| 74 |
94-9412 |
SEAL-ADAPTER, SUCTION Price: $129.88 |
| 74 |
MA-19672257000 |
COLLAR Not Available Price: |
| 75 |
93-9321 |
PLUG ASM Price: $98.84 |
| 75 |
MA-19672258000 |
LINER Not Available Price: |
| 76 |
285-17 |
PLUG-PIPE Price: $2.59 |
| 76 |
MA-31223012001 |
SPRING Not Available Price: |
| 77 |
69-3750 |
O-RING Price: $3.33 |
| 77 |
MA-08301100200 |
O-RING Not Available Price: |
| 78 |
69-3730 |
RELIEF VALVE KIT Price: $226.03 |
| 79 |
94-9414 |
ADAPTER-SUCTION Price: $211.04 |
| 80 |
69-3460 |
PLUG-EXPANSION Price: $76.84 |
| 81 |
69-3550 |
PIN Price: $3.66 |
| 83 |
69-3400 |
SCREW Price: $1.29 |
| 84 |
69-3430 |
KEY-WOODRUFF Price: $4.89 |
| 85 |
69-3410 |
ADAPTER-A, FLANGE Price: $516.81 |
| 86 |
69-3420 |
DISCONTINUED Price: Call Us |
| 87 |
69-3440 |
O-RING Price: $16.24 |
| 88 |
69-3540 |
COVER-GEROTOR Price: $538.45 |
| 89 |
69-3390 |
GEROTOR ASM Price: $542.68 |
| 90 |
69-3700 |
GUIDE-SPRING Price: $39.82 |
| 91 |
69-3660 |
SCREW Price: $95.73 |
| 92 |
69-3680 |
STOP Price: $65.27 |
| 93 |
69-3670 |
SPRING-SERVO Price: $194.02 |
| 95 |
92-1352 |
PLUG This part replaces 69-3120. Price: $30.00 |
| 96 |
136-1026 |
PLUG ASM This part replaces 94-9415. Price: $9.75 |
| 502216102 |
502216102 |
PIPE Price: $3.97 |
| 503200260 |
503200260 |
BOLT Price: $3.99 |
| 503716601 |
503716601 |
Price: $2.41 |
| 503716701 |
503905302 |
HEAT SHIELD This part replaces 503716701. Price: $10.99 |
| 503717303 |
503905202 |
MUFFLER This part replaces 503717303. Price: $49.99 |
| 503717401 |
503717401 |
MUFFLER GASKET Price: $5.05 |
| 503798201 |
503798201 |
Price: $2.47 |
| 503798301 |
503905202 |
MUFFLER This part replaces 503798301. Price: $49.99 |
