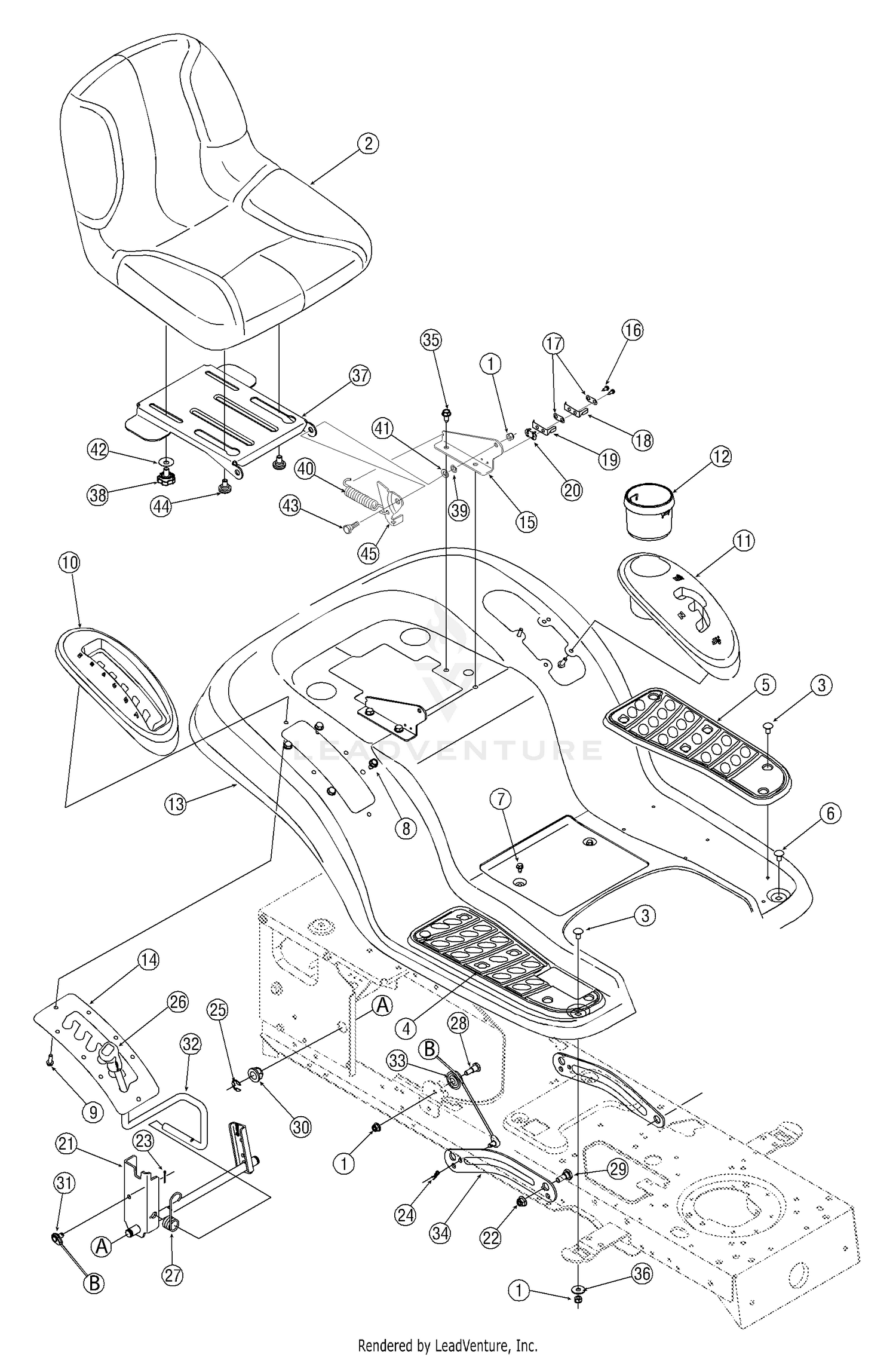

| Ref | Part Number | Description |
|---|
| 1 |
712-04063 |
Nut, Flange Lock, 5/16-18, GrF, Nylon Price: $3.56 |
| 2 |
757P06245 |
MEDIUM BACK SEAT This part replaces 757-04009A. Price: $196.09 |
| 3 |
726-3046 |
Ratchet Clip Price: $3.71 |
| 4 |
735-0656 |
FOOT PAD (RH) Not Available Price: |
| 4 |
735-0672 |
FOOT PAD (RH) Not Available Price: |
| 5 |
735-0657 |
FOOT PAD (LH) Not Available Price: |
| 5 |
735-0673 |
FOOT PAD (LH) Not Available Price: |
| 6 |
710-0260A |
Bolt, Carriage, 5/16-18,.62, Gr1 Price: $3.71 |
| 7 |
710-0599 |
Screw, 1/4-20, 0.500 Price: $3.86 |
| 8 |
710-0726 |
Screw, 5/16-12, 0.750, Super Bronco Price: $3.82 |
| 8 |
710-1611B |
Screw, 5/16-18 x.750, Bronco Price: $5.94 |
| 9 |
710-0895 |
Screw, 1/4-15, 0.750, Super Bronco Only Price: $5.82 |
| 10 |
731-06795 |
Cover, Lift Lever This part replaces 731-1990. Price: $21.39 |
| 11 |
931-2104C |
Shift Lever Cover w/Cup Holder This part replaces 731-2104C. Price: $30.91 |
| 12 |
731-04591A |
Cup Holder, Bronco Only Price: $13.84 |
| 13 |
783-04314A |
FENDER Not Available Price: |
| 13 |
783-04333A |
FENDER - 4 STYLE Not Available Price: |
| 14 |
783-0677B-0637 |
LIFT ADJUSTMENT BRACKET Not Available This part replaces 783-0677. Price: |
| 14 |
783-1010A-0637 |
DECK PLATE Not Available This part replaces 783-1010A. Price: |
| 15 |
783-1489C |
Seat Mounting Bracket This part replaces 783-1489A. Price: $17.99 |
| 16 |
710-0227 |
Screw, #8-18 x.50 Price: $3.90 |
| 17 |
726-0279 |
Plate, Insulator Price: $3.22 |
| 18 |
925-1303 |
Outer Seat SPring This part replaces 725-1303. Price: $5.58 |
| 19 |
725-1439 |
Spring Switch, Inner Price: $7.18 |
| 20 |
726-0278 |
Plate, Insulator Boss Price: $5.95 |
| 22 |
712-04065 |
Nut, Flange Lock, 3/8-16, Gr F, Nylon Price: $3.68 |
| 23 |
714-0104 |
Pin, Cotter,.072 Dia. X. 1.13 Price: $3.90 |
| 24 |
714-0111 |
Pin, Cotter, 3/32, 1.0 Price: $4.20 |
| 25 |
716-0106A |
Ring, E Type,.625 Dia. Price: $4.42 |
| 26 |
720-0311 |
Grip, Handle, 1/2 Price: $13.26 |
| 27 |
732-0874 |
Spring, Torsion Price: $4.02 |
| 28 |
738-0138A |
Screw, 5/16-18 x.620 Gr2 Price: $5.81 |
| 29 |
738-04130A |
Shoulder Screw, .625 x .175, 3/8-16 This part replaces 738-04130. Price: $8.20 |
| 30 |
941-0225 |
FLANGE BEARING This part replaces 741-0225. Price: $6.55 |
| 31 |
746-0968 |
Cable, Lift, 16.16 Price: $18.10 |
| 32 |
747-04155 |
LIFT HANDLE Not Available Price: |
| 33 |
756-1154 |
Pulley, Roller Price: $6.63 |
| 34 |
783-04494C |
DECK LIFT ARM (RH) This part replaces 783-04494. Price: $17.72 |
| 34 |
783-04711 |
Arm, Lift - LH Price: $18.71 |
| 35 |
710-0726 |
Screw, 5/16-12, 0.750 Price: $3.82 |
| 36 |
736-3078 |
Washer, Flat,.344 x 1.0 x.063 Price: $3.95 |
| 37 |
783-04081A |
Seat Pivot Bracket Price: $26.56 |
| 38 |
720-04009A |
SEAT ADJUSTMENT KNOB This part replaces 720-04009. Price: $14.52 |
| 39 |
726-0201 |
Nut, Speed,.3125 ID Price: $6.01 |
| 40 |
732-1184 |
Spring, Extension,.84 Dia. x 4.6 Price: $10.23 |
| 41 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 42 |
936-0101 |
Washer, Flat, .406 x 1.0 x .030 Not Available This part replaces 736-0101. Price: |
| 43 |
738-0296 |
Screw, Shoulder,.437 x.268, 5/16-18 Price: $3.93 |
| 44 |
738-04012C |
Shoulder Screw, .625 x .145, 3/8-16 This part replaces 738-04012. Price: $4.75 |
