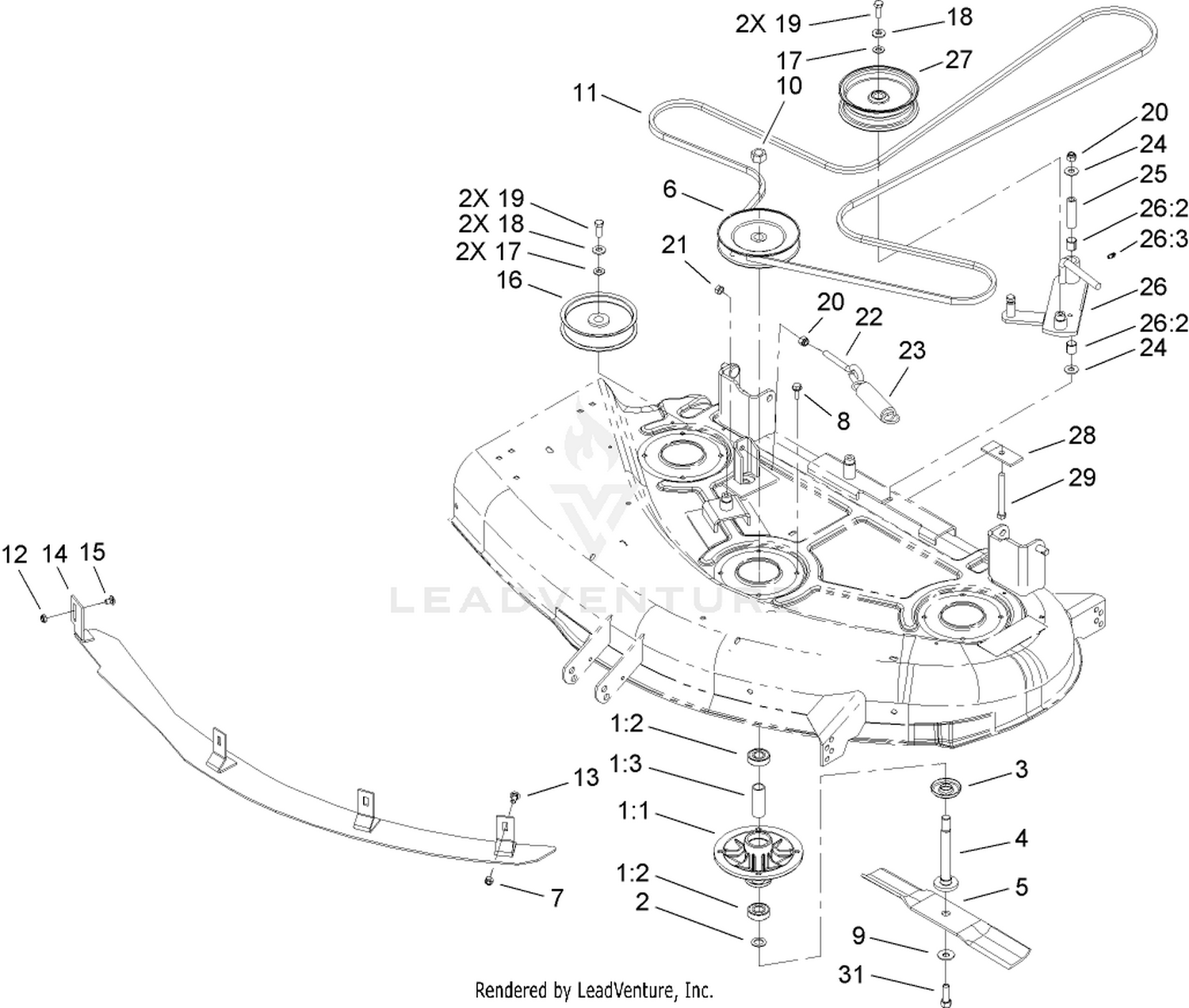

| Ref | Part Number | Description |
|---|
| 2 |
80-4380 |
SPACER Price: $4.08 |
| 3 |
80-4360 |
SHIELD-BEARING Price: $12.11 |
| 4 |
80-4341 |
SHAFT-SPINDLE Price: $40.48 |
| 5 |
54-0010-03 |
BLADE Price: $22.97 |
| 6 |
100-7321 |
PULLEY ASM Price: $111.00 |
| 7 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 8 |
32144-41 |
SCREW-TAPTITE Price: $4.79 |
| 9 |
3290-465 |
WASHER-BELLEVILLE Price: $2.89 |
| 10 |
3219-6 |
NUT-HEX Price: $2.78 |
| 11 |
105-6963 |
BELT-V Price: $89.73 |
| 12 |
3296-47 |
NUT-LOCK, NI Price: $3.59 |
| 13 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 14 |
93-9950-03 |
BAFFLE Price: $94.92 |
| 15 |
3230-19 |
BOLT-CARR Price: $5.59 |
| 16 |
1-613098 |
PULLEY-IDLER Price: $33.36 |
| 17 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 18 |
98-5975 |
WASHER-BELLEVILLE Price: $3.09 |
| 19 |
323-6 |
SCREW-HH Price: $0.66 |
| 20 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 21 |
3217-7 |
NUT-HEX Price: $0.28 |
| 22 |
94-2547 |
BOLT-EYE Price: $15.17 |
| 23 |
105-6992 |
SPRING-EXTENSION Price: $21.88 |
| 24 |
1-809107 |
WASHER-HARDENED Price: $3.25 |
| 25 |
1-603384 |
BUSHING-PIVOT, IDLER Price: $8.74 |
| 26 |
105-7010 |
IDLER ARM ASM Price: $217.31 |
| 27 |
116-4669 |
IDLER-PULLEY, FLAT This part replaces 99-8912. Price: $54.77 |
| 28 |
1-800805 |
SCREW-HH Price: $2.42 |
| 29 |
104-8037-03 |
PLATE-BOLT, RETAINER Price: $3.42 |
