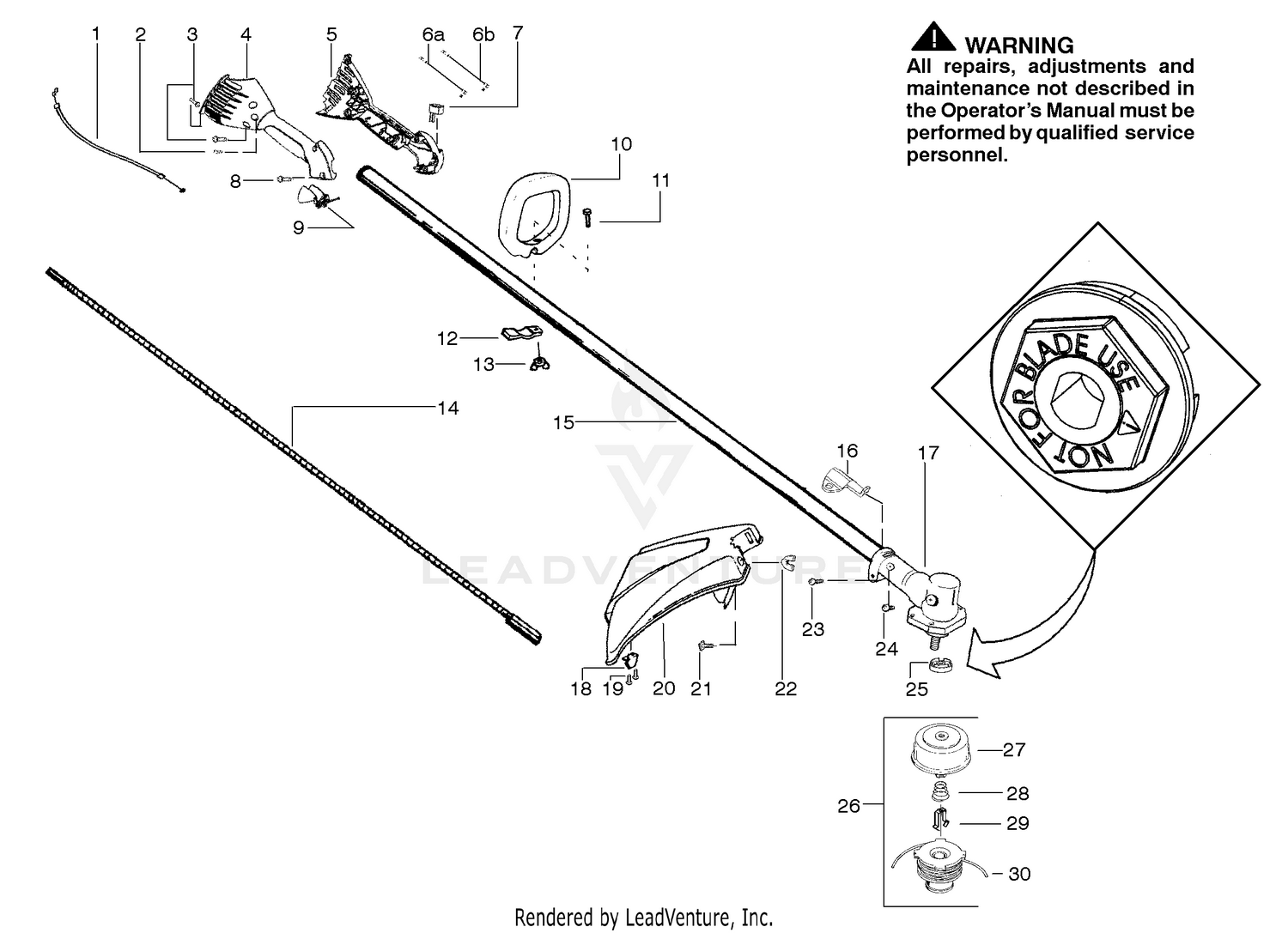

Handle & Shaft Assembly
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530054942 | Assy-Throttle cable Price: $3.99 |
| 2 | 530015805 | Screw Price: $1.99 |
| 3 | 530015886 | Screw Price: $1.99 |
| 4 | 530054837 | Hsg.-Throttle Right Price: $6.99 |
| 5 | 530071553 | Kit-Left Throttle Hsg. Price: $7.99 |
| 6A | 530054943 | Assy-Wire lower Price: $1.99 |
| 6B | 530055724 | Assy-Wire upper Price: $4.99 |
| 7 | 530071356 | Kit-Switch Price: $4.99 |
| 8 | 530015886 | Screw Price: $1.99 |
| 9 | 530054940 | Trigger-Throttle Price: $1.99 |
| 10 | 530055699 | Assy-Handle Assist Price: $11.99 |
| 11 | 530015820 | Bolt Price: $1.99 |
| 12 | 530088416 | Clamp-Handle Assist Price: $2.99 |
| 13 | 530091373 | Nut This part replaces 530016118. Price: $1.99 |
| 14 | 530095963 | Shaft-Flex Price: $17.99 |
| 15 | 530055355 | Assy-Driveshaft Price: $37.99 |
| 16 | 530095812 | Bracket-Shield Price: $1.99 |
| 17 | 530071584 | Kit-Gearbox Price: $49.99 |
| 18 | 530052285 | Limiter-Line Price: $1.99 |
| 19 | 530015805 | Screw Price: $1.99 |
| 21 | 530015820 | Bolt Price: $1.99 |
| 22 | 530091373 | Nut This part replaces 530016118. Price: $1.99 |
| 23 | 530016014 | Screw Price: $1.99 |
| 24 | 530016371 | Screw Price: $1.99 |
| 25 | 530095814 | Non-Blade Dust cup Price: $4.99 |
| 26 | 530053244 | TRIMMER HEAD This part replaces 530056195. Price: $20.90 |
| 27 | 530095772 | Assy. - Hub/Arbor (3/8lh , 2x) Price: $5.42 |
| 28 | 530053241 | Spring - Return Price: $1.99 |
| 29 | 530401957 | Retainer - Spool Price: $1.99 |
| 30 | 952711551 | Accy--Spool w/Line This part replaces 952711605. Price: $8.95 |
