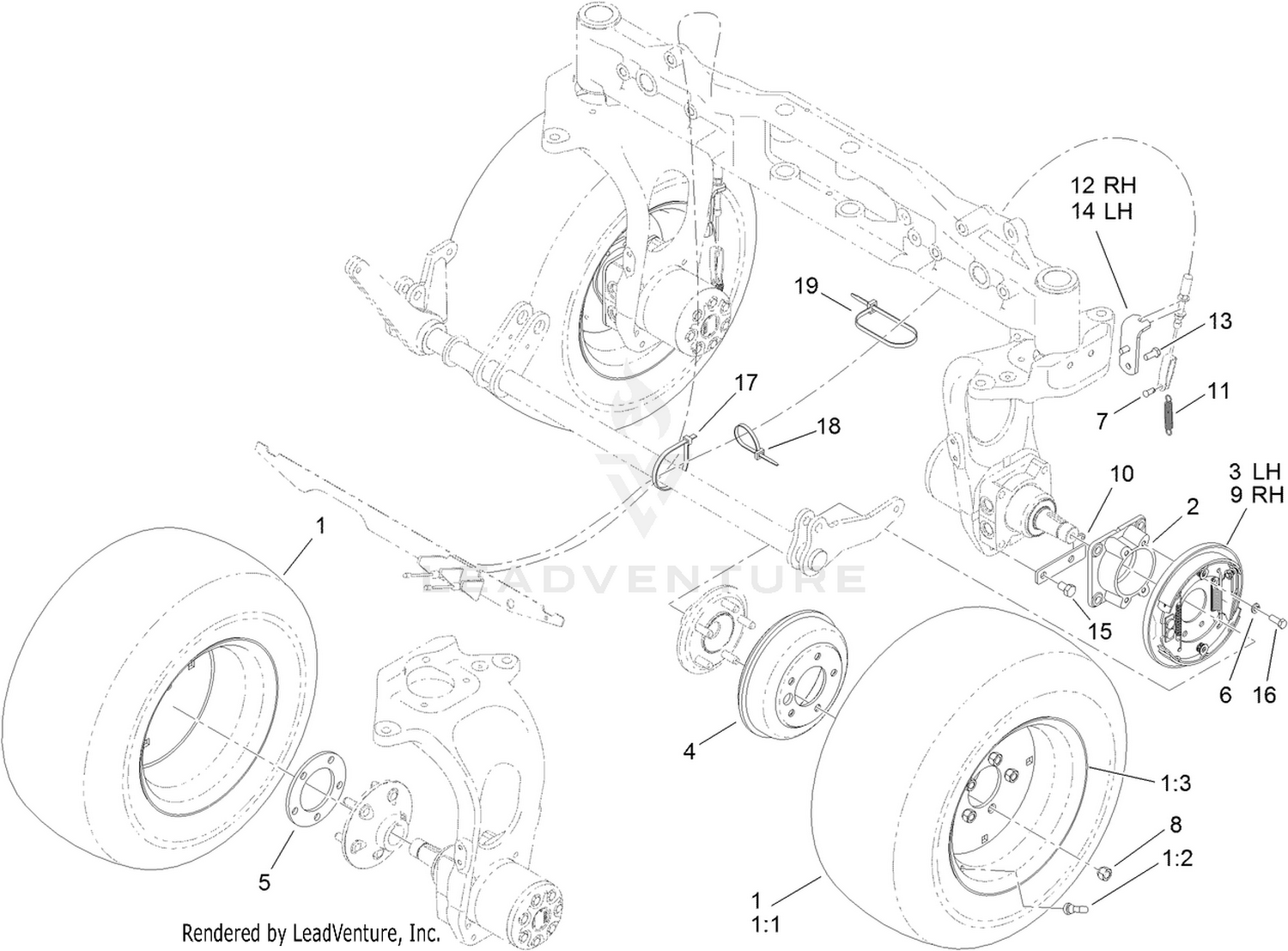

| Ref | Part Number | Description |
|---|
| 1 |
117-2900 |
TIRE AND WHEEL ASM Price: $361.51 |
| 2 |
120-0248-03 |
ADAPTER-BRAKE Price: $87.89 |
| 3 |
120-0235 |
LH BRAKE ASM Price: $496.71 |
| 4 |
114-8864 |
DRUM-BRAKE Price: $248.55 |
| 5 |
115-0199-0P |
SPACER-WHEEL This part replaces 115-0199-03. Price: $26.81 |
| 6 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 7 |
283-62 |
PIN-CLEVIS Price: $0.61 |
| 8 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 9 |
120-0233 |
RH BRAKE ASM Price: $496.71 |
| 10 |
115-0132 |
BRACKET-SPRING, RETURN Price: $17.04 |
| 11 |
87-4020 |
SPRING-EXTENSION Price: $17.01 |
| 12 |
119-1352-03 |
BRACKET-BRAKE CABLE, RH Price: $14.53 |
| 13 |
325-2 |
SCREW-HH Price: $1.02 |
| 14 |
119-1449-03 |
BRACKET-BRAKE CABLE, LH Price: $12.21 |
| 15 |
323-5 |
SCREW-HH Price: $0.41 |
| 16 |
323-6 |
SCREW-HH Price: $0.66 |
| 17 |
3334-945 |
TIE-CABLE Price: $0.43 |
| 18 |
3290-378 |
TIE-CABLE Price: $0.79 |
