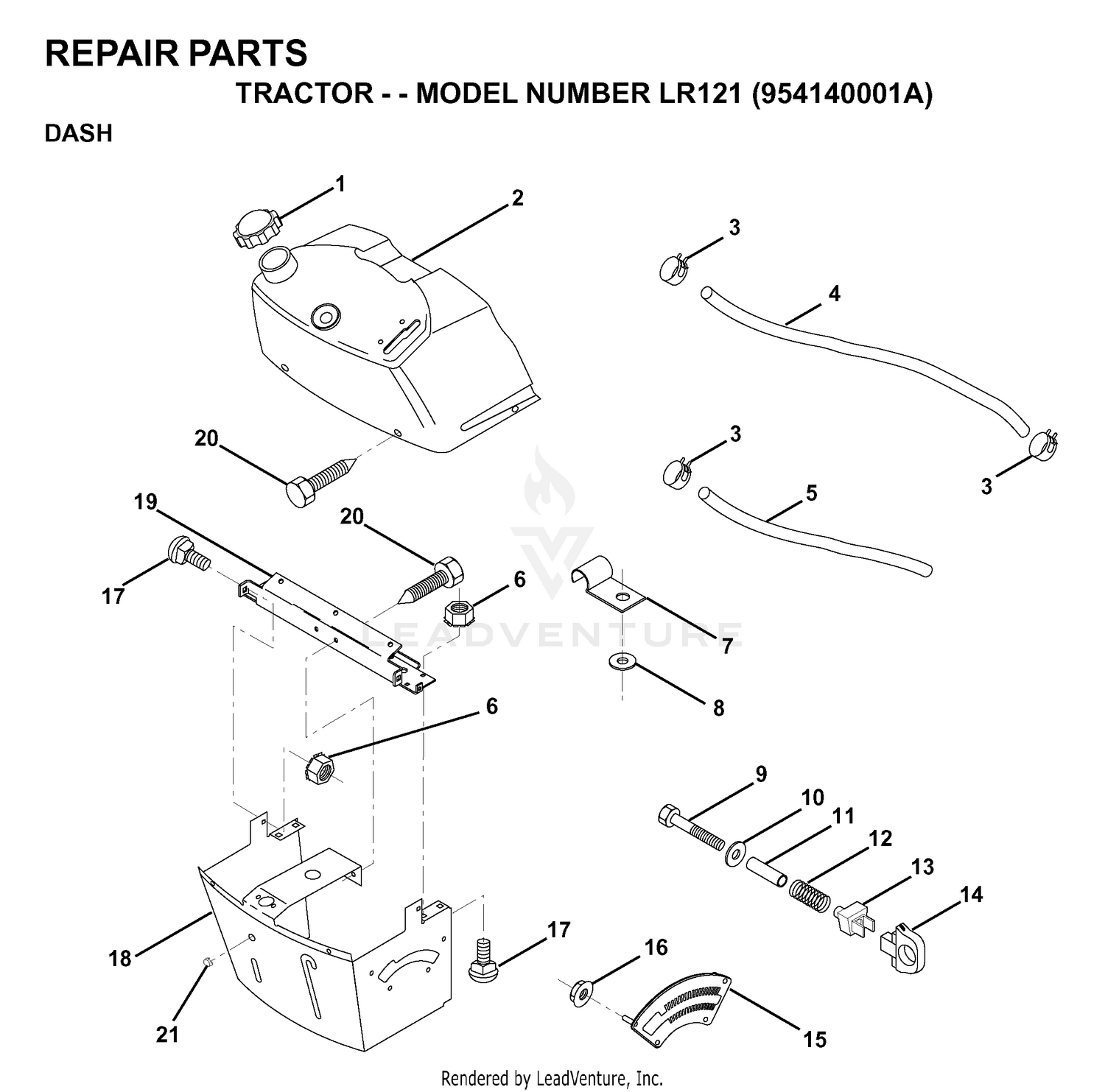

| Ref | Part Number | Description |
|---|
| 1 |
532142187 |
CAP.FUEL.GREY Price: $9.99 |
| 2 |
532138394 |
TANK ASM DASH LR Price: $101.99 |
| 2 |
93-7977 |
SEAL Price: $74.14 |
| 3 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 3 |
93-7978 |
ROD-PULL Price: $171.95 |
| 4 |
532000295 |
FUEL LINE This part replaces 532008544. Price: $5.74 |
| 4 |
93-7983 |
PIN-CLEVIS Price: $3.19 |
| 5 |
532008548 |
FUEL LINE T Price: $6.99 |
| 5 |
93-7980 |
LINK Price: $13.85 |
| 6 |
873640400 |
Nut, Keps Blk Hex 1/4-20 UNC Price: $2.99 |
| 6 |
93-7979 |
PIN-HITCH Price: $1.70 |
| 7 |
93-7986 |
DISC-STATIONARY Price: $26.25 |
| 8 |
104-4278 |
DISC-ROTATING Price: $55.70 |
| 8 |
596204201 |
Washers This part replaces 819091216. Price: $2.99 |
| 9 |
874760432 |
BOLT.HEX.FINISHED.1/4-20 This part replaces 874760428. Price: $7.99 |
| 9 |
93-7976 |
RING-RETAINING Price: $12.48 |
| 10 |
596135301 |
Washers This part replaces 819091413. Price: $2.99 |
| 10 |
93-7984 |
GASKET Price: $20.21 |
| 11 |
104-4279 |
ACTUATOR-ROTATING Price: $332.95 |
| 11 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 12 |
532003720 |
SPRING.COMPRESSION Price: $4.99 |
| 12 |
93-7987 |
SPRING-EXTENSION Price: $9.47 |
| 13 |
532126450 |
KNOB HGT RETAINER Price: $3.99 |
| 13 |
93-7985 |
BALL Price: $9.39 |
| 14 |
353-990 |
PLUG ASM Price: $10.01 |
| 14 |
532126115 |
KNOB Price: $3.99 |
| 15 |
532122023 |
ADJUSTER QUAD Price: $9.99 |
| 16 |
532124346 |
NUT.PUSH.3/16 Price: $6.99 |
| 17 |
872110404 |
BOLT Price: $7.99 |
| 18 |
532130745 |
SUPT ASSY DASH Price: $23.04 |
| 19 |
532134744 |
CROSS BRACE Price: $9.17 |
| 20 |
817060408 |
SCREW Price: $4.99 |
| 21 |
532134014 |
PLUG DOME Price: $2.99 |
