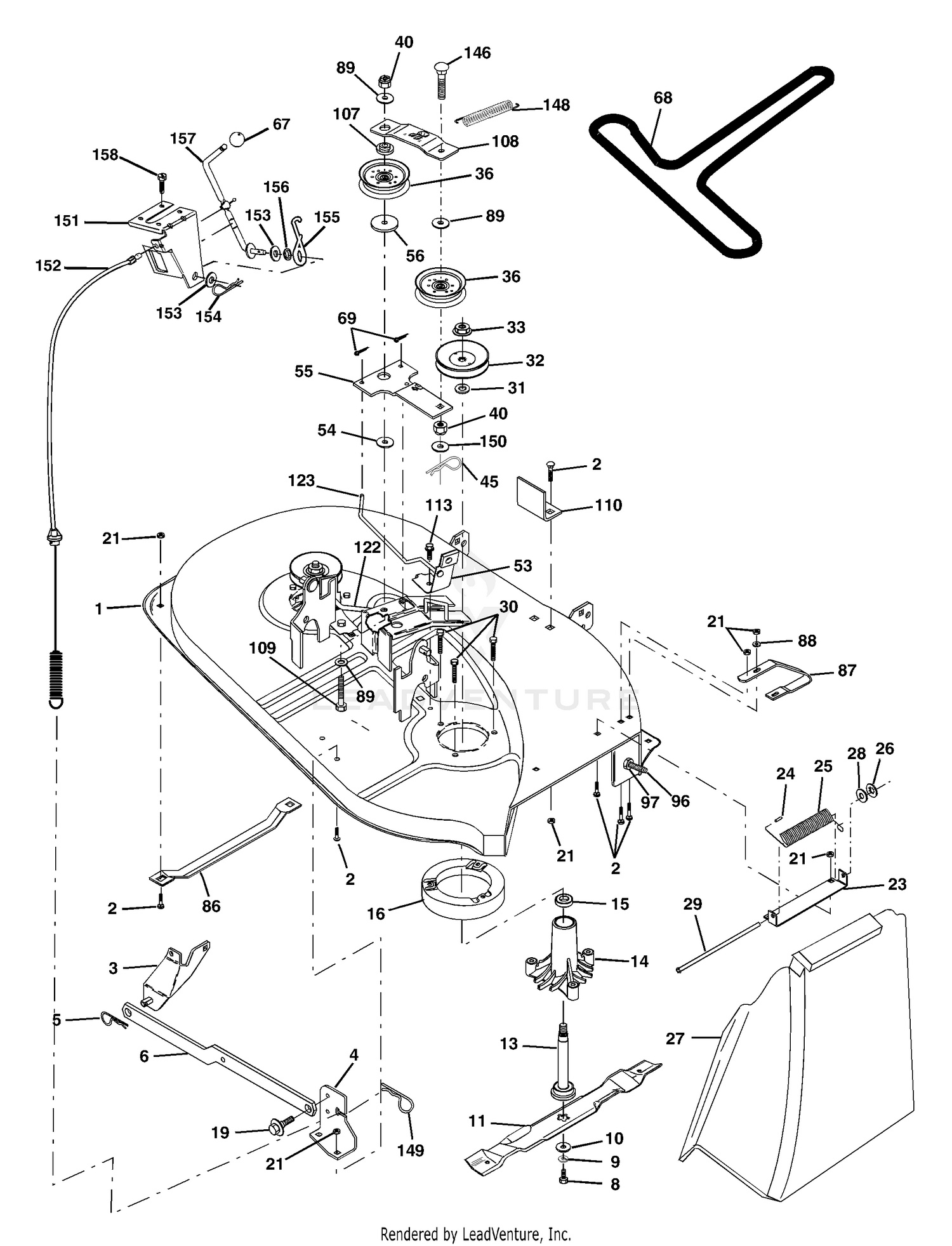

| Ref | Part Number | Description |
|---|
| 1 |
170280 |
Mower Housing Assembly Price: Call Us |
| 1 |
233-39 |
KNOB-CONTROL Price: $16.12 |
| 2 |
72140506 |
Bolt Carriage 5/16-18 x 3/4 Price: Call Us |
| 2 |
74-3190 |
LEVER-LIFT Price: $102.52 |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar Price: Call Us |
| 4 |
169970 |
Bracket Deck Sway Bar 38"/42" Price: Call Us |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 5 |
60-5690 |
CLIP Price: $3.58 |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 6 |
58-1520 |
PIN Price: $12.55 |
| 7 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 8 |
850857 |
Bolt 3/8-24 x 1.25 Grade 8 Price: Call Us |
| 9 |
10030600 |
Washer, Lock 3/8 Price: Call Us |
| 9 |
63-4800 |
MOTOR-SPOOL, VALVE Price: $2,291.65 |
| 10 |
140296 |
Washer, Hardened Price: Call Us |
| 10 |
340-88 |
FITTING-STRAIGHT Price: $11.24 |
| 12 |
58-7190 |
SPRING Price: $19.74 |
| 13 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 14 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 16 |
174493 |
Stripper, Vented Mower Deck Price: Call Us |
| 16 |
58-3830 |
PIN-CLEVIS Price: $1.84 |
| 17 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 18 |
58-4450 |
LEVER Price: $81.85 |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 19 |
233-10 |
KNOB-LEVER Price: $47.39 |
| 20 |
58-4460 |
CLEVIS Price: $112.62 |
| 21 |
58-1570 |
LINK Price: $15.74 |
| 21 |
73680500 |
Nut Price: Call Us |
| 22 |
3272-1 |
PIN-COTTER Price: $0.25 |
| 23 |
137607 |
Bracket, Mower Deflector Price: Call Us |
| 23 |
60-0550 |
BUSHING Price: $16.69 |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 24 |
3217-6 |
NUT-HEX Price: $1.19 |
| 25 |
123713X |
Spring, Torsion, Deflector Price: Call Us |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 26 |
32121-118 |
PIN-ROLL Price: $0.36 |
| 27 |
106736X428 |
Shield, Deflector Price: Call Us |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Gauge Price: Call Us |
| 28 |
58-5520 |
VALVE-RELIEF, ADJUSTABLE Price: $410.76 |
| 29 |
106735X |
Rod, Hinge Price: Call Us |
| 29 |
322-9 |
SCREW-HH Price: $3.09 |
| 30 |
173984 |
Screw Thdrol. Price: Call Us |
| 31 |
129963 |
Washer, Spacer Price: Call Us |
| 31 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 32 |
153532 |
Pulley, Mandrel Price: Call Us |
| 33 |
178342 |
Nut, Toplock Price: Call Us |
| 33 |
59-7130 |
KNOB-CONTROL, SPEED Price: $25.40 |
| 34 |
58-1510 |
SHAFT Price: $74.91 |
| 35 |
59-7910 |
GROMMET Price: $2.07 |
| 36 |
131494 |
Pulley, Idler, Flat Price: Call Us |
| 36 |
60-2110 |
PIN Price: $1.42 |
| 38 |
340-80 |
FITTING-STR Price: $47.82 |
| 40 |
58-2150 |
BLOCK-MANIFOLD Price: $325.81 |
| 40 |
73680600 |
Nut, Crownlock 3/8-16 Unc Price: Call Us |
| 41 |
66-5410 |
ORIFICE (.109) Price: $24.26 |
| 44 |
340-7 |
FITTING-STRAIGHT Price: $14.00 |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
43-5930 |
WASHER-LOCK, SPRING Price: $0.75 |
| 47 |
33113-016 |
SCREW-HH Price: $0.34 |
| 48 |
340-17 |
FITTING-ELBOW, 90 DEG Price: $42.29 |
| 49 |
58-3810 |
PIN-CLEVIS Price: $6.22 |
| 50 |
58-1560 |
LINK Price: $7.20 |
| 51 |
48-7890 |
NUT-HEX Price: $0.25 |
| 52 |
340-86 |
FITTING-TEE Price: $35.23 |
| 53 |
130840 |
Brake Assembly Price: Call Us |
| 53 |
93-7768 |
COUPLING Price: $123.16 |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 54 |
52-6430 |
WASHER Price: $0.25 |
| 55 |
133840 |
Idler Arm Assembly Price: Call Us |
| 55 |
66-5860 |
FITTING-ELBOW, 45 DEG Price: $92.86 |
| 56 |
165723 |
Spacer, Retainer Price: Call Us |
| 56 |
58-5490 |
VALVE-CONTROL, FLOW Price: $1,092.55 |
| 57 |
340-3 |
FITTING-STRAIGHT Price: $10.42 |
| 59 |
58-1540 |
SPACER-NYLON Price: $11.85 |
| 60 |
33113-050 |
SCREW-HH Price: $0.62 |
| 62 |
59-7410 |
FITTING-DIAGNOSTIC Price: $36.39 |
| 63 |
353-947 |
CAP-DUST, RUBBER Price: $7.73 |
| 64 |
321-3 |
SCREW-HH Price: $0.28 |
| 65 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 66 |
3217-5 |
NUT-HEX Price: $0.25 |
| 67 |
106932X |
Knob Price: Call Us |
| 67 |
63-4690-03 |
BRACKET-VALVE Price: $23.58 |
| 68 |
144200 |
V-Belt, 42" Mower Price: Call Us |
| 68 |
3296-8 |
NUT-HEX Price: $1.29 |
| 69 |
340-87 |
FITTING-ELBOW, 45 DEG Price: $18.39 |
| 69 |
76020312 |
Pin, Cotter 3/32 x 3/4 Price: Call Us |
| 70 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 71 |
321-11 |
SCREW-HH Price: $0.36 |
| 72 |
63-4700 |
VALVE-FLOW, REGULATOR Price: $295.76 |
| 76 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 77 |
92-9258 |
ADAPTER-CHECK Price: $125.92 |
| 79 |
86-5480 |
NIPPLE-TEST Price: $48.77 |
| 81 |
340-159 |
FITTING-HYD, 90 DEG Price: $55.33 |
| 86 |
7631J |
Runner, LH Price: Call Us |
| 87 |
128772 |
Runner, RH Price: Call Us |
| 88 |
19111216 |
Washer 11/32 x 3/4 x 16 Ga Price: Call Us |
| 89 |
19131612 |
Washer 13/32 x 1 x 12 Ga. Price: Call Us |
| 96 |
74930620 |
Bolt 3/8-16 x 1-1/4 Mulcher Price: Call Us |
| 97 |
73930600 |
Nut Centerlock 3/8-16 Unc Price: Call Us |
| 107 |
133502 |
Spacer Retainer Price: Call Us |
| 108 |
133503 |
Stiffener, Idler Arm Price: Call Us |
| 109 |
74760640 |
Bolt, Hex Hd 3/8-16 x 2-1/2 Price: Call Us |
| 110 |
142587 |
Upstop Deck Front 38" Price: Call Us |
| 113 |
17060512 |
Screw 5/16-1/ x 3/4 Price: Call Us |
| 122 |
131289 |
Rod, Brake LH Price: Call Us |
| 123 |
169971 |
Rod, Brake RH Price: Call Us |
| 146 |
165891 |
Bolt Carriage Idler Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091216 |
Washer 9/32 x 3/4 x 16 Ga. Price: Call Us |
| 151 |
169670 |
Bracket Clutch Cable Price: Call Us |
| 152 |
172758 |
Clutch Cable 38"/46" Price: Call Us |
| 153 |
169674 |
Washer Flat 3/8" Type B Price: Call Us |
| 154 |
169675 |
Spring Retainer Price: Call Us |
| 155 |
169671 |
Spring Retention LVR CLTCH CAB Price: Call Us |
| 156 |
169672 |
Spacer Clutch Cable Price: Call Us |
| 157 |
169669 |
Rod Clutch Cable 3/8" Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
