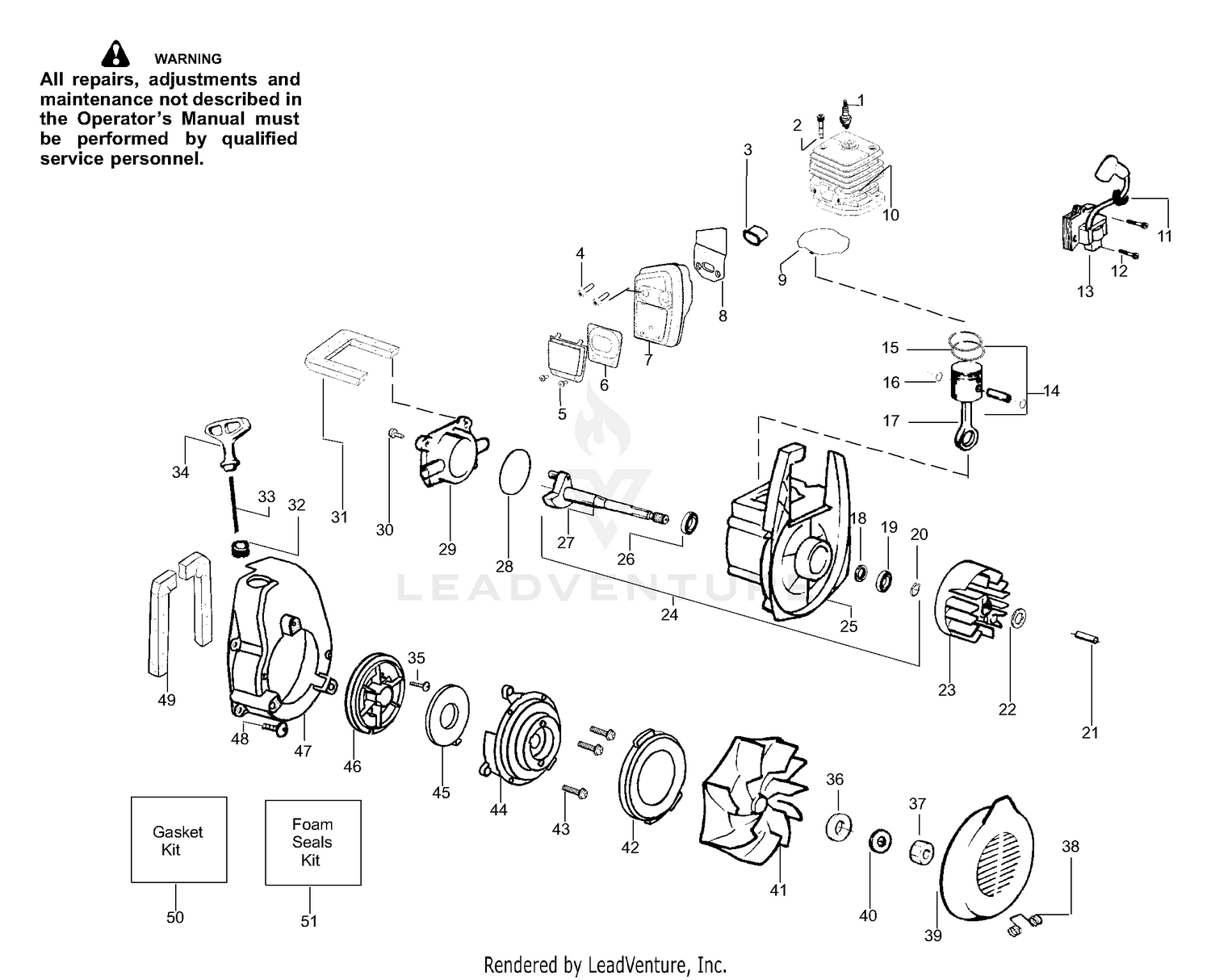

| Ref | Part Number | Description |
|---|
| 1 |
323-6 |
SCREW-HH Price: $0.66 |
| 1 |
952030249 |
Spark Plug (RCJ-6Y) Price: $3.99 |
| 2 |
530015953 |
Screw Price: $1.99 |
| 2 |
94-2703 |
PLUG Price: $1.86 |
| 3 |
112-6967 |
O-RING Price: $2.70 |
| 3 |
530055191 |
Insulator-Heat Price: $1.99 |
| 4 |
106-5363 |
SHAFT-ADJUSTER Price: $41.05 |
| 4 |
530016387 |
Screw Price: $1.99 |
| 5 |
106-5344 |
BUSHING-FLANGE, KEYED Price: $2.37 |
| 5 |
530015241 |
Screw Price: $1.99 |
| 6 |
114-9396 |
CAPSCREW-HH Price: $2.22 |
| 7 |
99-2097 |
DETENT Price: $12.71 |
| 8 |
119-4164 |
WASHER-WAVE This part replaces 106-5335. Price: $2.73 |
| 8 |
530071458 |
Gasket-Baffle (kit) Price: $5.99 |
| 9 |
32120-93 |
RING-RETAINING Price: $2.49 |
| 9 |
530071458 |
Gasket-Cylinder (kit) Price: $5.99 |
| 10 |
137-6132 |
SCREW-ADJUSTER, BEDBAR This part replaces 99-2096. Price: $32.54 |
| 10 |
530071457 |
Kit-Cylinder Price: $11.99 |
| 11 |
530019182 |
Grommet-Ign. Module Price: $1.99 |
| 11 |
99-2098 |
WASHER Price: $7.01 |
| 12 |
119-4156 |
SPRING-COMPRESSION This part replaces 99-3755. Price: $0.91 |
| 12 |
530016357 |
Screw-Ignition Module Price: $1.99 |
| 13 |
33025-00 |
NUT-LOCK, NI Price: $0.54 |
| 13 |
530035505 |
Ignition Module Price: $29.99 |
| 15 |
107-3273-01 |
BEDBAR Price: $303.02 |
| 15 |
545154001 |
RING PISTON This part replaces 530055120. Price: $1.99 |
| 16 |
119-4151 |
SCREW-BEDKNIFE This part replaces 57-4910. Price: $0.41 |
| 16 |
530015162 |
Retainer-Piston Pin Price: $1.99 |
| 17 |
137-6094 |
BEDKNIFE-EDGEMAX (RM 22IN) This part replaces 108-9095. Price: $166.88 |
| 17 |
530049817 |
CONNECTING ROD ASSY This part replaces 530069945. Price: $6.99 |
| 18 |
530019264 |
Seal-Crankcase Price: $2.99 |
| 19 |
530055728 |
Bearing-Outer Price: $6.99 |
| 20 |
530015941 |
Retainer Ring-C'chaft Price: $1.99 |
| 21 |
530016190 |
Spacer-Flywheel Price: $2.99 |
| 21 |
61-1950 |
WASHER-PLASTIC Price: $0.55 |
| 22 |
530015149 |
Washer Price: $1.99 |
| 22 |
56-9520 |
BUSHING-FLANGED Price: $2.15 |
| 23 |
530047534 |
FLYWHEEL ASSY This part replaces 530039209. Price: $22.99 |
| 23 |
69-8980 |
WASHER Price: $0.58 |
| 24 |
106-9623 |
BOLT-BEDBAR Price: $18.27 |
| 25 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 26 |
323-12 |
SCREW-HH Price: $1.14 |
| 26 |
530032125 |
Bearing-Inner Price: $11.99 |
| 27 |
108-4269-01 |
WEIGHT Price: $146.07 |
| 27 |
530012452 |
Assy-Crankshaft Price: $24.99 |
| 28 |
107-2954 |
NUT-ADJUSTER, BEARING Price: $17.63 |
| 28 |
530071458 |
O-ring-C/case (kit) Price: $5.99 |
| 29 |
530012443 |
Cover-Crankcase Price: $5.99 |
| 29 |
93-2489 |
BEARING Price: $24.37 |
| 30 |
107-4028 |
SEAL-GREASE Price: $21.51 |
| 30 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 31 |
530071459 |
Foam-219mm (kit) Price: $4.99 |
| 32 |
137-8433 |
REEL+,7IN FWY(22)11 BLD This part replaces 108-9074. Price: $671.21 |
| 32 |
530029182 |
Eyelet-Flange Price: $1.99 |
| 33 |
530071467 |
Kit-Rope Price: $4.99 |
| 34 |
530054834 |
Handle-Starter Price: $1.99 |
| 35 |
530016326 |
Screw-Rope Price: $1.99 |
| 36 |
530016279 |
Washer-Flat Price: $1.99 |
| 37 |
530626605 |
Nut Price: $1.99 |
| 38 |
530402043 |
Spring-Return Cover Price: $2.99 |
| 39 |
530049313 |
Inlet Door Price: $4.99 |
| 40 |
530016240 |
Washer-Belleville Price: $1.99 |
| 41 |
530069817 |
Assy-Impeller Price: $12.99 |
| 42 |
530056625 |
Seal-Ring Price: $3.99 |
| 43 |
530016349 |
Screw Price: $1.99 |
| 44 |
530055101 |
Housing-Pulley Price: $6.99 |
| 45 |
545008011 |
KIT STARTER SPRING This part replaces 530042086. Price: $5.99 |
| 46 |
545150201 |
PULLEY STARTER This part replaces 530071466. Price: $8.99 |
| 47 |
530055102 |
Fan Housing Price: $14.99 |
| 48 |
530016386 |
SCREW This part replaces 530015810. Price: $5.99 |
| 49 |
530071459 |
Foam-365mm (kit) Price: $4.99 |
