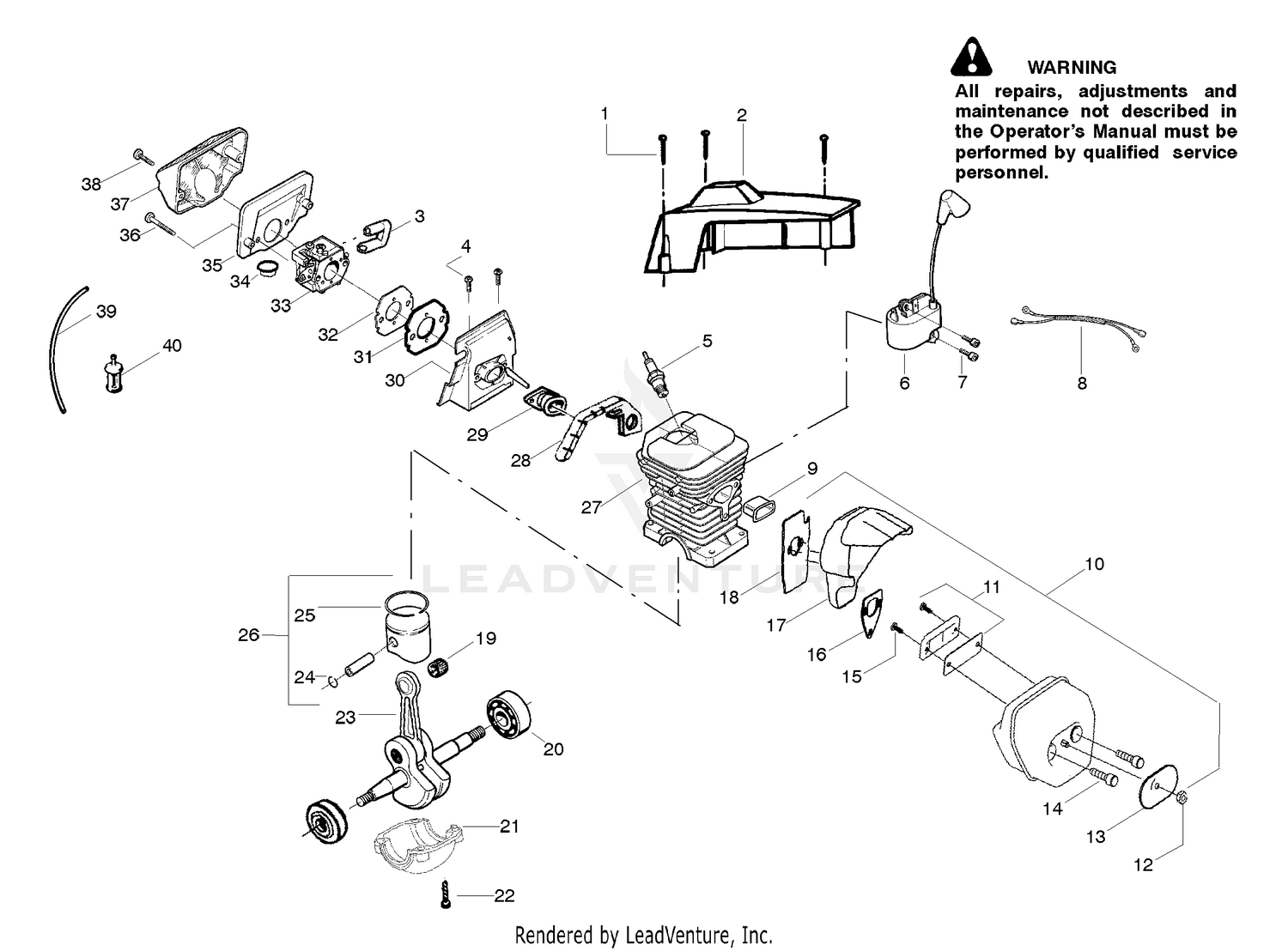

| Ref | Part Number | Description |
|---|
| 1 |
108-6715 |
GAUGE BAR ASM Price: $148.12 |
| 1 |
530016154 |
Screw Price: $0.99 |
| 2 |
29-9100 |
BRUSH AND HANDLE ASM Price: $58.15 |
| 2 |
530069716 |
Kit-Cylinder Shield Price: $6.56 |
| 3 |
530035583 |
Grommet -Carb. Price: $4.99 |
| 4 |
115-0803 |
ROLLER REBUILD TOOL KIT Price: $122.41 |
| 4 |
530015814 |
Screw Price: $1.99 |
| 5 |
117-0975 |
TOOL-INSTALLATION, REEL BEARING Price: $30.44 |
| 6 |
125-5610 |
PAPER-REEL, TORO (10 PACK) Price: $6.02 |
| 6 |
545063901 |
Module-Ignition This part replaces 530039239. Price: $37.99 |
| 7 |
545121901 |
Screw Price: $1.99 |
| 8 |
530037467 |
Assy-Switch Wire Price: $19.99 |
| 9 |
530037652 |
Insulator-Heat Price: $1.99 |
| 12 |
574266401 |
NUT 10MM BRASS This part replaces 530016359. Price: $1.99 |
| 13 |
530056061 |
Cover-Bolt Price: $2.99 |
| 14 |
530016338 |
Bolt-Muffler Price: $1.99 |
| 15 |
530016351 |
Screw-Spark Screen Price: $1.99 |
| 16 |
530055128 |
Gasket-Muffler Price: $1.99 |
| 17 |
530055765 |
Assy-Muffler Backplate Price: $3.99 |
| 18 |
530055402 |
Backplate - Alum. Price: $4.99 |
| 19 |
503414101 |
Bearing-Piston Pin Price: $12.99 |
| 20 |
530056363 |
Assy-Bearing & Seal Price: $11.99 |
| 21 |
530049794 |
Cap-Crankcase Price: $3.99 |
| 22 |
530015897 |
Screw Price: $1.99 |
| 23 |
503920801 |
ASSY-CRANKSHAFT & ROD This part replaces 530029794. Price: $129.99 |
| 24 |
530015697 |
Retainer-Piston Pin Price: $1.99 |
| 25 |
530037380 |
Ring-Piston Price: $2.99 |
| 28 |
530019251 |
Seal-Super Clean Price: $1.99 |
| 29 |
530035581 |
Intake Boot Price: $17.99 |
| 30 |
530053396 |
Adapter-Carb. Price: $2.99 |
| 31 |
530037872 |
Intake Plate-Carb Price: $1.99 |
| 32 |
530019172 |
Gasket-Carb. Price: $1.99 |
| 34 |
530036792 |
Isolator Price: $4.99 |
| 36 |
530015970 |
Screw Price: $1.99 |
| 38 |
530015899 |
Screw Price: $1.99 |
| 40 |
530095646 |
Assy-Fuel Pick-up Price: $2.99 |
