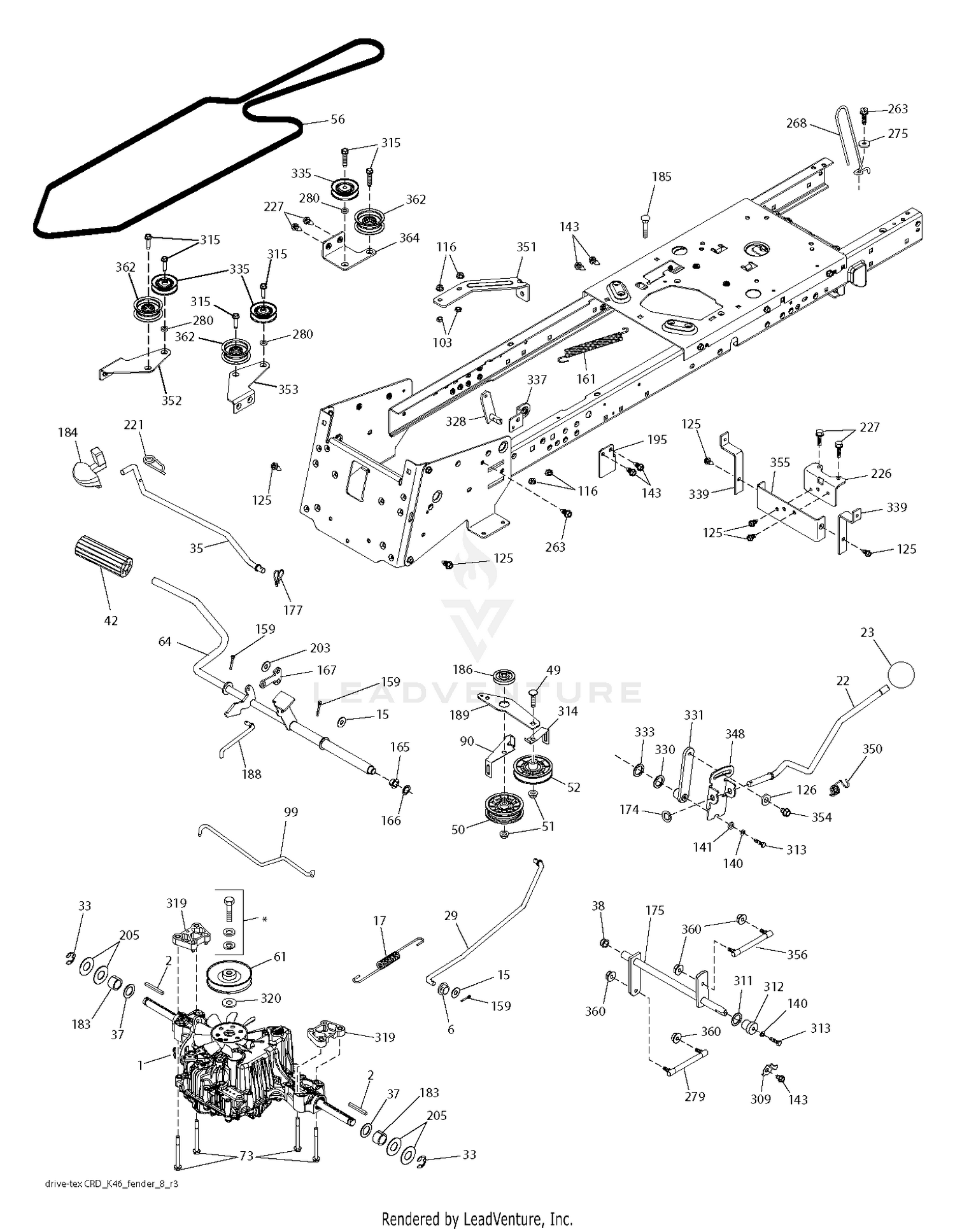

| Ref | Part Number | Description |
|---|
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 6 |
532124028 |
BUSHING.SNAP.NYL.BLK. Price: $4.99 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 Price: $2.99 |
| 17 |
583508701 |
SPRING.BRAKE.K46.TEX.CRD This part replaces 532436227. Price: $6.99 |
| 22 |
583568701 |
ROD.SHIFT.FENDER.K46.CRD.TEX This part replaces 532443246. Price: $24.99 |
| 23 |
532140845 |
KNOB.DELUXE.(PISTOL.GRIP).BLAC Price: $11.99 |
| 29 |
583507601 |
ROD.BRAKE.K46.CTD.TEX This part replaces 532435881. Price: $32.99 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 35 |
596874801 |
Rods Price: $6.99 |
| 37 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 38 |
532169613 |
NYLINER SNAP 5/8" ID Price: $4.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532008883. Price: $4.99 |
| 49 |
596136201 |
Bolts Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
592855101 |
Belts Price: $39.99 |
| 61 |
583522801 |
PULLEY.TRANSAXLE.K46.88 This part replaces 532437788. Price: $34.99 |
| 64 |
532196200 |
SHAFT.ASM.PEDAL.BRAKE. Price: $49.99 |
| 73 |
583613301 |
BOLT.HEX.FLNG.5/16-18X3.75 This part replaces 874490560. Price: $4.99 |
| 90 |
583570001 |
KEEPER.BELT.CLUTCHING.TEX.CRD This part replaces 532443605. Price: $4.99 |
| 99 |
583571801 |
ROD.BYPASS.CRD.TEX.GEN2 This part replaces 532443947. Price: $7.99 |
| 103 |
596436301 |
Nuts Price: $2.99 |
| 116 |
596135701 |
GSPW Nuts Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 126 |
596218801 |
Washers Price: $1.99 |
| 140 |
596029801 |
WASHER SPRING LOCK WASHER WITH Price: $2.99 |
| 141 |
596039801 |
Washers Price: $2.99 |
| 143 |
596030701 |
Screws Price: $2.99 |
| 159 |
596029501 |
Pins Price: $2.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 165 |
532196212 |
BUSHING.SHAFT.BRAKE.HAND Price: $5.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 174 |
532197289 |
NUT.PUSH.500.2006 Price: $2.99 |
| 175 |
583560401 |
SHAFT.ASM.CROSS.SHIFT.REAR.FCH This part replaces 532441823. Price: $19.99 |
| 177 |
587225301 |
PIN COTTER;LOCKING;BOWTIE;1IN Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532411484 |
HANDLE.PARKNG BRK.PRED.LT.428 Price: $24.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG Price: $4.99 |
| 189 |
583492701 |
BELLCRANK.GROUND.DRIVE.CRD.TEX This part replaces 532433611. Price: $5.99 |
| 195 |
580456901 |
BRACKET.ROD.BRAKE Price: $5.99 |
| 203 |
596204101 |
WASHER 11/32 X 11/16 X 14 GA T Price: $2.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 226 |
531170501 |
SERVICE KIT BRACKET This part replaces 532401564. Price: $4.99 |
| 227 |
596135901 |
Bolts Price: $1.99 |
| 263 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 268 |
596887801 |
Mufflers Price: $1.99 |
| 279 |
593898401 |
Links Price: $8.99 |
| 280 |
596039901 |
Washers Price: $2.99 |
| 309 |
532165581 |
PLATE FASTENING LT Price: $3.99 |
| 311 |
532169845 |
WASHER NYL Price: $2.99 |
| 312 |
532165614 |
HUB.TAPERED.ROUND.CRD Price: $4.99 |
| 313 |
596040701 |
Bolts Price: $1.99 |
| 314 |
583575801 |
KEEPER.BELT This part replaces 532444713. Price: $3.99 |
| 315 |
817580520 |
BOLT.5/16-18X1.25 Price: $3.99 |
| 319 |
583512001 |
SPACER.TRANSAXLE.TEX.CRD This part replaces 532436794. Price: $24.99 |
| 320 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 328 |
583507001 |
SHAFT.ASM.CROSS.FRONT.CRD.TEX This part replaces 532435758. Price: $8.99 |
| 330 |
532169593 |
WASHER.NYL.7/8IDX.105"HYD CR Price: $9.99 |
| 331 |
583570101 |
HUB.SHIFT.FENDER.TEX.CRD This part replaces 532443606. Price: $17.99 |
| 333 |
532170868 |
WASHER.WAVE.SPRING Price: $6.99 |
| 335 |
532199534 |
PULLEY.V-IDLER. Price: $32.99 |
| 337 |
583507801 |
BRACKET.SUPT.SHIFT.CRD.TEX This part replaces 532435937. Price: $6.99 |
| 339 |
583512601 |
STRAP.TORQUE.K46.CRD.TEX This part replaces 532436867. Price: $2.99 |
| 348 |
583570201 |
ARM.CLEVIS.ROD.SHIFT.TEX.CRD This part replaces 532443607. Price: $7.99 |
| 350 |
583576901 |
SPRING.TORSION.SHIFT.TXCRDI&II This part replaces 532445020. Price: $2.99 |
| 351 |
583515101 |
BRACKET.97.CRD.DECK.SWAY This part replaces 532436998. Price: $7.99 |
| 352 |
583507301 |
BRACKET.IDLER. This part replaces 532435819. Price: $4.99 |
| 353 |
583509501 |
BRACKET.IDLER.RH This part replaces 532436577. Price: $6.99 |
| 354 |
594094101 |
Bolts Price: $1.99 |
| 355 |
583506501 |
STRAP.TORQUE.K46.CRD.TEX This part replaces 532435669. Price: $5.99 |
| 356 |
593898403 |
Links Price: $9.99 |
| 360 |
583575901 |
NUT.HEX.CENTERLOCK.5/16-24 UNF This part replaces 532444714. Price: $2.99 |
| 362 |
583512101 |
IDLER.FLAT.2.25.INCH This part replaces 532436812. Price: $27.99 |
| 364 |
583567401 |
BRACKET.IDLER.CRD.TEX This part replaces 532443032. Price: $7.99 |
