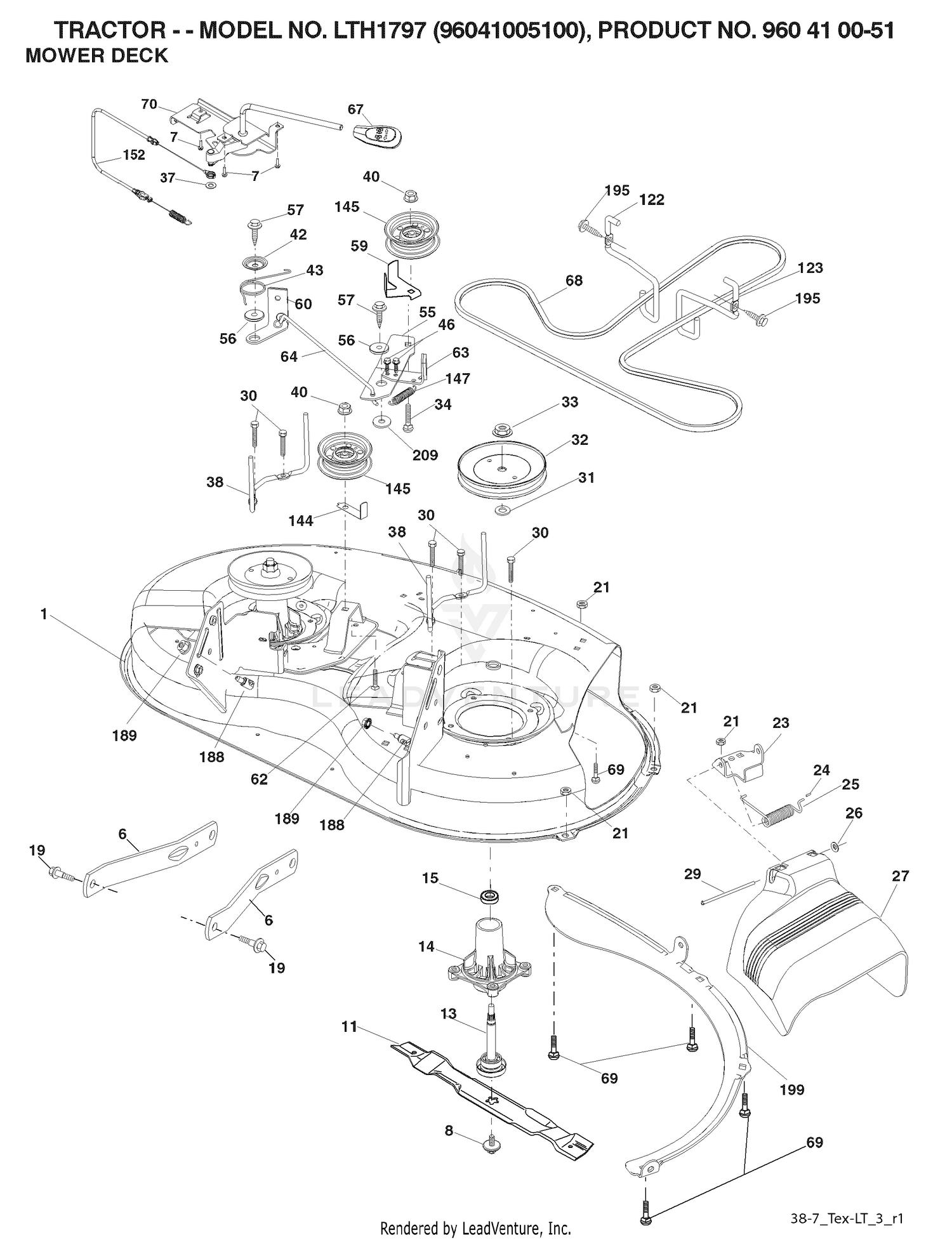

| Ref | Part Number | Description |
|---|
| 1 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 1 |
583304901 |
DECK SVCX 38"194251X431 This part replaces 532194251. Price: $279.99 |
| 2 |
3-8448 |
WASHER-THRUST Price: $2.58 |
| 3 |
26-8310-01 |
BAIL-LIFT This part replaces 26-8310. Price: $233.66 |
| 4 |
32153-5 |
NUT-HEX Price: $1.59 |
| 5 |
6-1030 |
HOUSING This part replaces 1-6559. Price: $158.52 |
| 6 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 6 |
529846401 |
SERVICE.KIT ARM.SUSPENSION.MOW This part replaces 532195186. Price: $14.99 |
| 7 |
125-5196 |
BUSHING This part replaces 3-0348. Price: $6.00 |
| 7 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 8 |
325-17 |
SCREW-HH Price: $2.90 |
| 8 |
532193003 |
BOLT.WASHER.ASM.7/16-2 Price: $6.99 |
| 9 |
5-1091 |
SPACER Price: $4.98 |
| 10 |
3-9280-01 |
DRAWBAR This part replaces 3-9280. Price: $321.93 |
| 11 |
325-14 |
SCREW-HH Price: $2.64 |
| 11 |
581116302 |
BLADE.2 IN 1.38"DECK.BLACK This part replaces 532193957. Price: $14.99 |
| 12 |
5-1706 |
SPRING-EXTENSION Price: $12.91 |
| 13 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532192872. Price: $49.99 |
| 14 |
587819701 |
KIT.MANDREL.NONGREASE.TALL This part replaces 532187281. Price: $49.99 |
| 15 |
532110485 |
BEARING Price: $11.99 |
| 19 |
532196539 |
BOLT.SHOULDER Price: $5.99 |
| 21 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 23 |
532192557 |
BRKT.DEFLECTOR.38"2005+ Price: $7.99 |
| 24 |
532105304 |
CAP-SLEEVE LT Price: $3.99 |
| 25 |
532197026 |
SPRING.TORSION.DEFLECT Price: $8.99 |
| 26 |
532110452 |
NUT PUSH M Price: $2.99 |
| 27 |
532401472 |
SHIELD.DEFLECTOR.MWR.38-7/97CM Price: $32.99 |
| 29 |
595297001 |
Rods This part replaces 532131491. Price: $4.99 |
| 30 |
584953901 |
BOLT.HEX.WASHR.HED.313-18X1.19 This part replaces 532173984. Price: $3.99 |
| 31 |
532187690 |
WASHER.SPACER.MANDREL Price: $3.99 |
| 32 |
531170001 |
SERVICE KIT PULLEY PULLEY.MAND This part replaces 532199789. Price: $17.99 |
| 33 |
596134801 |
Nuts This part replaces 532400234. Price: $1.00 |
| 34 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 37 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 38 |
532400140 |
BELT KEEPER.MANDREL.38"COATED This part replaces 532199541. Price: $39.99 |
| 40 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 42 |
532198410 |
SPRING.TORSION.BRAKE Price: $4.99 |
| 43 |
532197256 |
SRPING.TORSION.RETAINE Price: $4.99 |
| 46 |
532137729 |
SCREW.1/4-20X5/8 Price: $3.99 |
| 55 |
531169401 |
SERVICE KIT IDLER.ARM This part replaces 532197249. Price: $5.99 |
| 56 |
532199092 |
SPACER.RETAINER Price: $5.99 |
| 57 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 59 |
531165901 |
SERVICE KIT GUARD This part replaces 532141043. Price: $4.99 |
| 60 |
532199471 |
ARM BRAKE MOWER RH 38" Price: $14.99 |
| 62 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 63 |
532400130 |
BRAKE.ARM.LH.38"TEX.COATED This part replaces 532199470. Price: $14.99 |
| 64 |
532199918 |
LINKAGE.BRAKE.ASM.ZINC This part replaces 532199790. Price: $11.99 |
| 67 |
532403012 |
HANDLE.CLUTCH.CABLE.LT Price: $6.99 |
| 68 |
532408381 |
V-BELT Price: $37.99 |
| 69 |
596136401 |
Bolts This part replaces 872140505. Price: $2.99 |
| 70 |
532401246 |
CLUTCH.ASM.MANUAL.LT.PRED Price: $32.99 |
| 122 |
531169501 |
SERVICE KIT BELT KEEPER This part replaces 532197258. Price: $4.99 |
| 144 |
531148901 |
SERVICE.KIT KEEPER BELT KEEPER This part replaces 532193414. Price: $3.99 |
| 145 |
532177968 |
PULLEY.IDLER.FLAT This part replaces 532193197. Price: $27.99 |
| 147 |
532401872 |
SPRING RETURN Price: $4.99 |
| 152 |
532435111 |
CABLE.CLUTCH.MANUAL. This part replaces 532408714. Price: $29.99 |
| 188 |
593824001 |
STUD.W/"D"ANTI-ROTATION This part replaces 532195161. Price: $3.99 |
| 189 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 195 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 199 |
531170401 |
SERVICE KIT BAFFLE BAFFLE.VORT This part replaces 532400095. Price: $14.99 |
| 209 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
