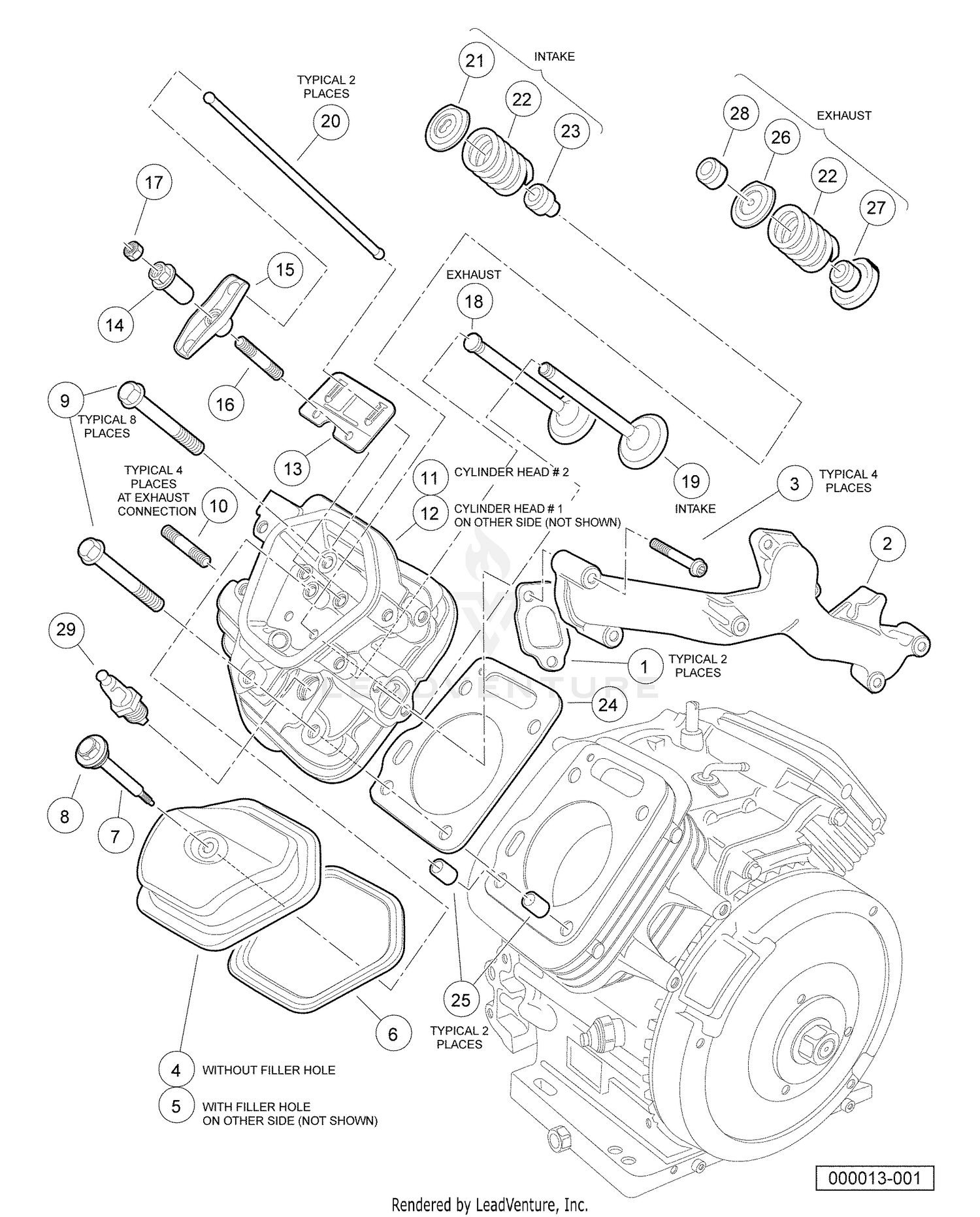

| Ref | Part Number | Description |
|---|
| 1 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 1 |
603001484 |
GASKET, IN. MANIFOLD Price: $22.99 |
| 2 |
603001485 |
MANIFOLD, IN Price: $599.99 |
| 2 |
67-7911 |
STRAP Price: $8.04 |
| 3 |
38-7820 |
BEARING-BALL Price: $13.99 |
| 3 |
603001486 |
BOLT, SOCKET, M8 X 1.25 X 45 Price: $12.99 |
| 4 |
603001533 |
COVER, HEAD Price: $119.99 |
| 4 |
67-7750 |
DISCONTINUED Price: Call Us |
| 5 |
323-15 |
SCREW-HH Price: $1.53 |
| 5 |
603001534 |
COVER, HEAD FILLER Price: $109.99 |
| 6 |
603001535 |
GASKET, CYLINDER HEAD COVER Price: $54.99 |
| 6 |
67-7890 |
BELT TENSIONER WA Price: $208.77 |
| 7 |
121-4600 |
NUT-HEX This part replaces 3296-59. Price: $0.78 |
| 7 |
603001536 |
BOLT, HEAD COVER Price: $24.99 |
| 8 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 8 |
603001537 |
WASHER, HEAD COVER Price: $27.99 |
| 9 |
603001538 |
BOLT, FLANGE, M10 X 1.5 X 80 Price: $12.99 |
| 9 |
83-9690 |
DISCONTINUED Price: Call Us |
| 10 |
603001539 |
BOLT, STUD, M8X22 Price: $9.99 |
| 10 |
83-9810 |
BUSHING - FLANGE Price: $13.16 |
| 11 |
603001540 |
CYLINDER HEAD, #2 Price: $1,299.99 |
| 11 |
67-7870 |
DISCONTINUED Price: Call Us |
| 12 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 12 |
603001541 |
CYLINDER HEAD, #1 Price: $1,499.99 |
| 13 |
322-17 |
SCREW-HH Price: $2.62 |
| 13 |
603001542 |
PLATE, PUSH ROD GUIDE Price: $19.99 |
| 14 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 14 |
603001543 |
PIVOT, ROCKER ARM Price: $19.99 |
| 15 |
32128-25 |
NUT-HF Price: $3.19 |
| 15 |
603001544 |
ARM, VALVE ROCKER Price: $29.99 |
| 16 |
5-7280 |
KEY Price: $4.64 |
| 16 |
603001545 |
BOLT, PIVOT, M8 Price: $27.99 |
| 17 |
603001546 |
NUT, PIVOT ADJ Price: $199.99 |
| 18 |
603001547 |
VALVE, EX Price: $129.99 |
| 18 |
67-7490 |
KEY-SQUARE Price: $2.30 |
| 19 |
325-4 |
SCREW-HH Price: $0.95 |
| 19 |
603001548 |
VALVE, IN Price: $69.99 |
| 20 |
603001549 |
ROD, PUSH Price: $44.99 |
| 20 |
83-7820 |
DISCONTINUED Price: Call Us |
| 21 |
3242-4 |
SCREW-SET, SQH Price: $2.29 |
| 21 |
603001550 |
RETAINER, IN VALVE SPRING Price: $44.99 |
| 22 |
603001551 |
SPRING, VALVE Price: $22.99 |
| 22 |
61-0140 |
JACKSHAFT PULLEY Price: $61.35 |
| 23 |
251-77 |
COLLAR-LOCK, BEARING Price: $10.22 |
| 23 |
603001552 |
SEAL, VALVE STEM Price: $27.99 |
| 24 |
3245-35 |
SCREW-SET, HSH Price: $0.41 |
| 24 |
603001553 |
GASKET, CYLINDR HEAD Price: $64.99 |
| 25 |
603001554 |
PIN A, DOWEL, 12 X 20 Price: $5.99 |
| 25 |
76-2460 |
BEARING ASM Price: $67.16 |
| 26 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 26 |
603001685 |
RETAINER, EX VALVE SPRING Price: $37.99 |
| 27 |
603001686 |
SEAT, VALVE SPRING Price: $17.99 |
| 27 |
61-2350-03 |
BEARING PLATE This part replaces 61-2350. Price: $18.09 |
| 28 |
603001687 |
ROTATOR, VALVE Price: $19.99 |
| 28 |
61-0070 |
DISCONTINUED Price: Call Us |
| 29 |
94-3405 |
BEARING-BALL Price: $22.27 |
