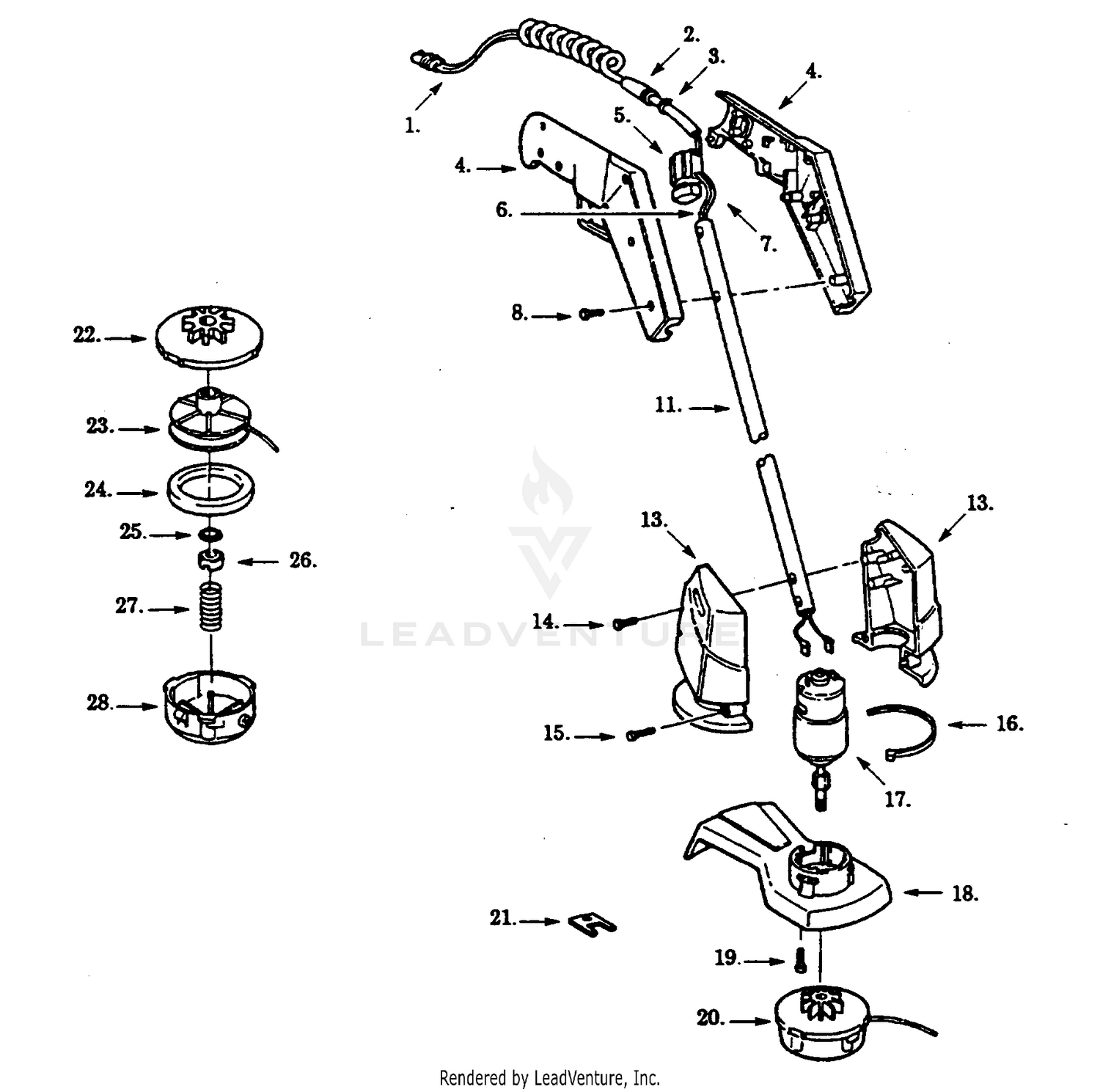

TRIMMER ASSEMBLY
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 534898300 | Coiled Cord Price: $6.99 |
| 2 | 47-4380 | NUT-ROLLER, RH Price: $18.41 |
| 2 | 534459100 | Rubber Strain Relief Price: $1.99 |
| 3 | 47-4390 | NUT-ROLLER, LH Price: $18.41 |
| 3 | 534356003 | Strain Relief Price: $3.33 |
| 4 | 3253-7 | WASHER-LOCK Price: $0.27 |
| 4 | 534356782 | Handle Set Price: $7.99 |
| 5 | 325-7 | SCREW-HH Price: $1.53 |
| 5 | 534193001 | Trigger Switch Price: $3.33 |
| 6 | 534896601 | Lead Wire (Black) Price: $3.33 |
| 7 | 534896701 | Lead Wire (Red) Price: $3.33 |
| 8 | 534826801 | Screw Price: $1.99 |
| 11 | 534897000 | Tube Price: $3.33 |
| 13 | 534194042 | Housing Set Price: $8.99 |
| 14 | 534826800 | Screw Price: $1.99 |
| 15 | 534790301 | Screw Price: $3.33 |
| 16 | 534134702 | Tie Wrap Price: $3.33 |
| 17 | 534896401 | Motor/Adapter Ass'y. Price: $37.99 |
| 18 | 534896201 | Guard/Blade Ass'y. Price: $3.33 |
| 19 | 534183400 | Screw Price: $3.33 |
| 20 | 534966501 | Head Ass'y. Price: $3.33 |
| 21 | 534166800 | Spanner Wrench Price: $0.52 |
| 22 | 534167235 | Rear Plate Price: $4.99 |
| 23 | 534167805 | Spool & Line Price: $11.10 |
| 24 | 534167700 | Foam Pad Price: $3.33 |
| 25 | 534316200 | O-Ring Price: $0.99 |
| 26 | 534166700 | Adapter Nut Price: $1.99 |
| 27 | 534819200 | Spring Price: $1.99 |
