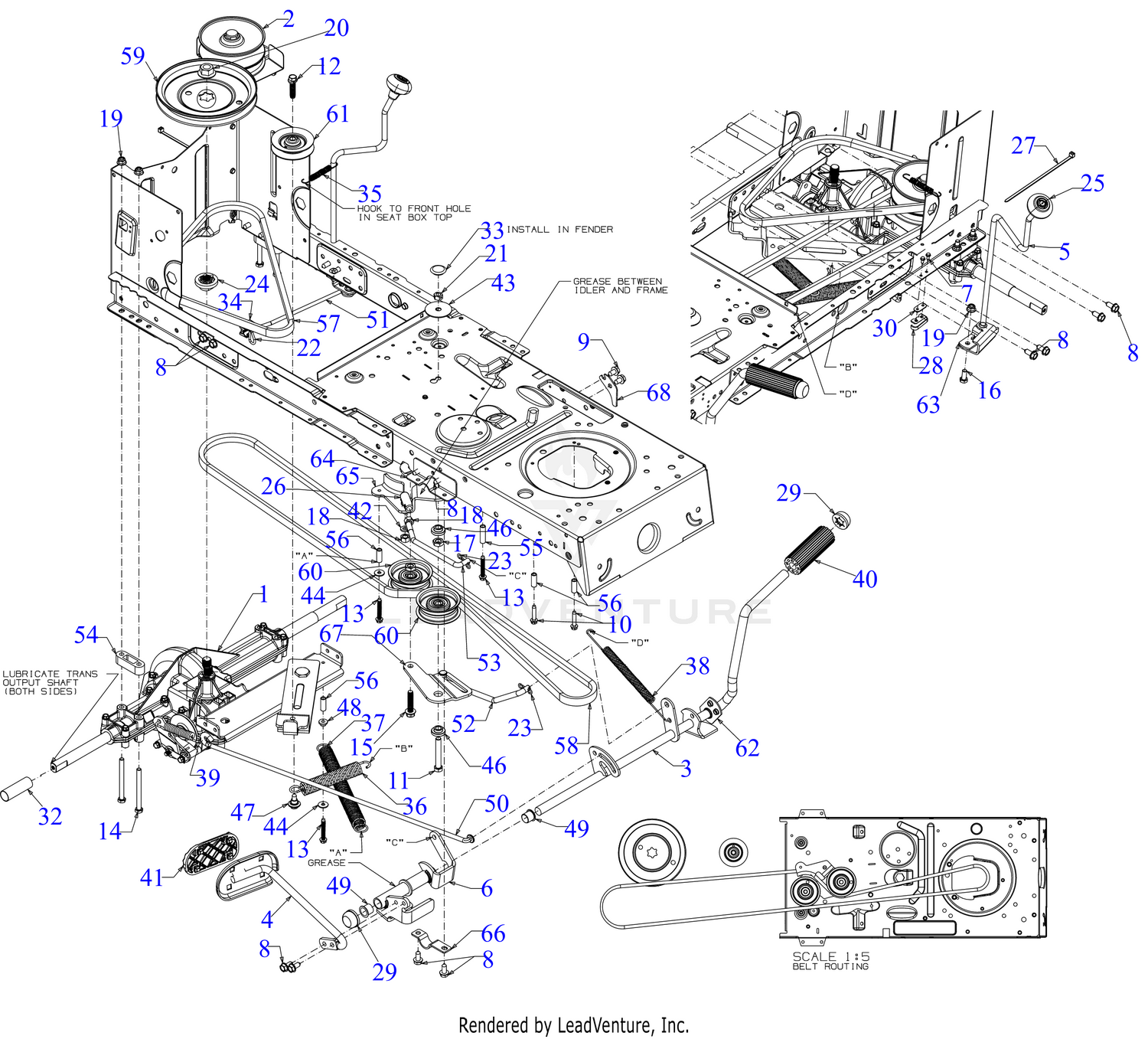

| Ref | Part Number | Description |
|---|
| 2 |
656P05011 |
VARIABLE SPEED PULLEY (4.75 OD) This part replaces 956-04015B. Price: $90.80 |
| 5 |
647-04266B |
SHIFT LEVER ASSEMBLY This part replaces 647-04266A. Price: $21.39 |
| 6 |
683-04736 |
BRACKET ASSEMBLY Price: $35.39 |
| 7 |
710-0227 |
HEX SCREW WASHER HD #8-18 x 0.500 Price: $3.90 |
| 8 |
710-04484 |
SCREW 5/16-18 x .750 Price: $3.19 |
| 9 |
710-0604A |
SCREW 5/16-18 x .625 Price: $3.96 |
| 10 |
710-0809 |
SCREW 1/4-20 x 1.25 Price: $6.37 |
| 11 |
710-0859 |
HEX SCREW-3/8-16X2.5 GR5 Price: $5.99 |
| 12 |
710-1007 |
SCREW 3/8-16 x 1.500 Price: $5.71 |
| 13 |
710-1026 |
SCREW 1/4-20 x 1.750 Price: $5.94 |
| 14 |
710-1266 |
SCREW 5/16-18X3.5 GR5 Price: $8.66 |
| 15 |
710-1858A |
SCREW 3/8-16 x 1.75 Price: $3.49 |
| 16 |
710-3008 |
SCREW 5/16-18 x .75 GR5 Price: $3.76 |
| 17 |
912-0240 |
JAM NUT 7/16-20 Price: $3.90 |
| 18 |
712-0241 |
HEX NUT 3/8-24 Price: $3.86 |
| 19 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 20 |
712-0700 |
FLANGE NUT W/HUB Price: $10.12 |
| 21 |
712-3000 |
Hex Lock Nut, 3/8-16 This part replaces 912-3000. Price: $3.90 |
| 22 |
914-0209 |
COTTER PIN Price: $3.22 |
| 23 |
714-04040 |
BOW TIE COTTER PIN 1/4-5/16 Price: $1.28 |
| 24 |
718-04407 |
PULLEY HUB Price: $11.11 |
| 25 |
720-04028 |
SHIFT KNOB Price: $9.44 |
| 26 |
923-3018 |
BALL JOINT Price: $15.50 |
| 28 |
725-1644 |
SAFETY SPRING SWITCH Price: $8.34 |
| 29 |
726-0214 |
PUSH CAP Price: $9.11 |
| 30 |
926-0320 |
INSULATOR NUT PLATE Price: $6.01 |
| 32 |
731-04602 |
SLEEVE Price: $5.62 |
| 32 |
731-04604 |
SLEEVE Price: $5.78 |
| 33 |
731-06330 |
DECK HOLE PLUG Price: $3.99 |
| 34 |
731-06894A |
SHIFT ROD BEARING This part replaces 731-06894. Price: $4.66 |
| 35 |
732-04488 |
EXTENSION SPRING .38 OD x 3.25 LG Price: $5.32 |
| 36 |
732-04616B |
EXTENSION SPRING .97 x 6.18 Price: $12.75 |
| 37 |
732-05186 |
EXTENSION SPRING 1.00 x 11.125 x .095 Price: $12.11 |
| 38 |
732-05438 |
EXTENSION SPRING .562 OD x 10.5 Price: $11.86 |
| 39 |
732-0716D |
EXTENSION SPRING Price: $11.49 |
| 40 |
735-05051 |
BRAKE PEDAL PAD Price: $10.13 |
| 41 |
735-04272 |
PEDAL PAD Price: $6.82 |
| 42 |
736-0169 |
L-Wash. 3/8" I.D." This part replaces 936-0169. Price: $3.33 |
| 43 |
736-3040 |
HUB CAP WASHER .406 x 1.92 x .060 Price: $5.52 |
| 44 |
736-3090 |
FLAT WASHER Price: $5.79 |
| 46 |
738-0372B |
SHOULDER SPACER 1.00 x .38 x .38 Price: $8.78 |
| 47 |
738-04091A |
SHOULDER SCREW .43X.29X5/16-18 TT Price: $3.50 |
| 48 |
738-04483 |
SHOULDER SPACER Price: $3.53 |
| 49 |
741-0495 |
NYLINER BEARING Price: $4.02 |
| 50 |
747-05188 |
BRAKE ROD Price: $11.31 |
| 51 |
747-05243 |
SHIFT ROD Price: $9.73 |
| 52 |
747-05415 |
TRANSMISSION FOOT PEDAL ROD Price: $12.58 |
| 53 |
747-05596 |
IDLER ADJUSTMENT ROD Price: $11.71 |
| 54 |
948-0334 |
TRANSAXLE SPACER Price: $9.87 |
| 55 |
750-04456 |
SPACER:.260 x .372 x 1.420 Price: $6.20 |
| 56 |
750-0566A |
SPACER Price: $9.17 |
| 57 |
954-04208A |
V-BELT 5L x 40.75 Price: $42.39 |
| 58 |
954-0467A |
V-BELT 5L-90.93 Price: $46.63 |
| 59 |
956-04002 |
V-PULLEY W/HUB 7.25 DIA Price: $24.33 |
| 60 |
756-04224 |
FLAT IDLER PULLEY 2.75 OD Price: $24.80 |
| 61 |
756-04325 |
V-IDLER PULLEY A x 3.06 OD Price: $22.60 |
| 63 |
783-04595A |
SHIFT ADJUSTMENT BRACKET Price: $9.09 |
| 64 |
783-06562A-0637 |
PEDAL FRAME BRACKET (RH) Price: $4.02 |
| 65 |
783-06592B |
DOULE IDLER BRACKET Price: $14.59 |
| 66 |
783-06641A |
SUPPORT BRACKET Price: $7.18 |
| 67 |
783-06769 |
IDLER BRACKET Price: $8.70 |
