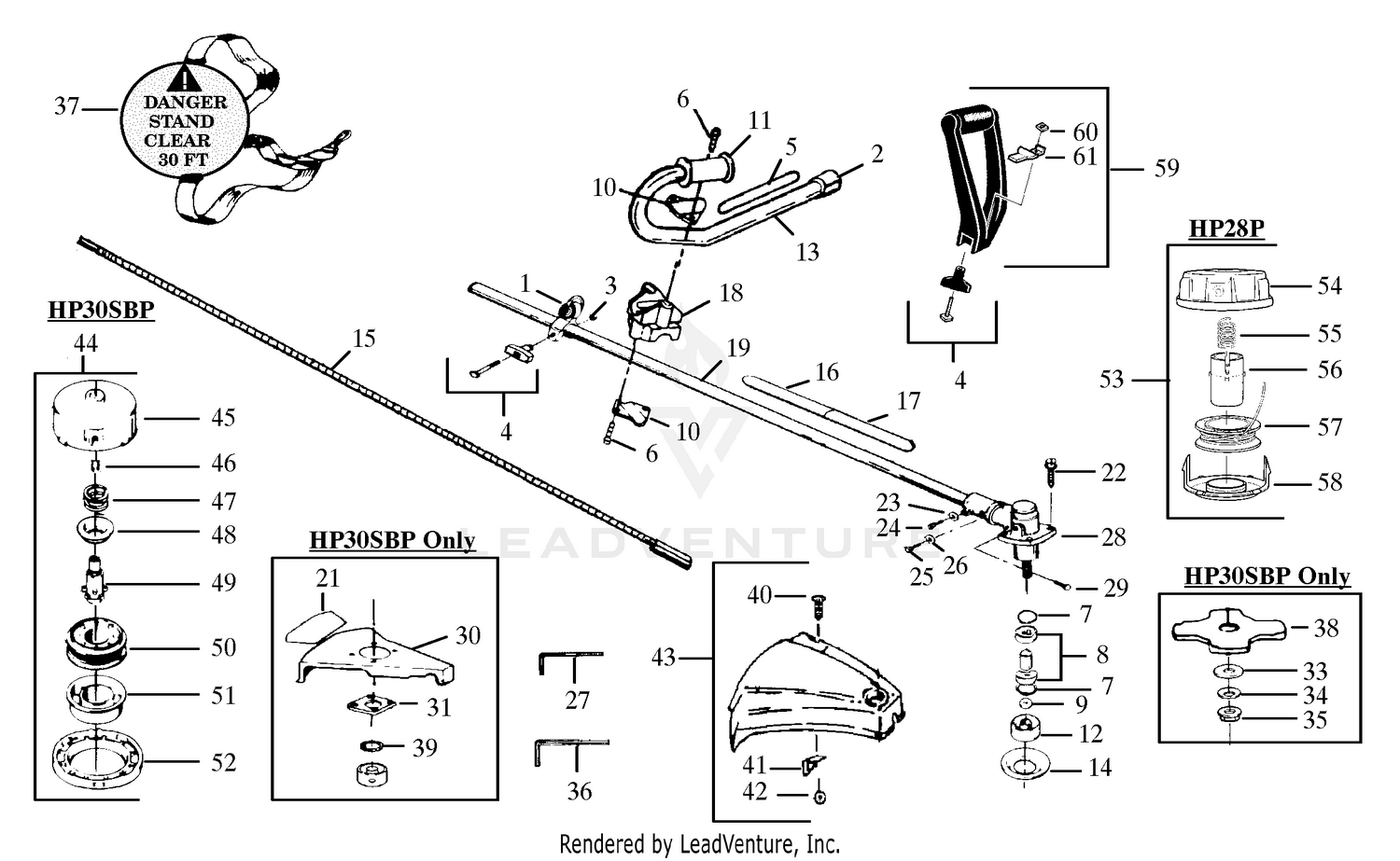

Cutting Head Assembly
Parts (64)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 115-8294-0P | TUBE-LONG This part replaces 115-8294-03. Price: $233.63 |
| 1 | 530094686 | Clamp Harness Ass'y. Price: $4.99 |
| 2 | 114-5407 | SHAFT-LONG, REAR ROLLER Price: $84.05 |
| 2 | 530092192 | Handlebar Cap Price: $0.99 |
| 3 | 114-3717 | SEAL-OIL Price: $2.77 |
| 3 | 530015197 | Nut Price: $1.99 |
| 4 | 112-5290 | BEARING-STEEL, STAINLESS Price: $12.64 |
| 4 | 530069347 | HANDLE KIT This part replaces 530069252. Price: $4.99 |
| 5 | 112-7494 | SEAL Price: $6.37 |
| 5 | 530027778 | Handlebar Warning Decal Price: $0.12 |
| 6 | 114-5411 | NUT-LOCK, BEARING Price: $24.46 |
| 6 | 530015791 | Screw Price: $1.99 |
| 7 | 302-5 | FITTING-GREASE Price: $0.59 |
| 7 | 530091783 | Retainer Price: $1.99 |
| 8 | 530069086 | Bearing & Spacer Kit Price: $22.99 |
| 9 | 530092216 | Washer Price: $1.99 |
| 10 | 530094572 | Handlebar Bracket Price: $1.99 |
| 11 | 530092086 | Handlebar Grip Price: $4.99 |
| 12 | 530092359 | Dust Cup Price: $4.99 |
| 13 | 530010723 | Handlebar Price: $6.68 |
| 14 | 530094571 | Grass Washer Price: $1.99 |
| 15 | 530094585 | Drive Shaft Model HP30SBP Price: $19.99 |
| 15 | 530095146 | Drive Shaft Model HP28P Price: $9.99 |
| 16 | 530029162 | Shaft Warning Decal Upper Price: $3.33 |
| 17 | 530029163 | Shaft Warning Decal Lower Price: $3.33 |
| 18 | 530012207 | Handlebar Clamp Price: $8.99 |
| 19 | 530014772 | Drive Shaft Housing Model HP28P Price: $27.99 |
| 19 | 530094684 | Drive Shaft Housing Model HP30SBP Price: $35.03 |
| 21 | 530027749 | Blade Direction Decal Price: $0.12 |
| 23 | 530015328 | Lockwasher Price: $1.99 |
| 24 | 530094612 | Screw Price: $0.99 |
| 25 | 530001711 | Screw Price: $1.99 |
| 26 | 530001642 | Lockwasher Price: $1.99 |
| 27 | 530031159 | Hex Wrench (5/32) This part replaces 530031111. Price: $1.99 |
| 28 | 530071781 | GEAR BOX REPLACEMENT KIT This part replaces 530094568. Price: $74.99 |
| 29 | 530094616 | Screw Price: Call Us |
| 30 | 530094633 | SHIELD This part replaces 530094627. Price: $22.99 |
| 31 | 530027615 | Shield Retention Plate Price: $3.99 |
| 33 | 530015792 | Washer Price: $1.99 |
| 34 | 530016240 | Washer--Belleville This part replaces 530015492. Price: $1.99 |
| 35 | 530015793 | Nut Price: $1.99 |
| 36 | 530031098 | Hex Wrench (3/16) Price: $0.99 |
| 37 | 530094417 | Shoulder Strap Price: $20.65 |
| 38 | 952701611 | Weed Blade Price: $26.19 |
| 39 | 530094640 | Seal Price: $6.94 |
| 40 | 530015037 | Screw Price: $1.99 |
| 41 | 530094570 | Line Limiter Price: $1.99 |
| 42 | 530001543 | Nut Price: Call Us |
| 45 | 530071295 | Hub This part replaces 530093896. Price: $14.99 |
| 46 | 530093898 | Line Saver Price: $3.99 |
| 47 | 530340007 | Spring Price: $1.99 |
| 48 | 530328929 | Cap Spring This part replaces 530092068. Price: $1.99 |
| 49 | 530093897 | Drive Gear Price: $6.99 |
| 50 | 114-5430 | ROLLER REBUILD KIT Price: $99.53 |
| 50 | 952701589 | Spool w/ Line Price: $5.95 |
| 51 | 530401183 | Tap Button This part replaces 530093387. Price: $2.99 |
| 52 | 530092133 | Cover Price: $5.99 |
| 54 | 530014773 | Hub Ass'y. Price: $8.99 |
| 55 | 530094830 | Spring Price: $1.99 |
| 56 | 530094827 | Release Button Price: $3.99 |
| 57 | 952701619 | Spool w/Line Price: $5.95 |
| 58 | 530094828 | Cover Price: $8.99 |
| 60 | 530015610 | Nut Price: $0.99 |
| 61 | 530094742 | Clamp Price: $2.99 |
