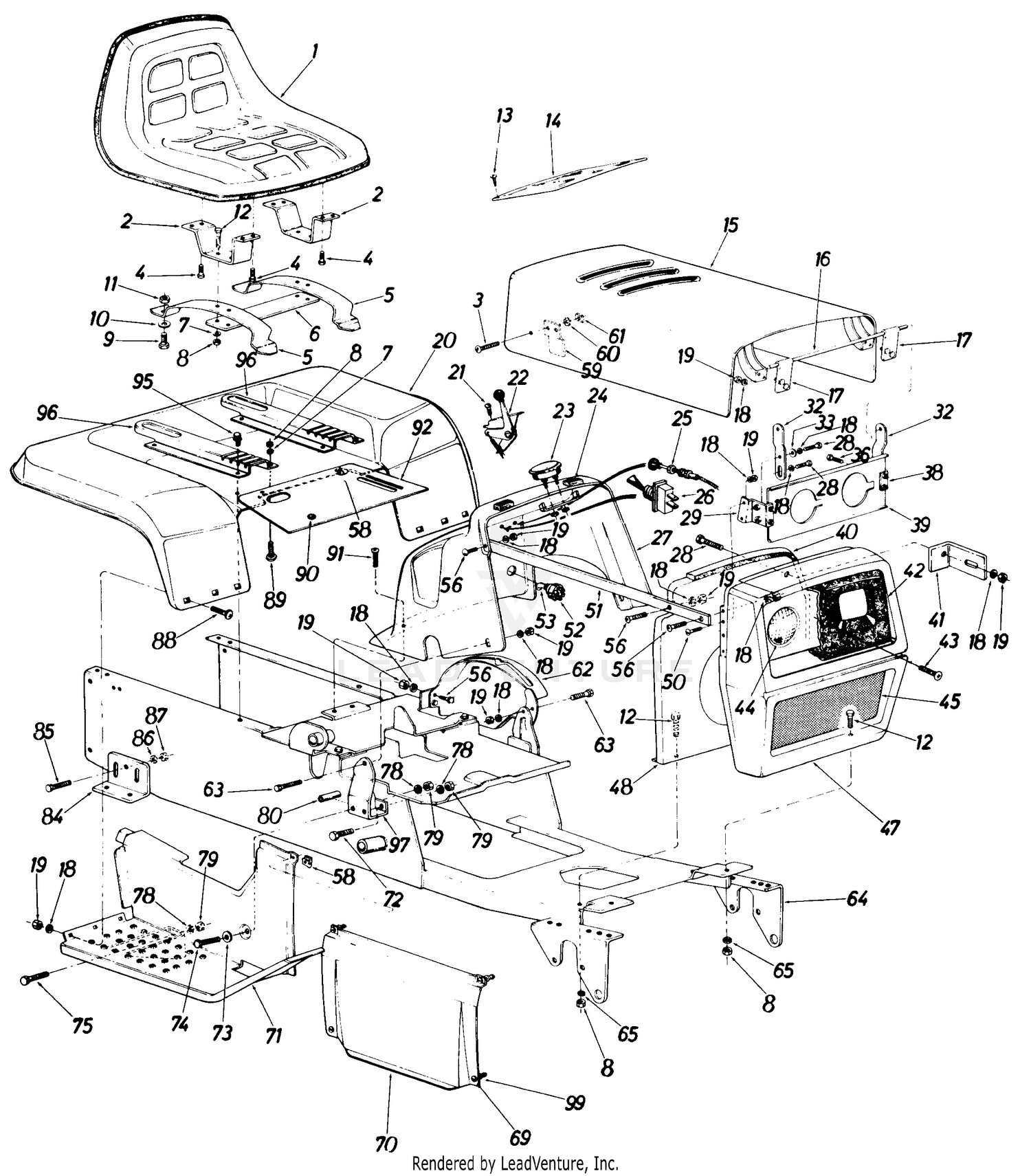

| Ref | Part Number | Description |
|---|
| 1 |
757-0286 |
Seat Ass'y. Comp. Price: Call Us |
| 2 |
14225 |
BRACKET-SE Not Available Price: |
| 3 |
710-0192 |
Truss Hd. Mach. Scr. #10-24 x.38" Lg. Price: $3.08 |
| 4 |
710-0623 |
Hex Wash. Hd. Self-Tap Scr. 3/8-16 x .75" Lg. Price: $3.93 |
| 5 |
13123 |
SPRING-SEA Not Available Price: |
| 6 |
13214 |
Seat Support Plate Price: Call Us |
| 7 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 8 |
712-3010 |
HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89 |
| 9 |
710-0689 |
SCREW 1/2-13 x .75 Not Available Price: |
| 10 |
736-0160 |
Fl-Wash. .531 I.D. x .930 O.D. Price: $3.90 |
| 11 |
912-0384 |
Hex Lock Nut, 1/2-13 Thread This part replaces 712-0384. Price: $6.07 |
| 12 |
710-0118 |
Hex Scr. 5/16-18 x .75" Lg.* Price: $3.76 |
| 13 |
710-0697 |
SCREW #10-16 x .500 Not Available Price: |
| 14 |
731-0384 |
COVER-DASH PANEL Not Available Price: |
| 15 |
13472 |
HOOD ASS'Y. Not Available Price: |
| 16 |
747-0231 |
ROD Not Available Price: |
| 17 |
13581 |
HOOD HINGE ASS'Y. Not Available Price: |
| 18 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 19 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 20 |
13106 |
Rear Fender Price: Call Us |
| 21 |
710-0721 |
Fl-Hd. Truss Scr. #10 x .62" Lg. Price: Call Us |
| 22 |
746-0342 |
Throttle Control Price: Call Us |
| 23 |
925-3141 |
Ammeter This part replaces 725-0119. Price: $55.06 |
| 24 |
735-0199A |
Bumper, Rubber This part replaces 735-0199. Price: $6.89 |
| 25 |
746-0343 |
CONTROL-CHOKE Not Available Price: |
| 26 |
925-1756 |
TOGGLE SWITCH (SINGLE) Not Available This part replaces 725-0646. Price: |
| 27 |
731-0463 |
DASH PANEL Not Available Price: |
| 28 |
710-0258 |
Hex Scr. 1/4-20 x .62" Lg.* Price: $3.63 |
| 29 |
13689 |
BRACKET HO Not Available Price: |
| 32 |
13585 |
HINGE ROD SUPPORT Not Available Price: |
| 33 |
736-0211 |
Fl-Wash. .250 I.D. x 1.25 O.D. Price: $5.99 |
| 36 |
710-0294 |
HEX CAP SCREW 1/4-20 x .375 GR5 Not Available Price: |
| 38 |
13690 |
BRACKET HO Not Available Price: |
| 39 |
13687 |
HEAD LAMP RETAINER Not Available Price: |
| 40 |
722-0136 |
STRIP-FOAM Not Available Price: |
| 41 |
13724 |
Heat Shield Brkt. Price: Call Us |
| 42 |
731-0465 |
BEZEL-HEADLAMP Not Available Price: |
| 43 |
710-0425 |
Truss Mach. Scr. #10-24 x .50" Lg. Price: $4.21 |
| 44 |
925-0222 |
Head Light This part replaces 725-0222. Price: $51.68 |
| 45 |
13730 |
GRILLE INSERT Not Available Price: |
| 47 |
15667 |
GRILLE Not Available Price: |
| 48 |
13569 |
HEAT SHIELD Not Available Price: |
| 50 |
710-0286 |
Truss Mach. Scr. 1/4-20 x .75" Lg. Price: $3.86 |
| 51 |
13725 |
GRILLE STRAP Not Available Price: |
| 52 |
925-0267B |
Ignition Switch This part replaces 725-0267. Price: $33.31 |
| 53 |
925-0201 |
Key This part replaces 725-0201. Price: $8.70 |
| 56 |
710-3015 |
Hex Bolt 1/4-20 x .75" Lg. This part replaces 710-0252. Price: $3.65 |
| 58 |
726-0169 |
Clip-On Receptacle Price: Call Us |
| 59 |
732-0391 |
SPRING-HOOD Not Available Price: |
| 60 |
736-0722 |
L-Wash. #10 Price: $5.81 |
| 61 |
712-0121 |
Hex Nut #10-24 Price: $3.75 |
| 62 |
13528 |
GUIDE-SPEE Not Available Price: |
| 63 |
710-0924 |
Truss Mach. Scr. 1/4-20 x.75" Lg. This part replaces 710-0255. Price: $4.02 |
| 64 |
13509 |
FRAME ASS'Y. Not Available Price: |
| 65 |
736-0242 |
Bell-Wash. 5/16" Scr. Price: $3.75 |
| 70 |
13525 |
SIDE PANEL Not Available Price: |
| 71 |
13576 |
FOOT STEP PANEL ASS'Y. (RH) Not Available Price: |
| 72 |
710-0514 |
Hex Bolt 3/8-16 x 1" Lg. This part replaces 710-0253. Price: $3.78 |
| 73 |
936-0117 |
Fl-Wash. This part replaces 736-0117. Price: $6.20 |
| 74 |
710-0194 |
HEX SCREW 3/8-16 x 3.00 GR2 Not Available Price: |
| 75 |
710-0514 |
Hex Bolt 3/8-16 x 1" Lg. This part replaces 710-0253. Price: $3.78 |
| 78 |
736-0169 |
L-Wash. 3/8" Scr. Price: $3.33 |
| 79 |
712-0798 |
Hex Nut 3/8-16 Thd. Price: $3.86 |
| 80 |
750-0261 |
SPACER Not Available Price: |
| 84 |
13066 |
BRACKET-SU Not Available Price: |
| 85 |
710-0617 |
Rd. Hd. Rib Neck Scr. 3/8-24 Price: $3.76 |
| 86 |
736-0217 |
L-Wash. 3/8" Scr. Price: $3.86 |
| 87 |
712-0241 |
Hex Nut 3/8-24 Thd.* Price: $3.86 |
| 88 |
710-05177 |
CARRIAGE BOLT 1/4-20X.50" This part replaces 710-0167. Price: $4.26 |
| 89 |
710-0260A |
Carriage Bolt 5/16-18 x.62 This part replaces 710-0260. Price: $3.71 |
| 90 |
731-0405 |
BUSHING Not Available Price: |
| 91 |
710-0618 |
SCREW-FL HD TORXB 1/4X20 x .6 Not Available Price: |
| 92 |
13529 |
TRANSMISSION COVER Not Available Price: |
| 95 |
710-1260A |
Hex Wash. Hd. Scr. 5/16-18 x .75" This part replaces 710-0601. Price: $3.34 |
| 96 |
13124 |
BRACKET-AD Not Available Price: |
| 97 |
13536 |
DASH PANEL MTG. BRKT. Not Available Price: |
