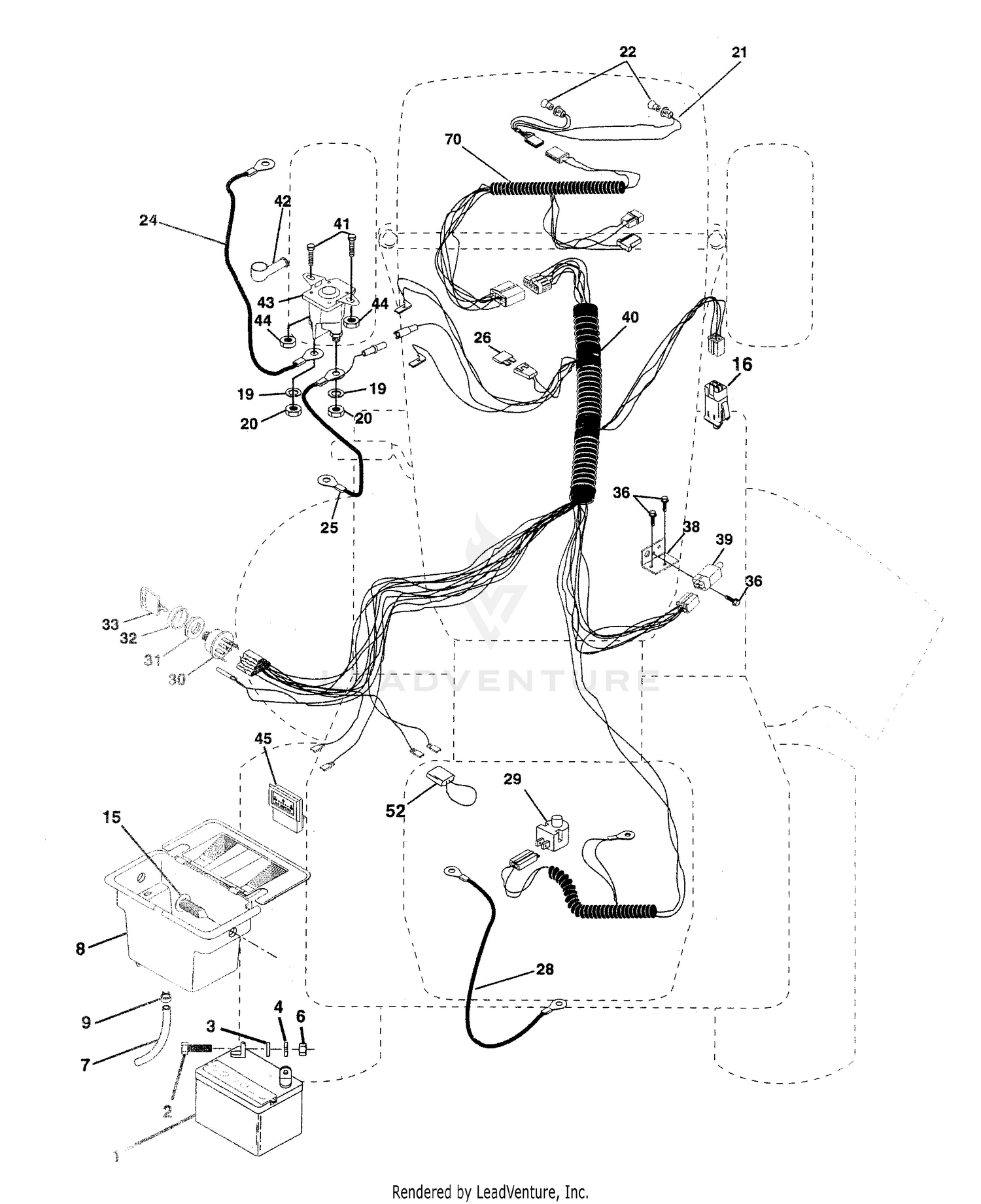

| Ref | Part Number | Description |
|---|
| 1 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532146139. Price: $149.99 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 2 |
93-2276 |
DISCONTINUED Price: Call Us |
| 3 |
3220-2 |
NUT-JAM Price: $0.50 |
| 3 |
596582301 |
Washers This part replaces 819091016. Price: $2.99 |
| 4 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 4 |
93-2010-01 |
FRAME ASM This part replaces 93-2010. Price: $3,690.13 |
| 5 |
93-8062 |
DECAL-BRAKE, PARKING Price: $4.95 |
| 6 |
33123-016 |
SCREW-CARR Price: $1.21 |
| 6 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
| 7 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 7 |
532109238 |
TUBE BATTERY DRAIN Price: $5.46 |
| 8 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 8 |
532404349 |
KIT.BOX.BATTERY.REAR.BOOT.POS This part replaces 532144940. Price: $24.99 |
| 9 |
33114-020 |
SCREW-HH Price: $0.28 |
| 9 |
532109596 |
HOSE CLAMP T Price: $3.99 |
| 10 |
32144-14 |
SCREW-HWHTF Price: $4.29 |
| 11 |
95-1628 |
DISCONTINUED Price: Call Us |
| 12 |
95-1629 |
HINGE-LOWER Price: $10.72 |
| 13 |
94-9600 |
LATCH-BRAKE Price: $101.10 |
| 14 |
93-2069 |
ROD-BRAKE Price: $15.33 |
| 15 |
532147688 |
FASTERER SNAP-IN Price: $2.99 |
| 15 |
83-1700 |
BUSHING-FLANGE Price: $7.80 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN This part replaces 532153664. Price: $19.99 |
| 16 |
93-2073-01 |
SHIELD-WHEEL, LH This part replaces 93-2073. Price: $104.03 |
| 17 |
93-2072-01 |
SHIELD-WHEEL, RH This part replaces 93-2072. Price: $92.07 |
| 18 |
283-61 |
PIN-YOKE Price: $1.56 |
| 19 |
282-2 |
YOKE Price: $30.04 |
| 19 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810090400. Price: $2.99 |
| 20 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 20 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873350400. Price: $2.99 |
| 21 |
532136850 |
HARNESS LIGHT SOCKET Price: $15.99 |
| 21 |
93-2075-01 |
BRAKE PEDAL ASM This part replaces 93-2075. Price: $188.33 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 22 |
93-7629 |
PAD-FOOT, BRAKE Price: $25.13 |
| 23 |
283-87 |
PIN-CLEVIS Price: $8.89 |
| 24 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 24 |
532004799 |
BATTERY CABLE This part replaces 532124780. Price: $8.99 |
| 25 |
532146147 |
CABLE BATTERY Price: $22.99 |
| 26 |
532108824 |
FUSE HYT Price: $4.99 |
| 28 |
532004207 |
CABLE T This part replaces 532124773. Price: $4.99 |
| 29 |
532421062 |
SWITCH.SNAPMOUNT.NC This part replaces 532121305. Price: $12.99 |
| 30 |
532140301 |
SWITCH.IGNITION.4.POSITION Price: $32.99 |
| 31 |
532124211 |
NUT IGNITION Price: $4.99 |
| 32 |
532141226 |
COVER SWITCH KEY Price: $4.99 |
| 33 |
532122147 |
KEY.MOLDED.GENERIC Price: $5.99 |
| 36 |
817021008 |
SCREW Price: $3.99 |
| 38 |
532140336 |
SWITCH BRACKET Price: $2.42 |
| 39 |
539101080 |
SWITCH, INTERLOCK This part replaces 532109553. Price: $14.99 |
| 40 |
532151212 |
HARNESS IGNITION Price: $62.65 |
| 41 |
596437001 |
Screws This part replaces 871110408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
532146154 |
KIT SOLENOID .95 This part replaces 532145673. Price: $19.99 |
| 44 |
873640400 |
Nut Keps Hex 1/4-20 Unc Price: $2.99 |
| 45 |
532122822 |
AMMETER This part replaces 532121433. Price: $17.99 |
| 52 |
532141940 |
WIRE PROTECTION LOOP Price: $4.99 |
