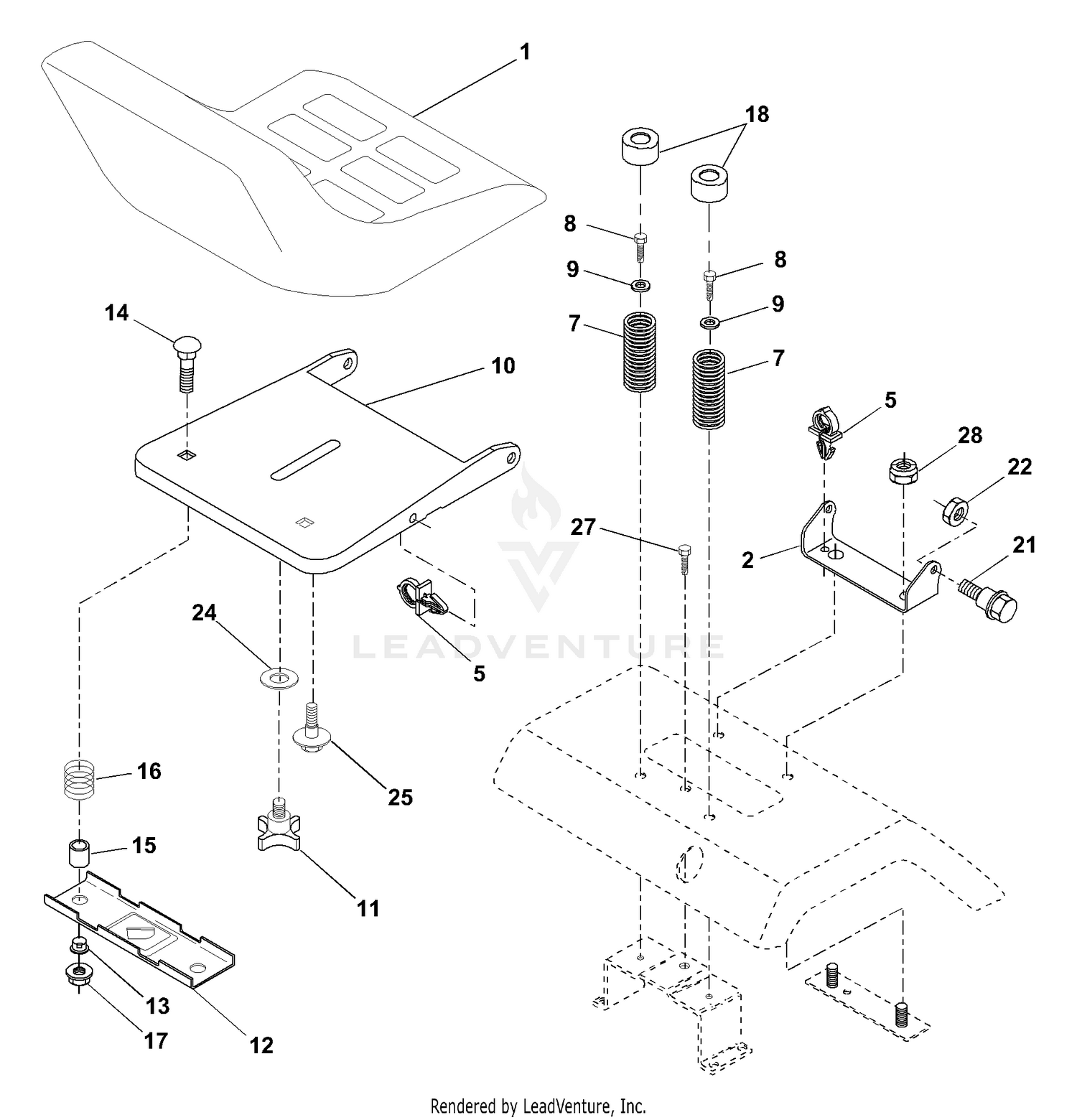

| Ref | Part Number | Description |
|---|
| 1 |
532401043 |
SEAT.XG150.BLK.KB/SLD.NO-LOGO This part replaces 532124186. Price: $219.99 |
| 1 |
59-7580 |
NUT Price: $0.95 |
| 2 |
3253-6 |
WASHER-LOCK This part replaces 59-7590. Price: $0.39 |
| 2 |
531152401 |
SERVICE KIT BRACKET SEAT PIVOT This part replaces 532140551. Price: $8.99 |
| 3 |
59-7970 |
STUD Price: $17.00 |
| 4 |
69-2060 |
SHAFT END COVER ASM This part replaces 86-6010. Price: $1,123.41 |
| 5 |
532145006 |
PUSH CLIP Price: $2.99 |
| 5 |
59-7990 |
SEAL Price: $14.58 |
| 6 |
59-8470 |
RETAINER Price: $18.19 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $5.99 |
| 7 |
69-2070 |
PLATE-FLEX This part replaces 86-6070. Price: $311.23 |
| 8 |
596030701 |
Screws This part replaces 817490508. Price: $2.99 |
| 8 |
69-2080 |
SECTION-CENTER This part replaces 86-6020. Price: $700.92 |
| 9 |
59-8590 |
SEAL Price: $31.34 |
| 9 |
596140201 |
Washers This part replaces 819131614. Price: $2.99 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532140552. Price: $17.99 |
| 10 |
59-8500 |
GEAR Price: $1,303.76 |
| 11 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT This part replaces 532120068. Price: $6.99 |
| 11 |
59-8600 |
GEAR Price: $470.56 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $8.99 |
| 12 |
86-6080 |
O-RING Price: $4.40 |
| 13 |
532121248 |
BUSHING Price: $4.99 |
| 13 |
86-6000-01 |
PUMP This part replaces 86-6030. Price: $2,799.05 |
| 14 |
59-8540 |
COUPLING Price: $240.01 |
| 14 |
872050411 |
Bolt Rdhd Sht Nk 1/4-20x1-3/8 Price: $3.99 |
| 15 |
532121249 |
SPACER SPLIT Price: $4.99 |
| 15 |
69-2200 |
O-RING This part replaces 86-6040. Price: $17.77 |
| 16 |
532123740 |
SPRING COMPRESSED Price: $3.99 |
| 16 |
86-6050 |
PLUG Price: $12.09 |
| 17 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 532123976. Price: $3.99 |
| 17 |
59-8570 |
SEAL Price: $45.56 |
| 18 |
532124238 |
CAP SPRING Price: $4.99 |
| 18 |
59-8580 |
RING-RETAINING Price: $10.21 |
| 21 |
532139888 |
BOLT.SHOULDER.5/16-18 Price: $3.99 |
| 22 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 24 |
819171912 |
WASHER Price: $3.99 |
| 25 |
532127018 |
BOLT,SHOULD Price: $4.99 |
| 27 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
