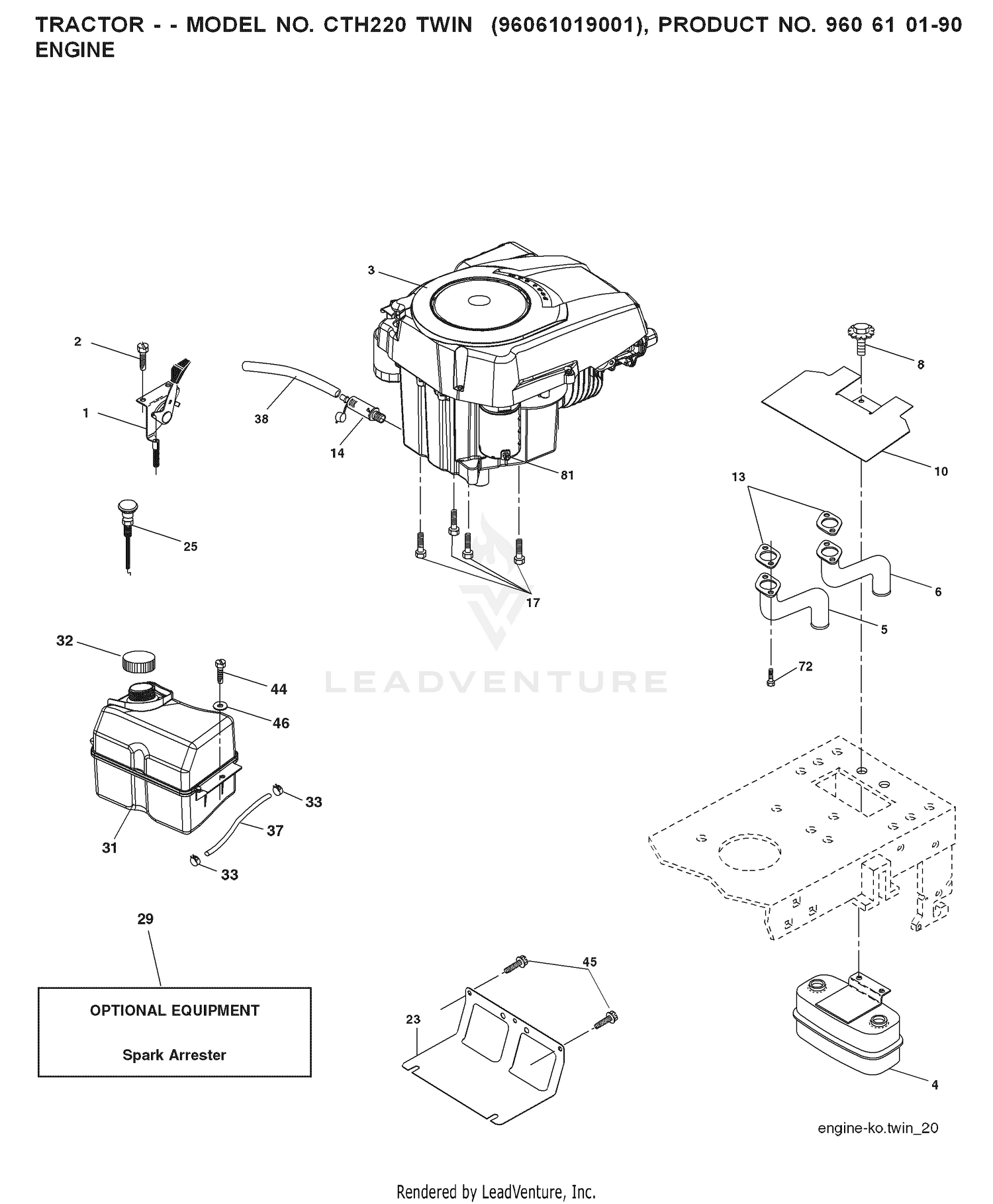

| Ref | Part Number | Description |
|---|
| 1 |
532177328 |
CONTROL.THROTTLE.LH.COBRA.KNOB This part replaces 532182937. Price: $24.99 |
| 2 |
596321701 |
Screws This part replaces 532191611. Price: $2.99 |
| 4 |
532149723 |
MUFFLER.TWIN.CYL.LOW.TONE Price: $39.99 |
| 5 |
583954501 |
PIPE.EXHAUST.LH.CV18/20 This part replaces 532146699. Price: $19.99 |
| 6 |
583954801 |
PIPE.EXHAUST.RH.CV18/20 This part replaces 532146700. Price: $17.99 |
| 8 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK Price: $4.99 |
| 10 |
112-7018 |
VALVE-INLET Price: $41.87 |
| 10 |
531154901 |
SERVICE KIT HEAT SHIELD This part replaces 532146629. Price: $11.99 |
| 14 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 17 |
817120616 |
SCREW 3/8-16X1 Price: $4.99 |
| 20 |
112-7019 |
VALVE-EXHAUST Price: $56.65 |
| 25 |
532187768 |
CONTROL.CHOKE.ERGO.BLACK This part replaces 532189541. Price: $27.99 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 30 |
98-9626 |
SPRING-VALVE Price: $10.57 |
| 31 |
581289901 |
FUEL.TANK.ASM.NON-EPA This part replaces 532185534. Price: $44.99 |
| 32 |
581075501 |
CAP.2.25'.VENTED.RATCHET.EPA This part replaces 532197725. Price: $22.99 |
| 33 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 37 |
587044820 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532137040. Price: $9.99 |
| 38 |
532428287 |
VALUE.OIL.DRAIN This part replaces 532181654. Price: $14.99 |
| 40 |
107-9092 |
RETAINER-SPRING Price: $2.58 |
| 44 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 45 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 46 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 50 |
117-7572 |
COLLET-SPRING, VALVE This part replaces 98-9390. Price: $9.43 |
| 60 |
99-8385 |
SEAL-STEM, VALVE Price: $7.29 |
| 70 |
98-9497 |
CAP-VALVE Price: $8.36 |
| 72 |
596134201 |
Screws This part replaces 532192334. Price: $2.99 |
| 80 |
105-3790 |
R-ARM SHAFT ASM Price: $28.61 |
| 81 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 90 |
100-1762 |
BOLT This part replaces 100-9265. Price: $1.68 |
| 100 |
98-9505 |
BRACKET-ARM, ROCKER Price: $22.17 |
| 110 |
105-3758 |
PIN-SPRING Price: $0.57 |
| 120 |
98-9507 |
WASHER-SHAFT, ROCKER ARM Price: $0.85 |
| 130 |
110-3832 |
WASHER-PLAIN Price: $0.71 |
| 140 |
98-9504 |
SPRING-ARM, ROCKER Price: $0.66 |
| 160 |
112-7020 |
ROCKER ARM ASM Price: $75.86 |
| 170 |
98-9502 |
SCREW-ADJUSTING Price: $2.78 |
| 180 |
98-9503 |
NUT Price: $1.33 |
| 190 |
98-9506 |
STUD Price: $5.98 |
| 200 |
98-9393 |
NUT Price: $2.72 |
