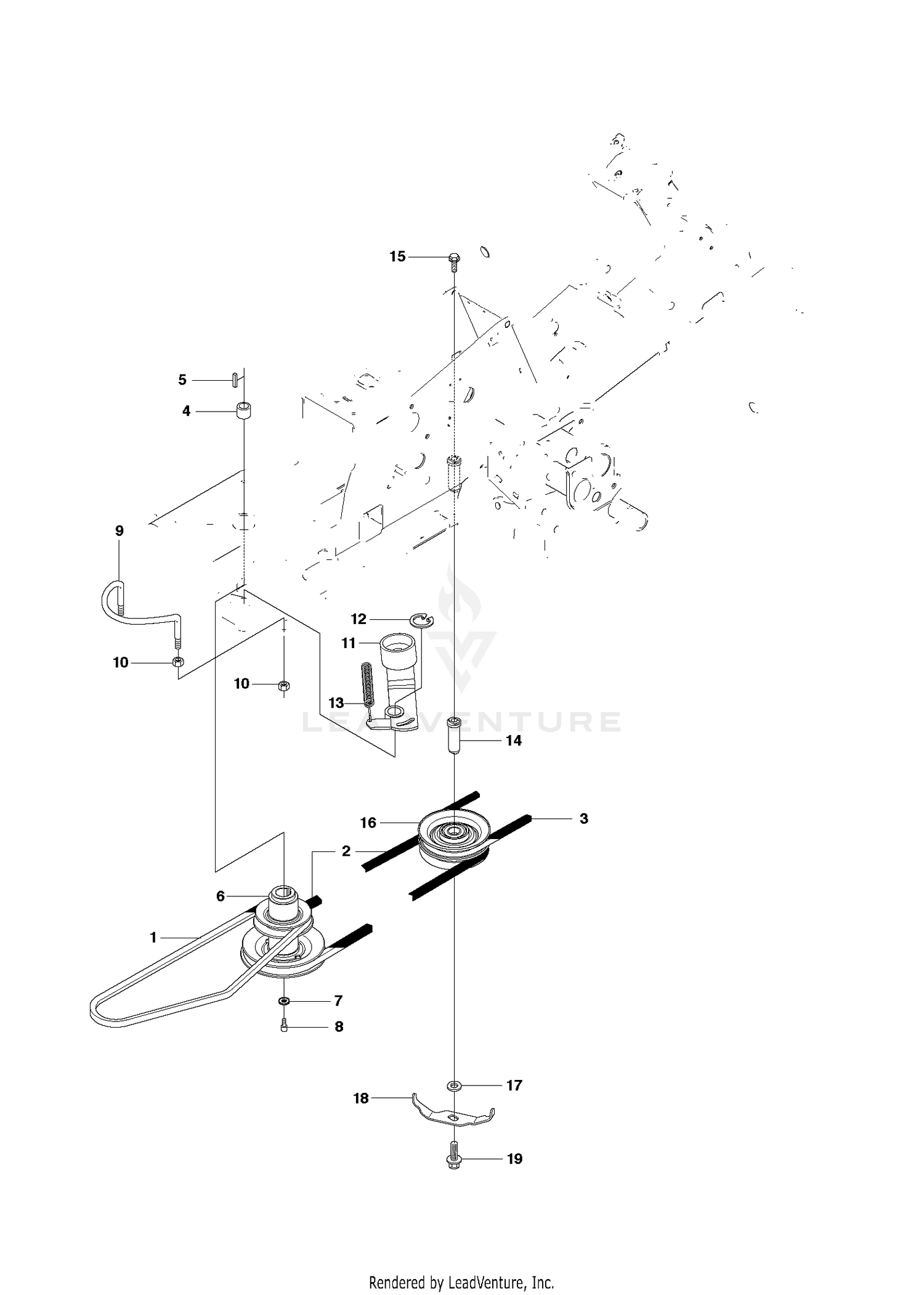

TRANSMISSION 2
Parts (18)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 589531201 | BELT Price: $27.99 |
| 2 | 599675902 | BELT KIT This part replaces 589530401. Price: $44.99 |
| 3 | 594978001 | BELT Price: $59.99 |
| 4 | 506509201 | SPACER Price: $9.99 |
| 5 | 506555901 | KEY Price: $3.99 |
| 6 | 535482401 | PULLEY Price: $69.99 |
| 8 | 506556002 | SCREW Price: $5.99 |
| 9 | 506664501 | BELT GUIDE Price: $19.99 |
| 10 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 11 | 535484401 | TENSIONER Price: $54.99 |
| 12 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 13 | 506665601 | SPRING Price: $24.99 |
| 14 | 581916401 | SHAFT This part replaces 544426101. Price: $19.99 |
| 15 | 506675402 | BOLT Price: $5.99 |
| 16 | 535482201 | PULLEY Price: $64.99 |
| 17 | 506775701 | WASHER Price: $4.99 |
| 18 | 544405301 | BELT GUIDE Price: $6.99 |
| 19 | 506597401 | BOLT This part replaces 506570105. Price: $5.99 |
