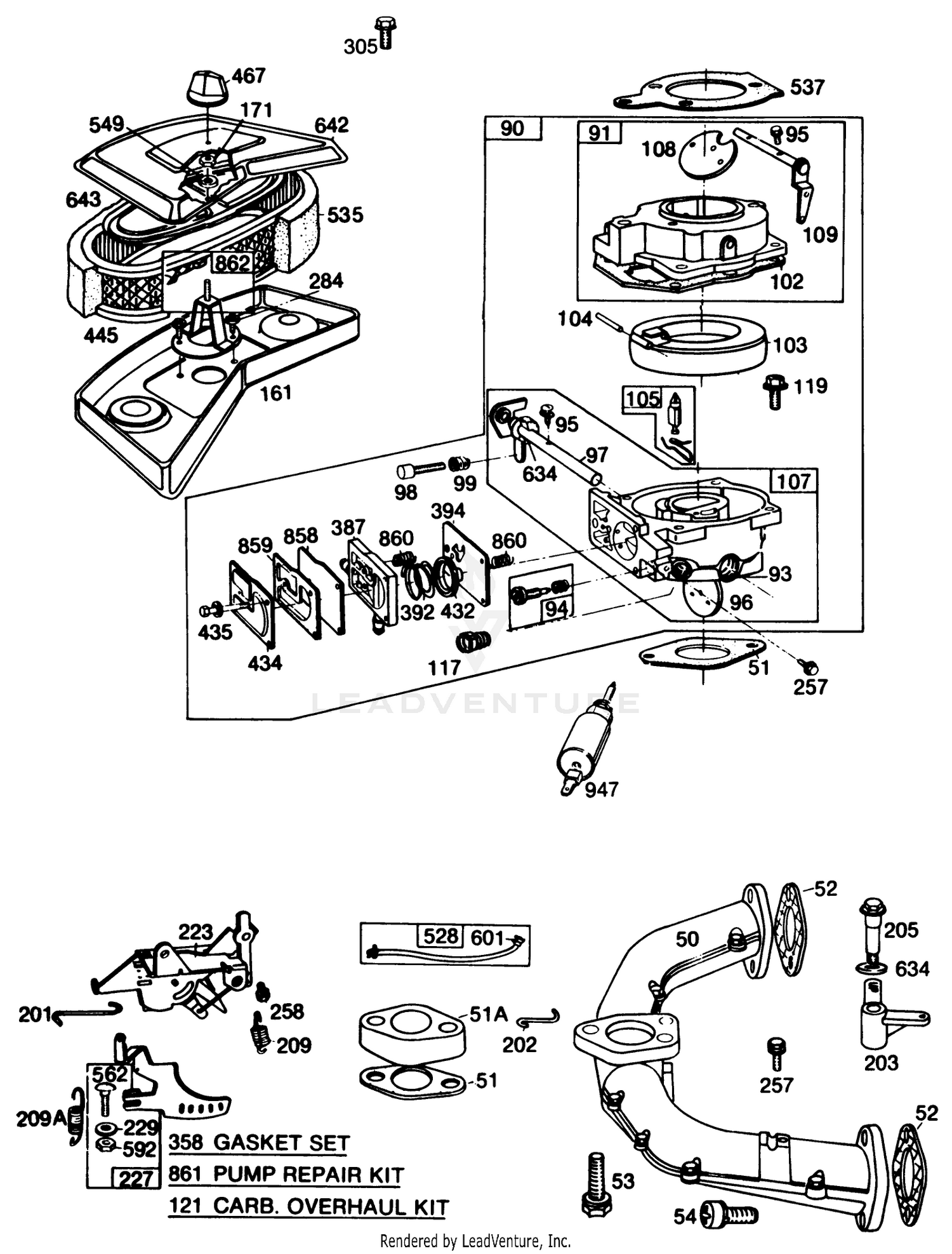

Briggs Stratton Engine Model No. 402707-0158-01 (continued) 2

Briggs  Stratton Engine Model No. 402707-0158-01 (continued) 2

Parts (64)

RefPart NumberDescription
50 212965 Mainfold Assembly-Intake Price: Call Us
51 271412 Gasket-Carb Intake Elbow Price: Call Us
51A 280319 Spacer-Carburetor Price: Call Us
52 270884 Gasket-Intake Manifold Mtg. Price: Call Us
53 93970 Screw-Hex Head (Carburetor to Manifold) Price: Call Us
54 93208 Screw-Sem Price: Call Us
90 397245 Carburetor Assembly (Remote Choke) Price: Call Us
91 399535 Body Assembly-Upper Carburetor Price: Call Us
93 231209 Bushing-Throttle Shaft Price: Call Us
94 292681 Valve Assembly Price: Call Us
95 93499 Screw Price: Call Us
96 221939 Valve-Throttle Price: Call Us
97 392672 Shaft and Lever-Throttle Price: Call Us
98 91920 Screw Price: Call Us
99 26157 Spring Price: Call Us
102 271607 Gasket-Carburetor Body Price: Call Us
103 298514 Float-Carburetor Price: Call Us
104 230896 Pin-Float Price: Call Us
105 299096 Valve-FuelInlet Price: Call Us
107 399623 Body-Lower Carburetor Price: Call Us
108 223534 Valve-Choke Price: Call Us
109 392673 Shaft and Lever-Choke Price: Call Us
117 231338 Chain Price: Call Us
119 94152 Screw Price: Call Us
121 394502 CarburetorOverhaul Kit Price: Call Us
161 222861 Body-Air Cleaner Price: Call Us
171 93715 Nut-Hex Price: Call Us
201 261586 Link-Governor Price: Call Us
202 261587 Link-Throttle Price: Call Us
203 280320 Crank-Bell Price: Call Us
205 93971 Screw-Hex Head Price: Call Us
209 261720 Spring-Governor Price: Call Us
209A 261563 Spring-Governor Idle Price: Call Us
223 394538 Plate Assy.-Governor Control Price: Call Us
227 394470 Lever Assembly-Governor Price: Call Us
229 222289 Washer Price: Call Us
257 93897 Screw Price: Call Us
258 93158 Screw Price: Call Us
284 93893 Screw Price: Call Us
305 93158 Screw Price: Call Us
358 394501 Gasket Set Price: Call Us
387 280197 Body-Pump Price: Call Us
392 261395 Spring-Pump Price: Call Us
394 270988 Diaphragm Price: Call Us
432 221377 Cap-Spring Price: Call Us
434 222615 Cover-Diaphragm Price: Call Us
435 93829 Screw-Diaphragm Cover Price: Call Us
445 394019 Cartridge-Air Cleaner Price: Call Us
467 212706 Knob-Air Cleaner Price: Call Us
528 390674 Hose-Fuel Price: Call Us
535 271271 Element-Foam Price: Call Us
537 271411 Gasket-AirCleaner Price: Call Us
549 271180 Washer Price: Call Us
562 93853 Bolt-Governor Lever Price: Call Us
592 92278 Nut-Hex Price: Call Us
601 93053 Clamp-Hose Price: Call Us
634 271013 Washer (Throttle Shaft) Price: Call Us
642 223002 Cover-Air Cleaner Price: Call Us
643 222859 Cartridge Plate-Air Cleaner Price: Call Us
858 270989 Diaphragm-Damping Price: Call Us
859 271025 Gasket-Carburetor Pump Price: Call Us
860 261358 Spring Price: Call Us
861 393397 Repair Kit-Pump Price: Call Us
862 394546 Mounting Strap Assembly-Air Cleaner Price: Call Us
