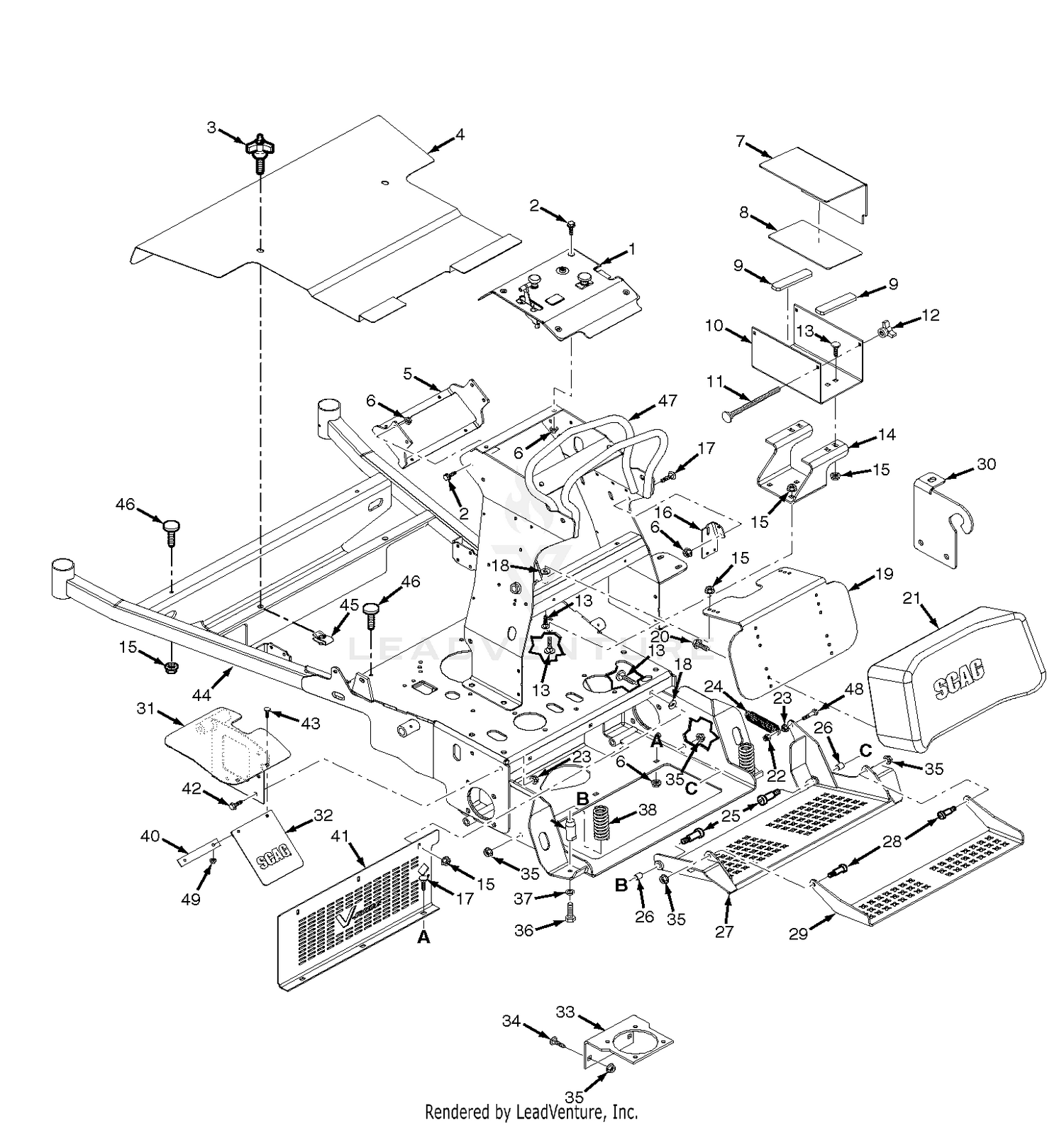

| Ref | Part Number | Description |
|---|
| 1 |
462240 |
Instrument Panel w/Decal Price: Call Us |
| 2 |
04001-06 |
Bolt, Hex Head 1/4-20 x .63 Price: Call Us |
| 3 |
481625-01 |
Knob w/Stud Price: Call Us |
| 6 |
04019-02 |
Nut, Serrated Flange 1/4-20 Price: Call Us |
| 7 |
42392 |
Battery Cover Price: Call Us |
| 8 |
48099 |
Insulation, Battery Cover Price: Call Us |
| 9 |
48661 |
Pad, Rubber Price: Call Us |
| 10 |
423308 |
Battery Box Price: Call Us |
| 11 |
04003-39 |
Bolt, Carriage 1/4-20 x 6" This part replaces 04003-01. Price: Call Us |
| 12 |
04029-01 |
Wing Nut, 1/4-20 Price: Call Us |
| 13 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 14 |
426190 |
Bracket, Battery Support This part replaces 425085. Price: Call Us |
| 15 |
04019-03 |
Nut, Serrated Flange 5/16-18 Price: Call Us |
| 16 |
425307 |
Bracket, Neutral Switch Price: Call Us |
| 17 |
04003-02 |
Bolt, Carriage 1/4-20 x 3/4" Price: Call Us |
| 18 |
04024-03 |
Nut, Push On 5/16" Price: Call Us |
| 19 |
425148 |
Bracket, Knee Pad Price: Call Us |
| 20 |
04017-05 |
Bolt, Hex Head 1/4-20 x 3/4" Price: Call Us |
| 21 |
483963 |
Knee Pad Price: Call Us |
| 22 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 23 |
04019-04 |
Nut, 3/8-16 Serrated Flange Price: Call Us |
| 24 |
48929 |
Spring Price: Call Us |
| 25 |
04009-09 |
Bolt, Shoulder 1/2 x 1" Price: Call Us |
| 26 |
483453-19 |
Bearing Price: Call Us |
| 28 |
04009-15 |
Bolt, Shoulder 3/8 x 1/4" Price: Call Us |
| 29 |
425447 |
Footplate Extension Price: Call Us |
| 30 |
425501 |
Brake Shaft Support Price: Call Us |
| 31 |
452164 |
Fender Weldment Price: Call Us |
| 32 |
481714 |
Mudflap Price: Call Us |
| 33 |
425084 |
Bracket, Oil Filter Base Price: Call Us |
| 34 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 35 |
04019-04 |
Nut, Serrated Flange 3/8-16 Price: Call Us |
| 36 |
04001-18 |
Bolt, Hex Head 3/8-16 x 3/4" Price: Call Us |
| 37 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 38 |
484041 |
Spring, Foot Platform Price: Call Us |
| 39 |
43814 |
Pin, Spring Mount Price: Call Us |
| 40 |
425534 |
Strap, Mudflap Price: Call Us |
| 41 |
425463 |
Guard, Foot Price: Call Us |
| 42 |
04001-19 |
Bolt, Hex Head 3/8-16 x 1" Price: Call Us |
| 43 |
04003-12 |
Bolt, Carriage 5/16-18 x 3/4" Price: Call Us |
| 45 |
04110-04 |
U-Nut, 3/8-16 Price: Call Us |
| 46 |
481284 |
Bumper, Rubber Price: Call Us |
| 47 |
462544 |
HANDLE ASSY W/BRACE, SVR-61 This part replaces 452165. Price: Call Us |
| 48 |
04001-168 |
Bolt, Hex Head 3/8-16 x 1-1/4" Grade 8 Price: Call Us |
