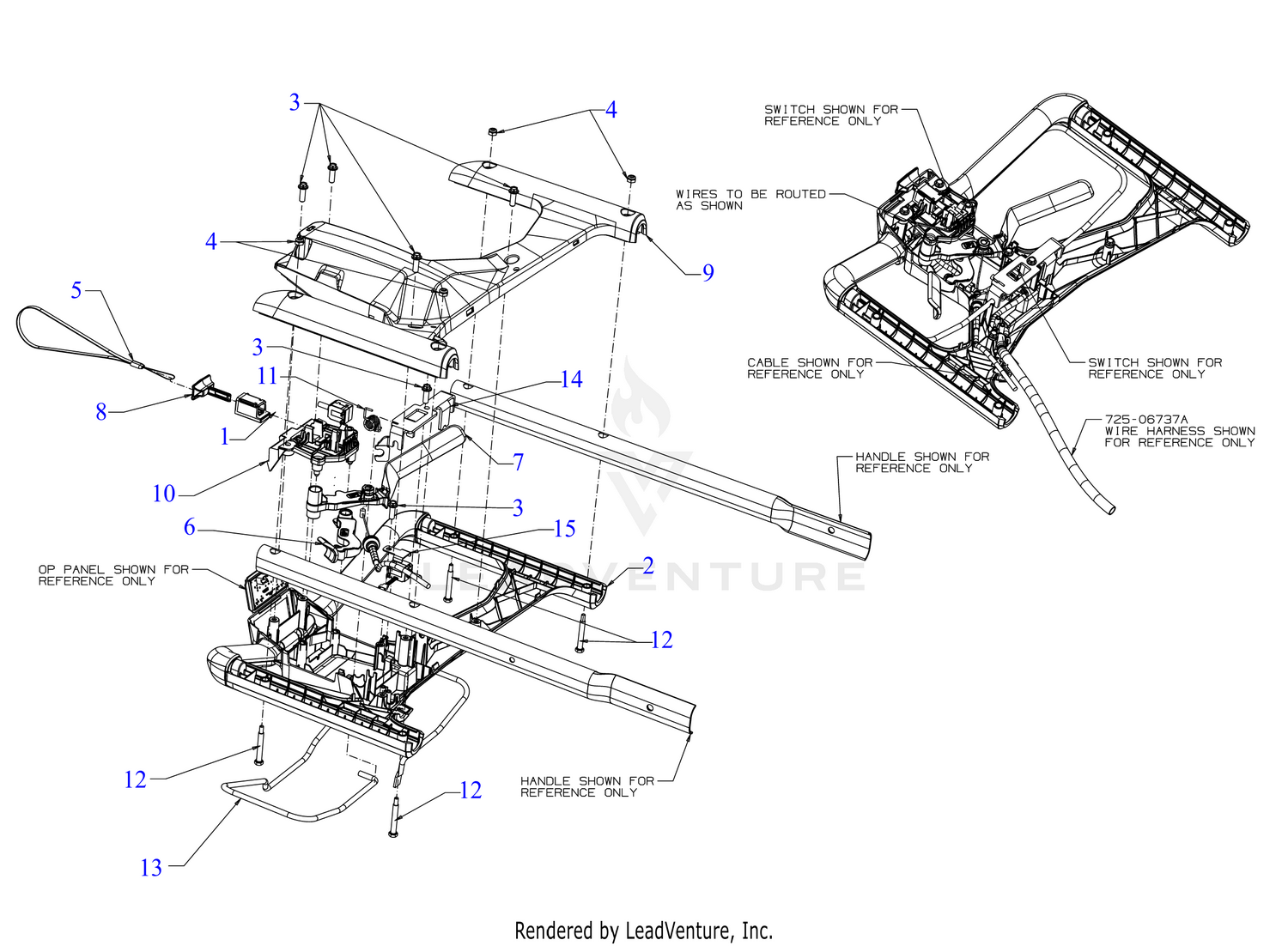

| Ref | Part Number | Description |
|---|
| 1 |
631-05392A |
KEY RECEPTICAL ASSEMBLY Not Available Price: |
| 2 |
631-05403 |
UPPER HANDLE PANEL ASSEMBLY Not Available Price: |
| 3 |
710-05108 |
SCREW 1/4 x .750 Price: $3.19 |
| 4 |
712-0161 |
HEX NUT Price: $4.02 |
| 5 |
927-05110 |
KEY STRAP CORE Not Available Price: |
| 6 |
731-07766 |
CONTROL LEVER (LH) Price: $5.78 |
| 7 |
731-08759 |
CONTROL LEVER (RH) Price: $9.29 |
| 8 |
931-11750 |
KEY CORE Not Available Price: |
| 9 |
731-12059 |
LOWER HANDLE PANEL Price: $32.25 |
| 10 |
731-12071 |
KEY RECEPTICLE BRACKET Not Available Price: |
| 11 |
732-05436 |
TORSION SPRING Not Available Price: |
| 12 |
738-05179A |
SHOULDER SCREW .25:1.63:#10-24:.32 Not Available Price: |
| 13 |
747-06627A |
CONTROL BAIL Price: $25.10 |
| 14 |
787-03650-0637 |
BAIL SUPPORT BRACKET (POWDER BLACK) Not Available Price: |
