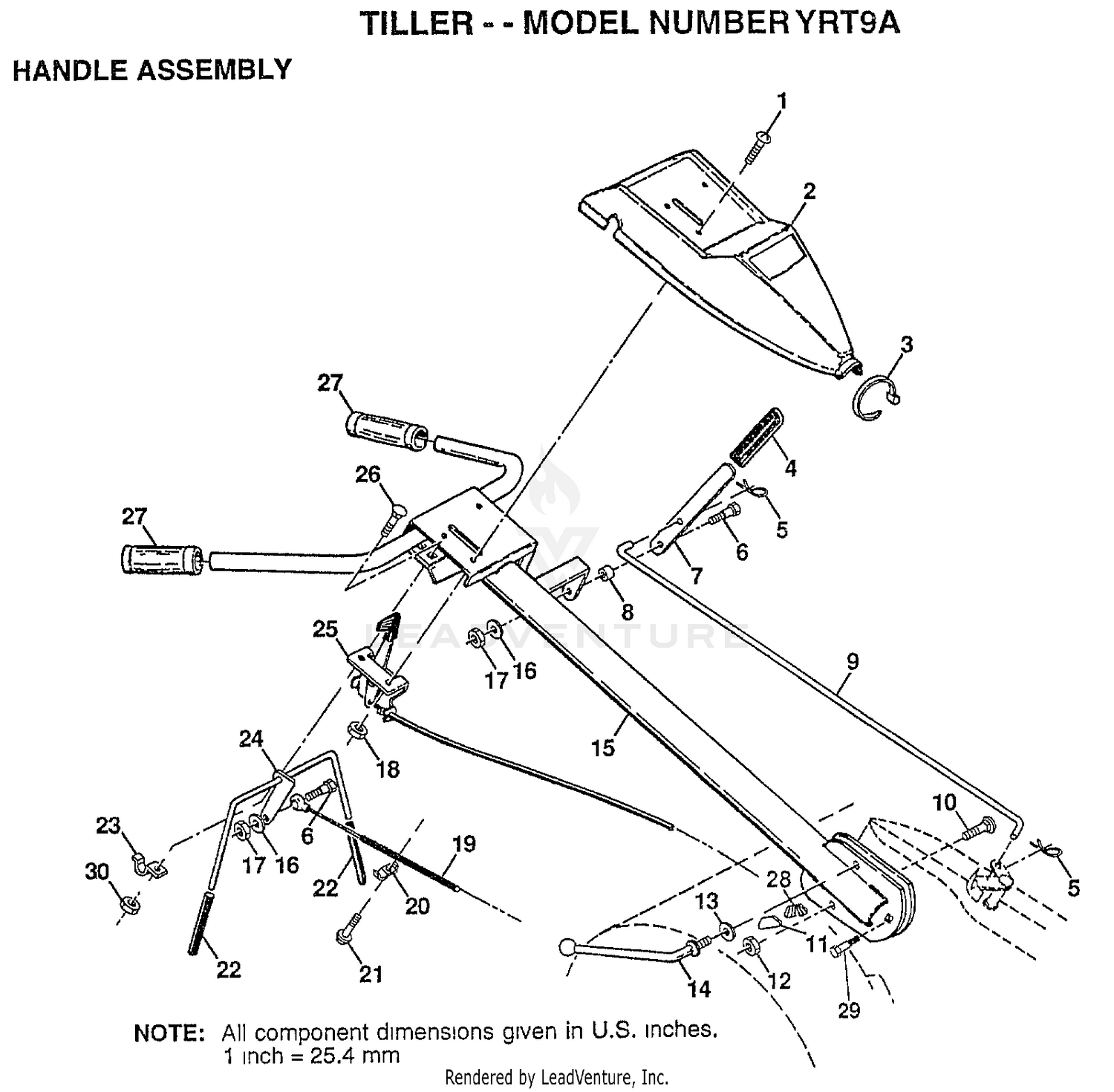

| Ref | Part Number | Description |
|---|
| 1 |
71191008 |
SCREW.PNHD.10-24 Price: Call Us |
| 3 |
104164X |
TIE CABLE CRT Price: Call Us |
| 4 |
8206H |
GRIP T Price: Call Us |
| 5 |
4497H |
RETAINER M Price: Call Us |
| 6 |
81328 |
SHOULDER BOLT ST Price: Call Us |
| 7 |
109335X |
SHIFT HANDLE CRT Price: Call Us |
| 8 |
109313X |
GROMMET CRT Price: Call Us |
| 9 |
138400 |
ROD.SHIFT Price: Call Us |
| 10 |
108-1417 |
PISTON (+0.5MM) Price: $271.74 |
| 10 |
72110608 |
BOLT D Price: Call Us |
| 10 |
98-9550 |
PISTON (STD) Price: $274.67 |
| 11 |
109229X |
LOCK CRT Price: Call Us |
| 12 |
73930600 |
LOCKNUT Price: Call Us |
| 13 |
19131611 |
WASHER CRT Price: Call Us |
| 14 |
109228X |
LEVER LOCK CRT Price: Call Us |
| 15 |
150256X428 |
SUB= 150256X431 Price: Call Us |
| 16 |
10040400 |
LOCKWASHER Price: Call Us |
| 17 |
73220400 |
SUB= 50675 Price: Call Us |
| 18 |
73731000 |
NUT Price: Call Us |
| 19 |
101251L |
CABLE-CLUTCH CRT Price: Call Us |
| 20 |
108-1404 |
PISTON RING ASM (+0.5MM) Price: $222.07 |
| 20 |
9484R |
CONDIUT CLIP T Price: Call Us |
| 20 |
98-9551 |
PISTON RING ASM (STD) Price: $220.34 |
| 21 |
86777 |
SUB= 750097 Price: Call Us |
| 22 |
102604X |
GRIP BAR CRT Price: Call Us |
| 23 |
102744X |
SUB= 102744X431 Price: Call Us |
| 25 |
138305 |
CONTROL.THROTTLE Price: Call Us |
| 26 |
72140404 |
BOLT Price: Call Us |
| 27 |
9266R |
SUB= 624A78 Price: Call Us |
| 28 |
138283 |
LOCK.HANDLE Price: Call Us |
| 29 |
150696 |
BOLT PIVOT Price: Call Us |
| 30 |
98-9513 |
PIN-PISTON Price: $13.17 |
| 40 |
98-9514 |
CIRCLIP-PIN, PISTON Price: $2.79 |
| 50 |
117-7586 |
CONNECTING ROD ASM This part replaces 98-9552. Price: $547.99 |
| 60 |
115-3014 |
BUSHING-PIN, PISTON This part replaces 98-9515. Price: $19.81 |
| 70 |
98-9517 |
BOLT-ROD, CONNECTING Price: $10.31 |
| 80 |
117-7588 |
METAL-CRANKPIN (-0.4MM) This part replaces 108-1406. Price: $49.06 |
| 80 |
98-9519 |
BEARING-ROD (-0.2MM) This part replaces 108-1405. Price: $43.73 |
| 80 |
98-9553 |
BEARING-ROD (STD) Price: $52.92 |
| 90 |
98-9642 |
CRANKSHAFT ASM Price: $4,332.74 |
| 100 |
110-3729 |
BALL This part replaces 98-7473. Price: $0.69 |
| 110 |
98-9532 |
GEAR-CRANKSHAFT Price: $169.43 |
| 120 |
98-9666 |
KEY Price: $3.58 |
| 130 |
98-9542 |
GEAR-DRIVE, OIL PUMP Price: $89.04 |
| 140 |
98-9522 |
SLEEVE-CRANKSHAFT Price: $116.47 |
| 150 |
98-9521 |
COLLAR-CRANKSHAFT Price: $84.21 |
| 160 |
105-3783 |
O-RING Price: $6.33 |
| 170 |
112-7005 |
BEARING-MAIN (STD) Price: $66.99 |
| 170 |
112-7010 |
METAL-CRANKPIN (-0.4MM) Price: $30.75 |
| 170 |
98-9528 |
BEARING-MAIN (-0.2MM) This part replaces 112-7009. Price: $15.04 |
| 180 |
112-7013 |
METAL-CRANKPIN (-0.4MM) Price: $30.75 |
| 180 |
127-0433 |
METAL-CRANKSHAFT (-0.2MM) This part replaces 112-7012. Price: $60.46 |
| 180 |
98-9524 |
METAL-CRANKSHAFT (STD SET) This part replaces 112-7011. Price: $62.26 |
| 190 |
112-7039 |
METAL-CRANKSHAFT (0.2MM) Price: $60.46 |
| 190 |
112-7040 |
METAL-CRANKSHAFT (-0.4MM) Price: $66.64 |
| 190 |
115-4121 |
METAL-CRANKSHAFT (STD) This part replaces 112-7038. Price: $86.06 |
| 200 |
98-9413 |
BEARING-THRUST (STD) This part replaces 99-6864. Price: $16.90 |
| 200 |
99-6865 |
METAL-SIDE, O/S (0.2MM) Price: $27.11 |
| 200 |
99-6866 |
METAL-SIDE, O/S (0.4MM) Price: $27.11 |
| 210 |
127-0437 |
METAL-SIDE (+0.2MM) This part replaces 99-6868. Price: $18.42 |
| 210 |
98-9688 |
BEARING-THRUST (STD) This part replaces 99-6867. Price: $16.90 |
