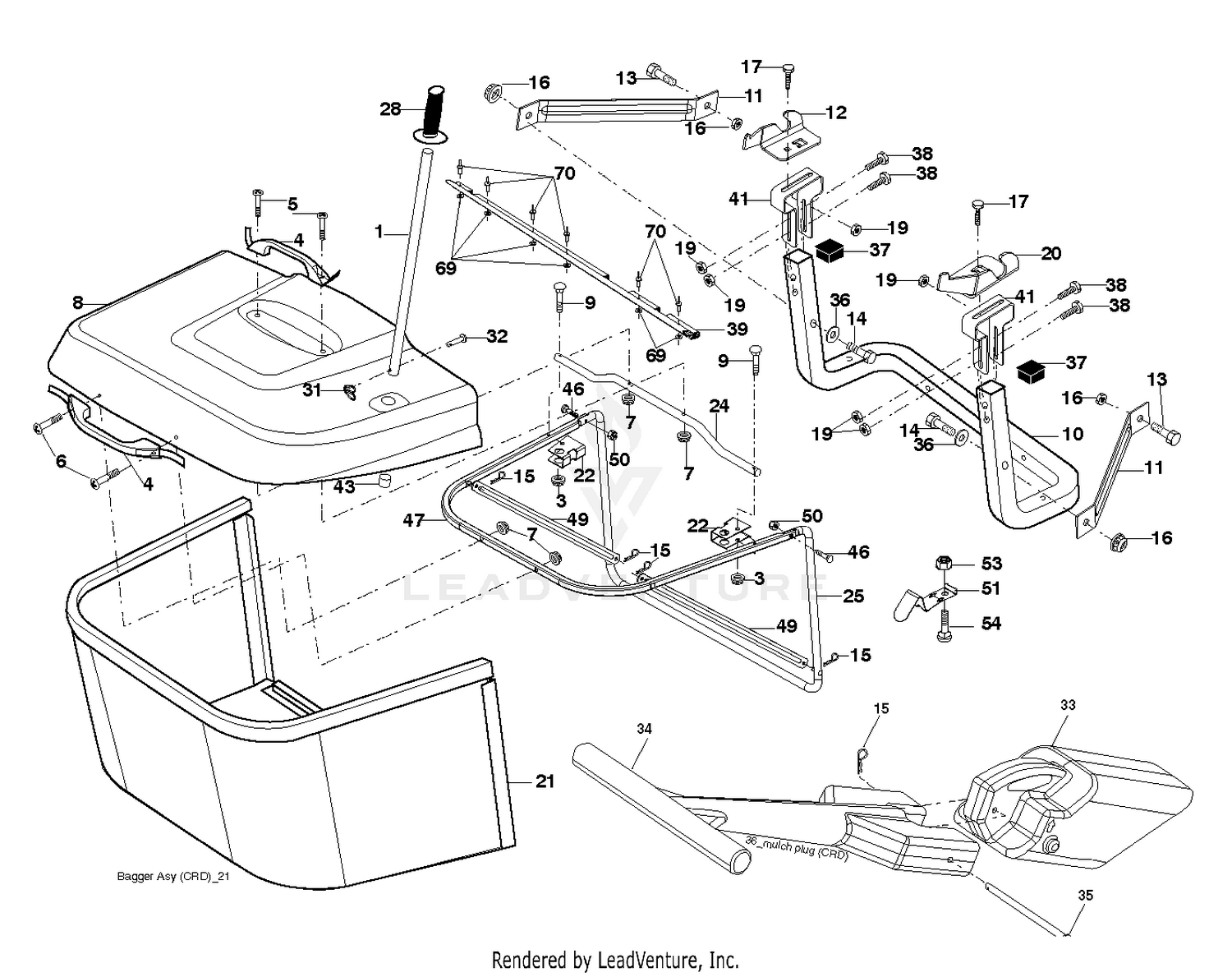

| Ref | Part Number | Description |
|---|
| 1 |
532428610 |
TUBE.PNT.HDL.BAGGER. Price: $11.99 |
| 3 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 532123976. Price: $2.69 |
| 4 |
532169916 |
HANDLE Price: $4.99 |
| 5 |
874981024 |
SCREW.PAN.HEAD Price: $5.99 |
| 6 |
532750029 |
SCREW This part replaces 874981032. Price: $3.99 |
| 7 |
86-7330 |
SEAL KIT Price: $95.00 |
| 7 |
873401000 |
NUT Price: $2.99 |
| 8 |
532436933 |
Price: $128.99 |
| 9 |
872140418 |
Bolt Carr. 1/4-20 x 2.25d x Gr. 5 Price: $6.99 |
| 10 |
532181282 |
Tube Support Bagger CRD Price: $35.99 |
| 11 |
532165719 |
BRACKET Price: $7.99 |
| 12 |
532188848 |
Bracket Pivot LH Price: $1.99 |
| 13 |
874780612 |
Screw, Hex Wsh. Thrdrol. 3/8-16 x 3/4 This part replaces 874760612. Price: $3.99 |
| 14 |
874520636 |
BOLT-HEX EAK Price: $3.99 |
| 15 |
532085902 |
RETAINER SPRING This part replaces 532124670. Price: $1.99 |
| 16 |
532409148 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $2.69 |
| 17 |
539990316 |
RHSNB.5/16-18.X3/4.GR.5.ZD This part replaces 872140506. Price: $1.49 |
| 19 |
873900500 |
NUT LOCK HEX FLANGE 5/16-18 Price: $2.99 |
| 20 |
532188847 |
BRKT.PIVOT.RH.CRD Price: $3.99 |
| 21 |
532406180 |
BAGGER.ASM.CRD.2007 Price: $105.99 |
| 22 |
532428236 |
BRACKET.BAGGER.SD. Price: $3.99 |
| 24 |
532165783 |
TUBE Price: $14.99 |
| 25 |
532193705 |
Tube Front Bagger CRD Price: $31.99 |
| 28 |
532165787 |
GRIP.HANDLE.BLACK Price: $2.99 |
| 31 |
532169484 |
RETAINER CLIP Price: $4.99 |
| 32 |
532126875 |
RIVET,DRILLED Price: $2.99 |
| 33 |
532428683 |
MULCHING.PLUG.1078.CRD.NON-TEX Price: $33.99 |
| 34 |
532165570 |
HANDLE Price: $36.99 |
| 35 |
532165572 |
PIN Price: $11.99 |
| 36 |
819132012 |
WASHER Price: $2.99 |
| 37 |
532444848 |
Price: $1.99 |
| 38 |
872010520 |
BOLT.5/16-18X2.5 Price: $3.99 |
| 39 |
532416257 |
SEAL.BAGGER.CRD Price: $26.99 |
| 41 |
532432755 |
BRACKET.BAGGER.SD. Price: $6.99 |
| 43 |
532174083 |
PLUG, TUBING END Price: $3.99 |
| 46 |
872110510 |
BOLT.CARRIAGE.5/16-18 Price: $3.99 |
| 47 |
532193704 |
Tube Upper Price: $35.99 |
| 49 |
532193305 |
Bar Spreader Price: $2.99 |
| 50 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK Price: $2.69 |
| 51 |
532199903 |
Latch Spring Price: $1.99 |
| 53 |
873680400 |
Nut Crownlock 1/4-20 unc This part replaces 873510400. Price: $2.69 |
| 54 |
872110407 |
BOLT, HEX HEAD This part replaces 872140406. Price: $2.99 |
| 69 |
575180801 |
MEGA-FIRE ELECTR This part replaces 532435611. Price: $2.99 |
