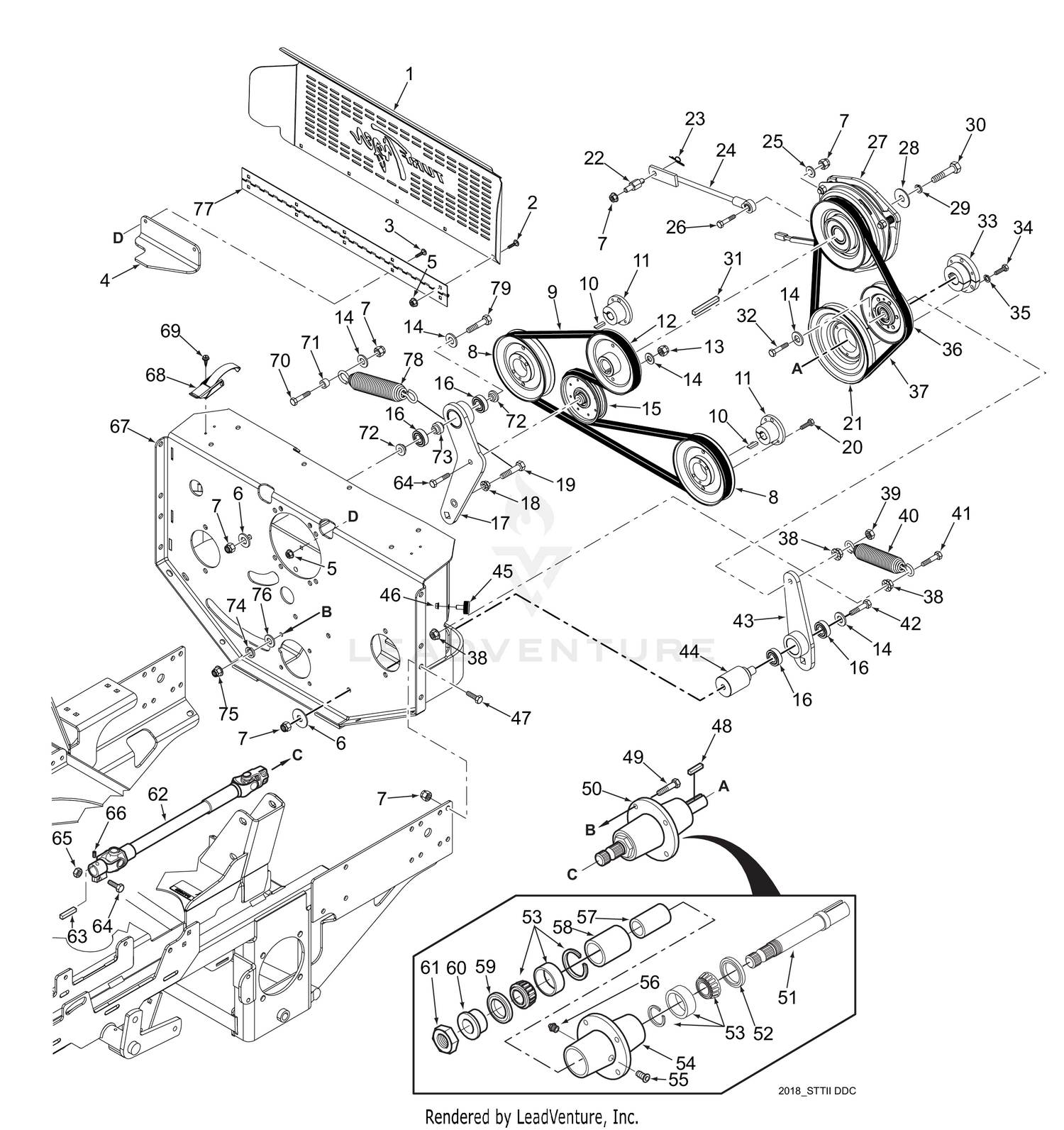

| Ref | Part Number | Description |
|---|
| 1 |
427106 |
Cover, Rear Price: Call Us |
| 2 |
04003-07 |
Bolt, Carriage 1/4-20 x 1/2" Price: Call Us |
| 3 |
04003-02 |
Serr. Fl. Hex Head CPSCR, 1/4-20 x 3/4" Price: Call Us |
| 4 |
425214 |
Bracket, Idler Stop Price: Call Us |
| 5 |
04019-02 |
NUT, 1/4-20 SERRATED FLANGE HEX HEAD Price: Call Us |
| 6 |
04041-11 |
Flatwasher, 3/8-.406 x 1-1-1/2 x 7 Gauge Price: Call Us |
| 7 |
04021-09 |
HEX NUT, ELASTIC STOP LOCK, 3/8-16 Price: Call Us |
| 8 |
482744 |
Pulley, 5.75 O.D. (Gasoline Engines) Price: Call Us |
| 9 |
485909 |
Belt, STTII Pump Drive (Gasoline Engines) Price: Call Us |
| 10 |
04063-27 |
Key, 5mm x 5mm x 30mm Price: Call Us |
| 11 |
481884 |
Tapered Hub, 17mm Bore Price: Call Us |
| 12 |
483675 |
Pulley, 5.67 O.D. (Kawasaki & Kohler Only) Price: Call Us |
| 13 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 14 |
04043-04 |
Flatwasher, 3/8 (.391 x .938 x .105 HD) Grade 8 Price: Call Us |
| 15 |
483214 |
Pulley, Idler 4†Dia. Price: Call Us |
| 16 |
48224 |
BEARINGS, BALL, NEUTRAL RETURN Price: Call Us |
| 18 |
04019-06 |
Nut, Hex Serrated Flange 1/2-13 Price: Call Us |
| 19 |
04001-185 |
Bolt, Hex Head 1/2-13 x 2†Grd 8 Price: Call Us |
| 20 |
04001-172 |
Bolt, Hex Head 1/4-20 x 1" Grade 8 Black Price: Call Us |
| 21 |
482949 |
Pulley, 6.70" O.D. Tapered Bore Price: Call Us |
| 22 |
43651 |
STUD, ANTI-ROTATION Price: Call Us |
| 23 |
04069-01 |
Pin, Rue Cotter 3/8" Diameter Price: Call Us |
| 24 |
482845 |
Rod Assembly, Clutch Anti-Rotation Price: Call Us |
| 25 |
04040-12 |
Flatwasher, 3/8-.438 x 1.00 x .083 Price: Call Us |
| 26 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 27 |
461661 |
Electric Clutch w/Tag - GT-3.5 (FX850) Price: Call Us |
| 28 |
04041-28 |
Flatwasher, 7/16-.469 x 1.75 x .25 (48, 52) Price: Call Us |
| 29 |
04030-05 |
Lockwasher, 7/16” Spring Price: Call Us |
| 30 |
04102-04 |
Bolt, Hex Head 7/16-20 x 2-1/2" (Kohler) Price: Call Us |
| 31 |
04063-23 |
Key, 1/4 x 1/4 x 3-1/4” Price: Call Us |
| 32 |
04001-170 |
Bolt, Hex Head 3/8-16 x 2-1/2" 1.5 Thread Grd.8 Price: Call Us |
| 33 |
481536 |
Tapered Hub, 1.00 Bore Price: Call Us |
| 34 |
04001-109 |
BOLT, HEX HEAD, 1/4-20 X 1-3/8(FULL THREAD) Price: Call Us |
| 35 |
04030-02 |
Lockwasher, 1/4†Spring Price: Call Us |
| 36 |
48181 |
IDLER PULLEY, "V" GROOVE Price: Call Us |
| 37 |
482876 |
Belt, Pump Drive - Kubota Price: Call Us |
| 38 |
04019-04 |
NUT, 3/8-16 SERRATED FLANGE HEX HEAD Price: Call Us |
| 39 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 40 |
484754 |
Spring, PTO (Gasoline Engines) Price: Call Us |
| 41 |
04001-136 |
Bolt, Hex Head 3/8-16 x 1-1/2" Grade 8 Black Price: Call Us |
| 42 |
04001-171 |
Bolt, Hex Head 3/8-16 x 4-1/2" Grade 8 Black Price: Call Us |
| 44 |
43632 |
Pivot, Idler - PTO Price: Call Us |
| 45 |
481284 |
Bumper, Rubber 5/16-18 x 5/8" Price: Call Us |
| 46 |
04019-03 |
Nut, Serrated Flange 5/16-18 (Right Front Engine Mounting, Briggs and Kohler Only) Price: Call Us |
| 47 |
04001-19 |
Bolt, Hex Head, 3/8-16 x 1 Gr. 5 Price: Call Us |
| 48 |
04063-06 |
KEY 1/4 X 1/4 X 1 1/2"(FOR 1" CRANKSHAFT Price: Call Us |
| 49 |
04001-176 |
Bolt, Hex Head 5/16-18 x 1-3/4" Grade 8 Price: Call Us |
| 50 |
461697 |
Spindle Assembly, Deck Drive Price: Call Us |
| 51 |
43534 |
Shaft, Deck Drive Price: Call Us |
| 52 |
481024 |
SEAL, 2.00 O.D. X 1.50 BORE Price: Call Us |
| 53 |
481022 |
Tapered Bearing Set (Two Bearings W/Race) Price: Call Us |
| 54 |
43644 |
Housing, Spindle Price: Call Us |
| 55 |
48677 |
RELIEF FITTING, TAPERED BEARING SPINDLE Price: Call Us |
| 56 |
48114-04 |
GREASE FITTING, STR. 1/4-28 SELF TAP. Price: Call Us |
| 57 |
43296 |
SLEEVE, CUTTER SPINDLE Price: Call Us |
| 58 |
43312 |
Spacer, Outside, Cutter Spindle Price: Call Us |
| 59 |
481025 |
Seal, 2.00" O.D. x 1.625" Bore Price: Call Us |
| 60 |
43297 |
SPINDLE BUSHING, BOTTOM Price: Call Us |
| 61 |
481035 |
Nut , Spec ial 1 -1/ 1 6 - 1 8 Price: Call Us |
| 62 |
482424 |
Driveshaft (Air Cooled Engine) Price: Call Us |
| 63 |
04063-20 |
Key, 1/4" x 1/4" x 1" Clutch Mtg. Price: Call Us |
| 64 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" (Kohler EFI) Price: Call Us |
| 65 |
04021-05 |
Bolt, Hex Head 3/8-16 x 1" Ser. Flg. Price: Call Us |
| 66 |
04012-06 |
Set Screw, 3/8-16 x 1/2" Internal Hex Price: Call Us |
| 67 |
452864 |
Pump Mounting Plate Weldment (Gasoline) Price: Call Us |
| 68 |
481309 |
LATCH, HOOD Price: Call Us |
| 69 |
04011-11 |
Screw, #10-32 x .563 Shakeproof Price: Call Us |
| 70 |
04001-20 |
Bolt, Hex Head 3/8-16 x 1-1/2" B&S 32BV Price: Call Us |
| 71 |
431051 |
Spacer, Spring Anchor Price: Call Us |
| 72 |
431049 |
Spacer, Controls Price: Call Us |
| 73 |
431050 |
Spacer, Bearing Price: Call Us |
| 74 |
04030-03 |
Lockwasher, 5/16 (.317 x .586 x .078) Helical Spring Price: Call Us |
| 75 |
04021-22 |
Lock Nut, 5/16-18 Elastic Stop Grade 8 Price: Call Us |
| 76 |
04040-15 |
Flatwasher, 5/16-.375 x .875 x .083 (35BV & 37BV-EFI) Price: Call Us |
| 77 |
481531 |
Hinge, Rear Belt Guard Price: Call Us |
| 78 |
484754 |
Spring, PTO (Gasoline Engines) Price: Call Us |
| 452886 |
Pump |
Mounting Plate Weldment (Diesel) Price: Call Us 452886 |
| 461826 |
Electric |
Clutch w/Tag - GT-5 (ECV860, ECV940) Price: Call Us 461826 |
| 462011 |
Clutch |
Assembly, GT3.5 (Diesel Engine) Price: Call Us 462011 |
| 483430 |
Spring, |
PTO (Diesel Engine) Price: Call Us 483430 |
| 485928 |
Belt, |
STTII Pump Drive (Diesel Engine) Price: Call Us 485928 |
