| Ref | Part Number | Description |
|---|
| 1 |
110-6120 |
ENGINE ASSEMBLY-REPLACEMENT This part replaces 95-6499. Price: $22,658.55 |
| 2 |
99-8879 |
COUPLING-SPRING, CENTER Price: $643.95 |
| 3 |
95-6481-03 |
PLATE-ADAPTER, PUMP Price: $909.81 |
| 4 |
98-0655 |
HYD HOSE ASM Price: $149.15 |
| 5 |
323-7 |
SCREW-HH Price: $0.65 |
| 6 |
3253-21 |
WASHER-LOCK Price: $0.28 |
| 7 |
353-992 |
FLANGE-SPLIT Price: $20.28 |
| 8 |
108-8047 |
GEAR PUMP REPLACEMENT KIT This part replaces 69-2050-03. Price: $4,136.66 |
| 9 |
354-42 |
FLANGE-SPLIT Price: $14.79 |
| 10 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 11 |
69-5640 |
HOSE-RETURN Price: $36.06 |
| 12 |
99-4969 |
TUBE-SUCTION Price: $139.85 |
| 13 |
20-4840 |
CLAMP-MUFFLER Price: $15.06 |
| 14 |
32152-2 |
NUT-LOCK, CONE Price: $1.79 |
| 15 |
323-6 |
SCREW-HH Price: $0.66 |
| 16 |
69-9220-03 |
BRACKET-TUBE, SUCTION Price: $23.66 |
| 17 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 18 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 19 |
3217-6 |
NUT-HEX Price: $1.19 |
| 20 |
325-6 |
SCREW-HH Price: $1.42 |
| 21 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 22 |
3213-2 |
SCREW-HH Price: $1.90 |
| 23 |
33115-030 |
SCREW-HH Price: $0.68 |
| 24 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 25 |
33115-025 |
SCREW-HH Price: $0.61 |
| 26 |
321-6 |
SCREW-HH Price: $0.25 |
| 27 |
95-6465-03 |
RH REAR MOUNT ASM Price: $93.67 |
| 28 |
323-10 |
SCREW-HH Price: $0.89 |
| 29 |
32149-2 |
NUT-KEPS Price: $2.39 |
| 30 |
69-8490-03 |
BRACKET-CABLE, THROTTLE Price: $22.94 |
| 31 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 32 |
33113-016 |
SCREW-HH Price: $0.34 |
| 33 |
32128-21 |
NUT-HF Price: $0.39 |
| 34 |
95-6489-03 |
DISCONTINUED Price: Call Us |
| 35 |
321-4 |
SCREW-HH Price: $0.99 |
| 36 |
33116-050 |
SCREW-HH Price: $15.13 |
| 38 |
95-6470-03 |
LH FRONT MOUNT ASM Price: $109.73 |
| 39 |
32128-23 |
NUT-HF Price: $1.51 |
| 40 |
98-3023 |
WASHER Price: $10.18 |
| 41 |
95-6486 |
SPACER-MOUNT Price: $11.33 |
| 42 |
98-0830 |
RETAINER-MOUNT Price: $19.21 |
| 43 |
98-3024 |
MOUNT-ENGINE Price: $103.88 |
| 44 |
323-38 |
SCREW-HH Price: $2.62 |
| 45 |
325-9 |
SCREW-HH Price: $1.87 |
| 46 |
33116-030 |
SCREW-HH Price: $1.56 |
| 47 |
95-6467-01 |
RH Mount ASM Price: Call Us |
| 48 |
95-6465-03 |
RH REAR MOUNT ASM Price: $93.67 |
| 49 |
282-28 |
CLEVIS-ADJUSTABLE Price: $58.02 |
| 50 |
77-2990 |
CABLE-THROTTLE Price: $348.96 |
| 51 |
69-0090 |
PIN-THROTTLE Price: $18.93 |
| 52 |
3272-1 |
PIN-COTTER Price: $0.25 |
| 54 |
93-3526 |
SWITCH Price: $177.42 |
| 55 |
67-4510 |
GUAGE-TEMP, WATER Price: $151.90 |
| 56 |
51-5070 |
SWITCH-THERMAL Price: $149.69 |
| 57 |
69-1750 |
DISCONTINUED Price: Call Us |
| 58 |
99-4968 |
TUBE-SUCTION Price: $199.94 |

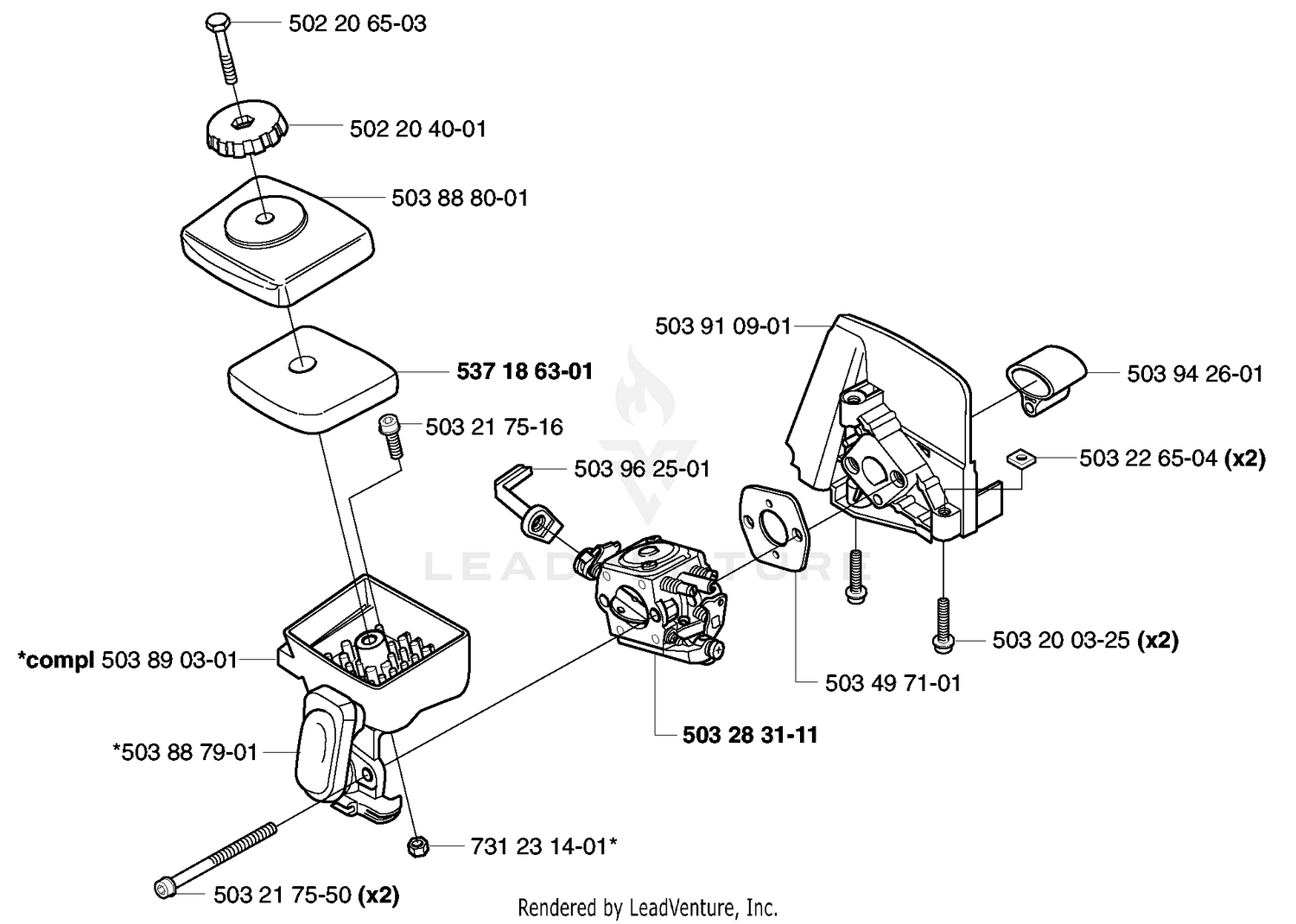

| 502204001 |
502204001 |
KNOB Price: $4.99 |
| 502206503 |
502206503 |
SCREW Price: $2.99 |
| 503200325 |
503200325 |
SCREW Price: $3.99 |
| 503217516 |
503217516 |
SCREW Price: $2.99 |
| 503217550 |
503217550 |
SCREW Price: $3.99 |
| 503226504 |
503226504 |
NUT Price: $4.99 |
| 503283111 |
588171156 |
KIT CARB This part replaces 503283111. Price: $39.99 |
| 503497101 |
503497101 |
GASKET Price: $4.99 |
| 503887901 |
503887901 |
CAP FILTER HOLDER Price: $4.99 |
| 503888001 |
503888001 |
AIR FILTER COVER Price: $7.99 |
| 503890301 |
503890301 |
FILTER HOLDER Price: $9.99 |
| 503910901 |
503910901 |
PARTITION Price: $12.99 |
| 503942601 |
503942601 |
PIPE Price: $8.99 |
| 503962501 |
503962501 |
CHOKE CONTROL Price: $6.99 |
| 537186301 |
537186301 |
AIR FILTER (READY-OILED) Price: $5.99 |
