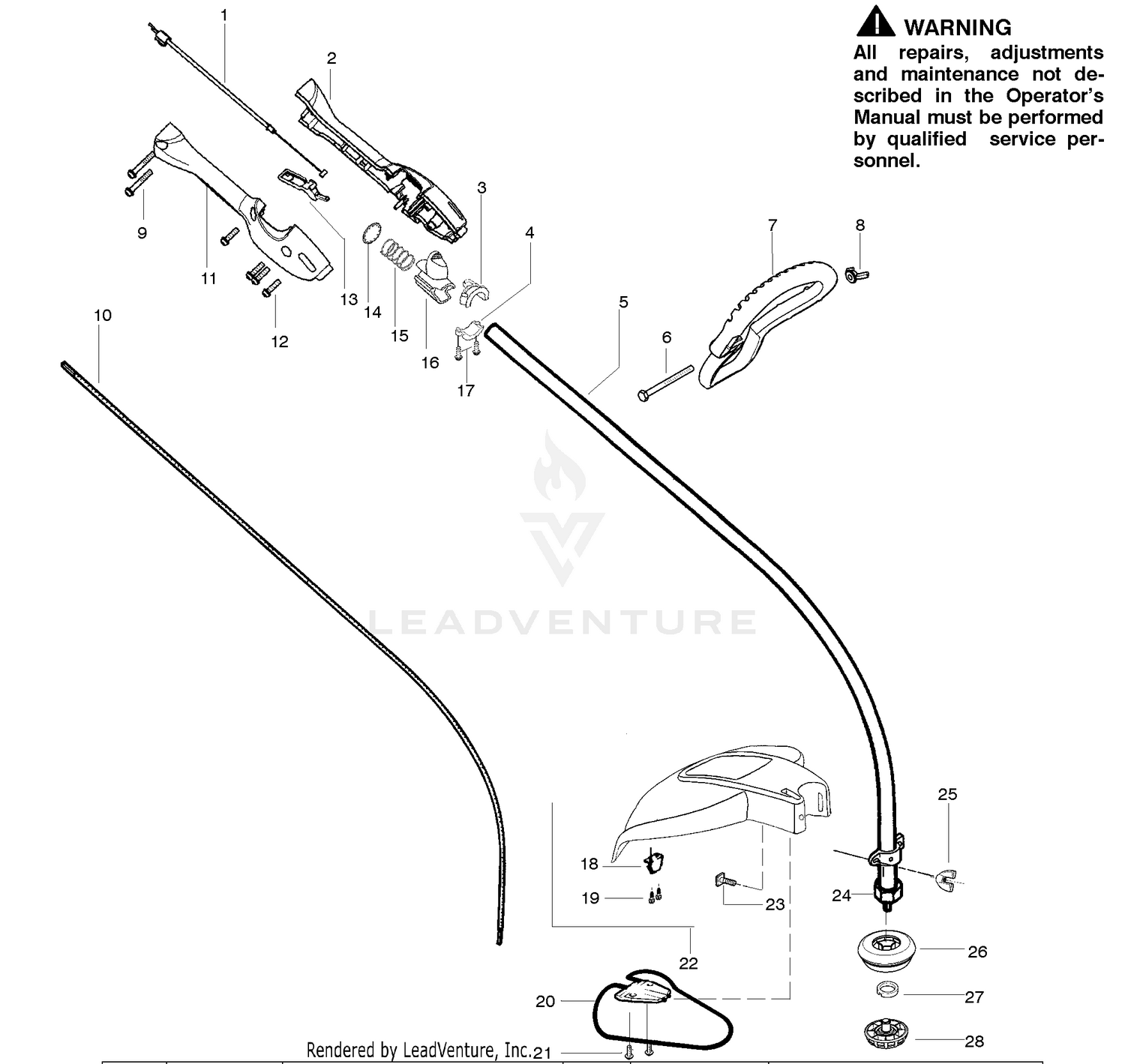

Handle & Controls
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 530057785 | Assy-Throttle Cable Price: $6.99 |
| 2 | 530058747 | Throttle Hsg. (Left) Price: $5.99 |
| 3 | 530057562 | Locator- left Price: $2.99 |
| 4 | 530057563 | Locator- right Price: $2.99 |
| 6 | 530016422 | Bolt-Handle Price: $1.99 |
| 7 | 530058752 | Handle-Assist Price: $6.99 |
| 8 | 530401992 | Wingnut This part replaces 530016152. Price: $2.99 |
| 9 | 530016406 | Screw Price: $1.99 |
| 10 | 545007502 | Shaft- Flex This part replaces 530095939. Price: $11.99 |
| 11 | 530058748 | Throttle Hsg. (Right) Price: $5.99 |
| 12 | 530015814 | Screw Price: $1.49 |
| 13 | 530058000 | Trigger Price: $2.99 |
| 14 | 530016405 | Nut-Push Price: $1.99 |
| 15 | 530016407 | Spring-Actuator Price: $1.99 |
| 16 | 530057551 | Actuator Price: $2.99 |
| 17 | 530016386 | Screw This part replaces 530015810. Price: $5.99 |
| 18 | 530052287 | Line Limiter Price: $1.99 |
| 19 | 530015814 | Screw-Line Limiter Price: $1.49 |
| 20 | 530054459 | Assy-Wire Guard Price: $3.99 |
| 21 | 530016179 | Screw Price: $1.99 |
| 23 | 530015820 | Bolt-Shield Price: $1.99 |
| 24 | 530057559 | Dust Cup Price: $2.99 |
| 25 | 530401992 | Wingnut This part replaces 530016152. Price: $2.99 |
| 27 | 530403949 | Guide-Line Price: $2.99 |
| 28 | 530054223 | Assy-Cap Price: $5.99 |
