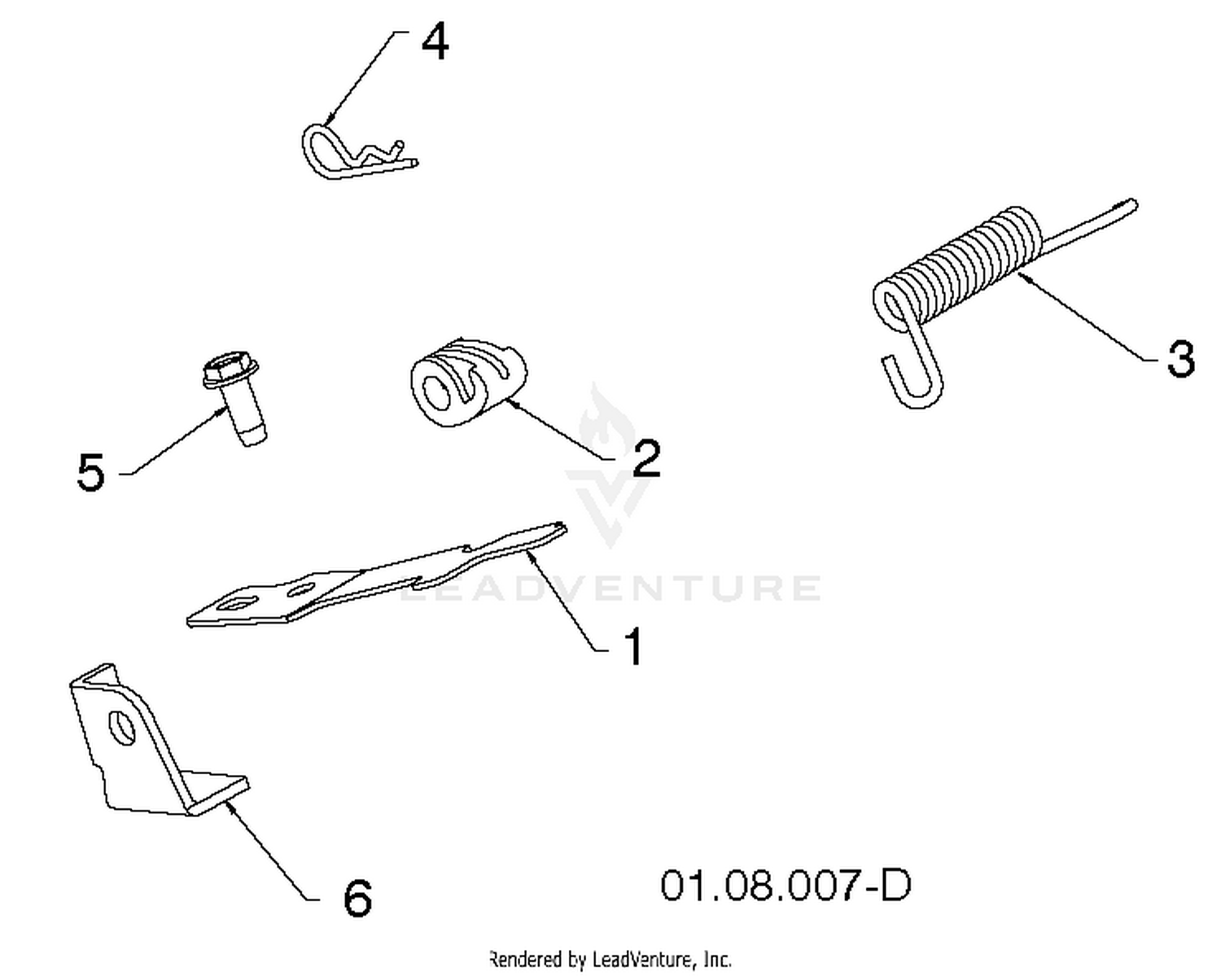

HANDLE
Parts (40)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 32112-1 | PUSHNUT-CAP, WASHER Price: $5.59 |
| 1 | 532412675 | SPRING.INTERLOCK This part replaces 532416288. Price: $2.99 |
| 2 | 532445291 | CAM.INTERLOCK.RELEASE Price: $2.99 |
| 2 | 77-6540 | PIN-HINGE Price: $69.74 |
| 3 | 532443215 | SPRING.TORSION.LEVER Price: $2.99 |
| 3 | 82-5870 | FOAM Price: $11.69 |
| 4 | 532169675 | SPRING RETAINER Price: $3.99 |
| 4 | 93-3237-03 | COVER-REAR Price: $425.80 |
| 5 | 28-0540 | BOLT-SHOULDER Price: $11.99 |
| 5 | 817060410 | SCREW 14-20 X 5/8 Price: $3.99 |
| 6 | 77-6890 | LATCH ROD ASM Price: $130.41 |
| 7 | 80-4980 | WASHER-THRUST Price: $17.04 |
| 8 | 32128-20 | NUT-HF Price: $0.99 |
| 9 | 93-4376 | SEAL-LEFT Price: $131.36 |
| 10 | 93-4375 | SEAL-RIGHT Price: $131.36 |
| 11 | 77-6430-03 | ARM-HOPPER Price: $988.31 |
| 12 | 3256-26 | WASHER-FLAT Price: $0.39 |
| 13 | 115-0625 | LINK ASM Price: $182.59 |
| 14 | 32153-5 | NUT-HEX Price: $1.59 |
| 19 | 108-1390 | HOPPER ASM Price: $2,492.83 |
| 20 | 93-4374 | SEAL-LH Price: $41.66 |
| 23 | 3290-415 | RIVET Price: $0.28 |
| 24 | 80-4760 | DECAL Price: $52.54 |
| 25 | 3269-10 | WASHER-BACK Price: $0.61 |
| 26 | 80-4740-03 | PLATE-BACKING Price: $56.55 |
| 27 | 32128-20 | NUT-HF Price: $0.99 |
| 28 | 32128-17 | NUT-LOCK, FLANGE Price: $0.25 |
| 29 | 77-6770-03 | HINGE Price: $112.07 |
| 30 | 32105-23 | SCREW Price: $0.88 |
| 31 | 93-3751-03 | COVER-HOPPER Price: $309.87 |
| 33 | 93-6649 | SEAL-COVER Price: $42.51 |
| 35 | 3233-14 | SCREW-CARR Price: $1.95 |
| 36 | 120-6592-03 | PLATE-BACKING,REAR This part replaces 77-6660-03. Price: $21.24 |
| 37 | 77-6650-03 | PLATE-BACKING Price: $89.59 |
| 38 | 77-6651-03 | PLATE-BACKING Price: $89.59 |
| 39 | 3230-2 | BOLT-CARR Price: $0.47 |
| 40 | 32105-13 | SCREW-HWH Price: $1.59 |
| 41 | 3269-22 | RIVET-POP Price: $0.61 |
| 45 | 92-6329-03 | PLATE-STIFFENER Price: $93.53 |
| 46 | 93-4373 | SEAL-RH Price: $41.66 |
