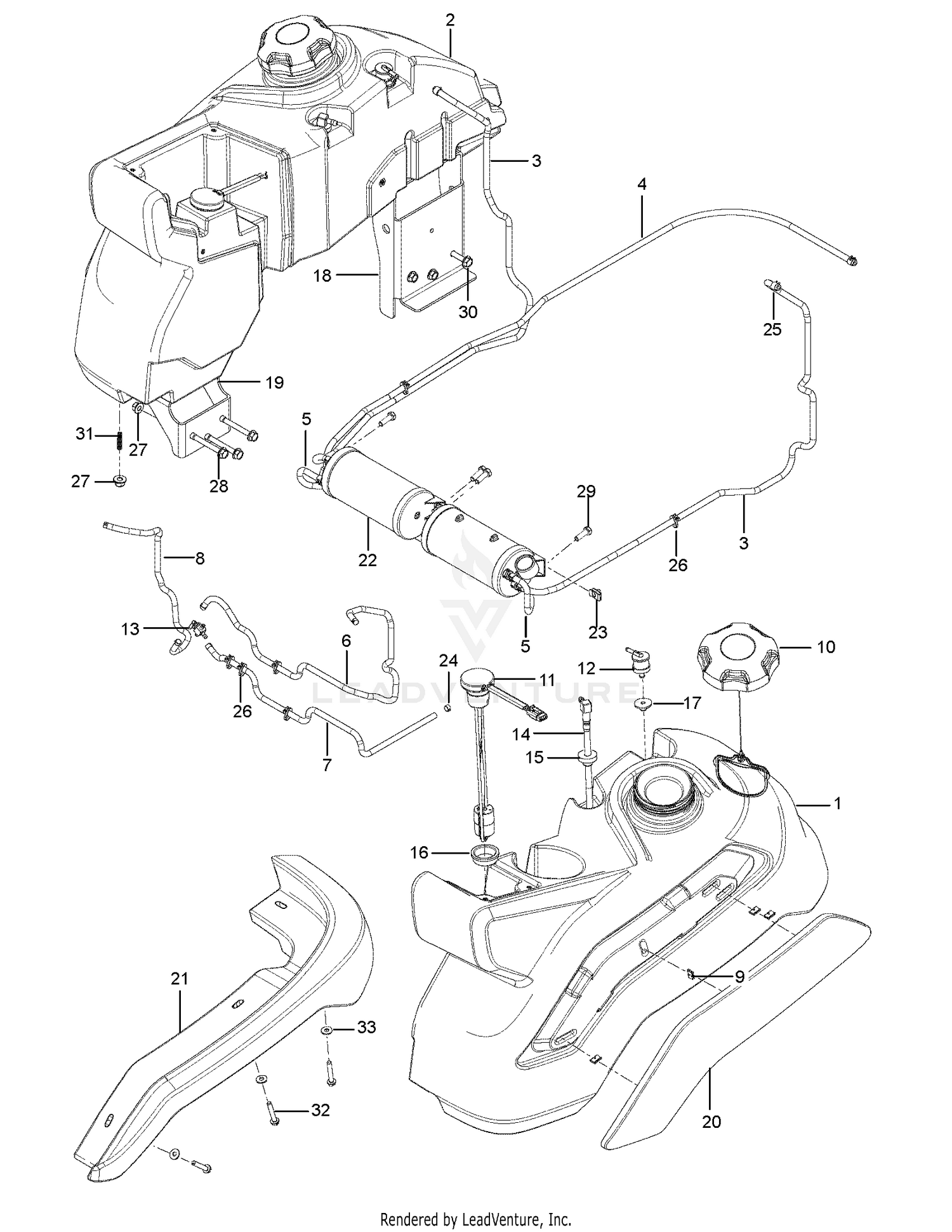

| Ref | Part Number | Description |
|---|
| 1 |
529986505 |
TANK UNIT ASY LH Z500 MUDGUARD This part replaces 582483105. Price: $649.99 |
| 2 |
529986105 |
FUEL TANK ASSEMBLY RH Z500 This part replaces 582481705. Price: $599.99 |
| 3 |
587044542 |
HOSE.3/16".VAPOR.LINE.42"LGTH Price: $5.99 |
| 4 |
587044555 |
HOSE.3/16".VAPOR.LINE.55"LGTH Price: $9.99 |
| 5 |
587044513 |
HOSE 3/16" VAPOR LINE 13" LENG Price: $2.99 |
| 6 |
587044846 |
HOSE.1/4".LOW.PERM.FUEL.LN.46" Price: $9.99 |
| 7 |
587044833 |
HOSE.1/4".LOW.PERM.FUEL.LN.33" Price: $7.99 |
| 8 |
587044824 |
HOSE.1/4".LOW.PERM.FUEL.LN.24" Price: $6.99 |
| 9 |
582482601 |
CLIP.U-TYPE Price: $3.99 |
| 10 |
575018103 |
CAP 3.5IN SEALED This part replaces 575018101. Price: $27.99 |
| 11 |
590638801 |
SENSOR.FUEL.LVL.FLOAT.V500 Price: $139.99 |
| 12 |
576618101 |
VALVE.FUEL.CHECK Price: $14.99 |
| 13 |
539102679 |
FUEL VALVE Price: $49.99 |
| 15 |
532003645 |
BUSHING OUTLET T Price: $3.99 |
| 16 |
590209101 |
GROMMET, FUEL SENSOR Price: $4.99 |
| 17 |
584648201 |
GROMMET.CHECK.FUEL Price: $3.99 |
| 18 |
582481502 |
BRACKET.FUEL.TANK.REAR.SUP.431 Price: $34.99 |
| 19 |
582481602 |
BRACKET.FUEL.TANK.REAR.SUP.431 Price: $19.99 |
| 20 |
98-9453 |
PULLEY-DYNAMO Price: $138.04 |
| 21 |
582483301 |
GUARD.MUD.LH Price: $64.99 |
| 22 |
585977402 |
CANISTER.FLEX.6.3GAL3/16".TANK Price: $54.99 |
| 24 |
539912222 |
HOSE CLAMP Price: $2.99 |
| 25 |
575436501 |
CLAMP, HOSE Price: $2.99 |
| 26 |
505280001 |
TIE WRAP, 8-3/8", W/CLIP Price: $2.99 |
| 28 |
874490548 |
BOLT HEX FLGHD 5/16-18X3 GR. 5 Price: $4.99 |
| 29 |
596230901 |
Screws This part replaces 874780412. Price: $2.99 |
| 30 |
593337201 |
SCREW HEXAGON HEAD WITH COLLAR This part replaces 817490516. Price: $2.99 |
| 30 |
98-7708 |
NUT Price: $7.76 |
| 31 |
582484201 |
SCREW.5/16-18X1.25"THREADED Price: $2.99 |
| 32 |
590257301 |
SCREW.1/4-20X1.5IN.HEX.MACH Price: $2.99 |
| 33 |
596582301 |
Washers This part replaces 532126684. Price: $2.99 |
| 40 |
117-0316 |
DRIVE END FRAME ASM Price: $1,076.07 |
| 50 |
133-2811 |
BEARING Price: $46.67 |
| 60 |
98-7715 |
PLATE-RETAINER Price: $9.38 |
| 70 |
98-7716 |
SCREW-HEAD, ROUND Price: $0.91 |
| 80 |
98-7717 |
BOLT-THROUGH Price: $9.75 |
| 90 |
117-0317 |
ROTOR ASM Price: $662.02 |
| 100 |
98-7711 |
COVER-BEARING Price: $7.32 |
| 110 |
107-0138 |
BEARING-BALL Price: $48.37 |
| 120 |
133-2813 |
FRAME-END Price: $148.89 |
| 130 |
117-0322 |
HOLDER Price: $393.13 |
| 140 |
107-0141 |
BRUSH HOLDER ASM Price: $107.10 |
| 150 |
98-7724 |
BRUSH Price: $12.41 |
| 160 |
98-7725 |
SPRING-BRUSH Price: $4.32 |
| 170 |
117-0319 |
REGULATOR ASM Price: $363.64 |
| 180 |
98-7727 |
SCREW-HEAD, ROUND Price: $0.94 |
| 190 |
98-7728 |
SCREW-HEAD, ROUND Price: $0.70 |
| 200 |
98-7729 |
BOLT Price: $2.35 |
| 210 |
98-7726 |
SCREW-HEAD, ROUND Price: $0.42 |
| 220 |
98-7731 |
BOLT Price: $3.94 |
| 230 |
117-0320 |
COVER-END Price: $107.22 |
| 240 |
117-0321 |
INSULATION-BRUSH Price: $39.99 |
| 250 |
98-7730 |
NUT Price: $1.31 |
| 260 |
98-7732 |
NUT Price: $1.45 |
| 582482301 |
GUARD.MUD.RH |
Price: $69.99 582482301 |
