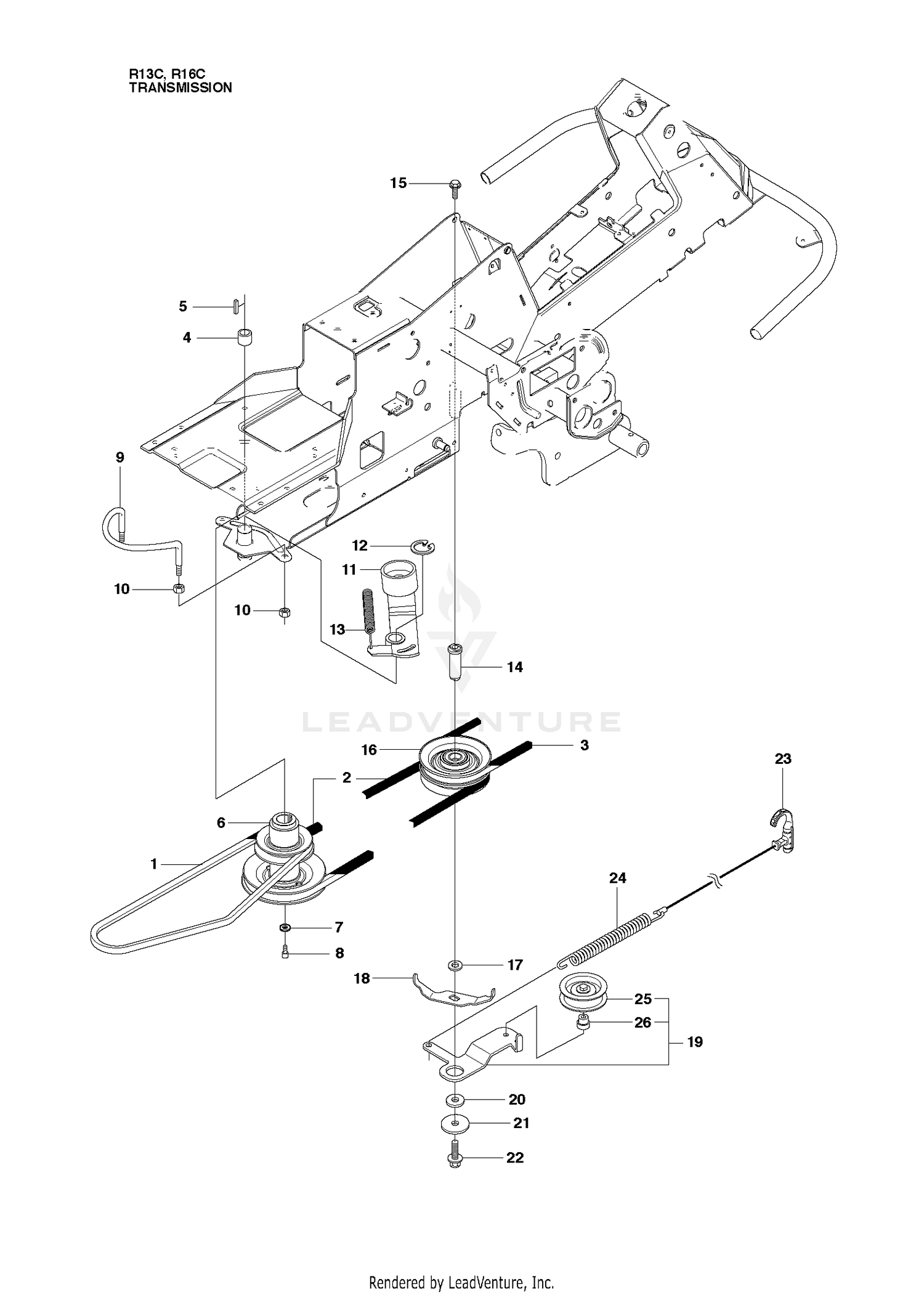

TRANSMISSION
Parts (29)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 119-0631 | ROLLER-SHOULDER, PLASTIC Price: $499.90 |
| 1 | 589531201 | BELT Price: $27.99 |
| 2 | 117-0957 | SHAFT-ROLLER, WIEHLE Price: $105.15 |
| 2 | 599675902 | BELT KIT This part replaces 589530401. Price: $44.99 |
| 3 | 594977801 | Belts This part replaces 589530001. Price: $34.99 |
| 4 | 506509201 | SPACER Price: $9.99 |
| 5 | 506555901 | KEY Price: $3.99 |
| 6 | 535482401 | PULLEY Price: $69.99 |
| 7 | 302-5 | FITTING-GREASE Price: $0.59 |
| 7 | 506597501 | WASHER Price: $6.99 |
| 8 | 506556002 | SCREW Price: $5.99 |
| 10 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 11 | 535484401 | TENSIONER Price: $54.99 |
| 12 | 735312600 | RETAINING RING SGA 25 Price: $2.99 |
| 13 | 506665601 | SPRING Price: $24.99 |
| 14 | 581916401 | SHAFT This part replaces 544426101. Price: $19.99 |
| 15 | 506675402 | BOLT Price: $5.99 |
| 16 | 535482201 | PULLEY Price: $64.99 |
| 17 | 506775701 | WASHER Price: $4.99 |
| 18 | 544405301 | BELT GUIDE Price: $6.99 |
| 19 | 544228101 | BELT TENSIONER ASSY Price: $44.99 |
| 20 | 506597501 | WASHER Price: $6.99 |
| 21 | 506982501 | Washer Price: $6.01 |
| 22 | 506597401 | BOLT This part replaces 506570105. Price: $5.99 |
| 23 | 544239501 | NEEDS DESCRIPTION Price: Call Us |
| 24 | 544238801 | SPRING Price: $11.99 |
| 25 | 586104302 | BELT TENSIONER WHEEL This part replaces 506793202. Price: $22.99 |
| 26 | 506976401 | BUSHING Price: $7.67 |
| 50 | 114-5430 | ROLLER REBUILD KIT Price: $99.53 |
