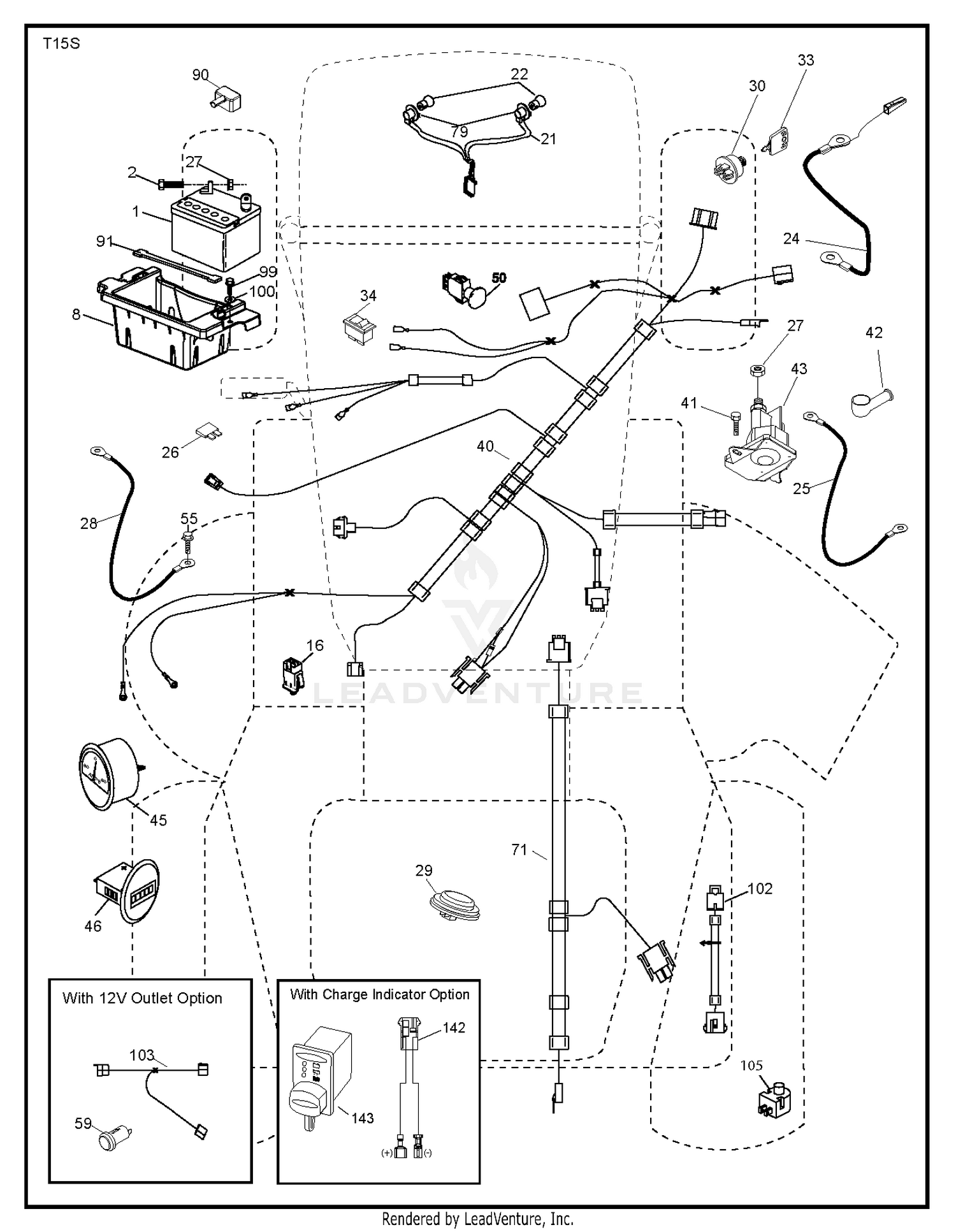

| Ref | Part Number | Description |
|---|
| 1 |
3256-1 |
WASHER-FLAT Price: $0.39 |
| 1 |
532123899 |
BATTERY.DRY.30.AMP This part replaces 532163465. Price: $149.99 |
| 2 |
3274-69 |
SCREW-HSBH Price: $0.43 |
| 2 |
874760412 |
BOLT.HEX.1/4.X.3/4.DICHROMATE Price: $3.99 |
| 3 |
107-2554 |
DECAL-PANEL, CONTROL This part replaces 93-8061. Price: $41.00 |
| 4 |
83-2030 |
PLATE-FILLER Price: $19.19 |
| 5 |
120-2244 |
HOURMETER This part replaces 66-2950. Price: $48.06 |
| 6 |
98-2160 |
VOLTMETER Price: $100.25 |
| 7 |
321-4 |
SCREW-HH Price: $0.99 |
| 8 |
532186491 |
BOX.BATTERY.MOUNT.FRONT.LT Price: $14.99 |
| 8 |
98-2159 |
DISCONTINUED Price: Call Us |
| 9 |
83-1530 |
BRACKET-SUPPORT, BUZZER Price: $13.54 |
| 10 |
3296-16 |
NUT-LOCK, NI Price: $1.39 |
| 11 |
70-1480 |
RELAY Price: $105.19 |
| 12 |
3255-7 |
WASHER-LOCK/EXT Price: $1.39 |
| 13 |
83-1660 |
SWITCH-3 POSITION Price: $98.62 |
| 14 |
83-2280 |
TIMER-DELAY Price: $126.04 |
| 16 |
532176138 |
SWITCH INTERLOOK PUSH-IN Price: $19.99 |
| 16 |
83-0040 |
CONTROL-CHOKE Price: $36.29 |
| 17 |
3296-27 |
NUT-LOCK, NI Price: $0.27 |
| 18 |
83-0030 |
CONTROL-THROTTLE Price: $39.07 |
| 19 |
104-2541 |
SWITCH ASM This part replaces 88-9830. Price: $36.70 |
| 20 |
63-8360 |
KEY-IGNITION Price: $5.29 |
| 21 |
3273-26 |
SCREW-HSH Price: $0.41 |
| 21 |
532400252 |
HARNESS.LIGHT W/4152J BULBS Price: $19.99 |
| 22 |
532004152 |
LIGHTBULB Price: $3.99 |
| 24 |
585555601 |
CABLE.FRBATT.W/WIRE.8GA.8 This part replaces 532400253. Price: $7.99 |
| 25 |
585555501 |
CABLE.STARTER.8GA.17.5 This part replaces 532412895. Price: $7.99 |
| 26 |
532175158 |
FUSE 20AMP Price: $4.99 |
| 27 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 28 |
532145491 |
CABLE GROUND 6 GA 21" 90T BLK Price: $6.99 |
| 29 |
532401545 |
SWITCH.SEAT.DELTA.OPC. Price: $34.99 |
| 30 |
532193350 |
SWITCH.IGN.DELTA.W.LGH.ROS Price: $19.99 |
| 33 |
532411935 |
KEY.CHAIN.BLISTER.PACK.GEN.INT This part replaces 532411933. Price: $8.99 |
| 34 |
532110712 |
SWITCH LT Price: $7.99 |
| 40 |
581583501 |
HARNESS.IGN.DASH.W/112V.PORT Price: $69.99 |
| 41 |
596437001 |
Screws This part replaces 817720408. Price: $2.99 |
| 42 |
532154336 |
COVER.TERMINAL.RED This part replaces 532131563. Price: $4.99 |
| 43 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 45 |
529910801 |
AMMETER This part replaces 532425270. Price: $27.99 |
| 46 |
529910701 |
HOUR METER This part replaces 532425271. Price: $69.99 |
| 50 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174651. Price: $24.99 |
| 55 |
532171877 |
BOLT.5/16-18UNCX3/4 W/SEMS.BLK This part replaces 817060512. Price: $4.99 |
| 59 |
596941001 |
Outlets This part replaces 532400303. Price: $11.99 |
| 71 |
532194276 |
HARNESS-CHASSIS SUB Price: $27.99 |
| 79 |
532175242 |
BULB HOLDER ASM. Price: $8.99 |
| 90 |
532435395 |
COVER.TERMINAL.BATTERY Price: $4.99 |
| 91 |
532190270 |
STRAP.BATTERY.MOUNT.FRONT(2 2) Price: $7.99 |
| 99 |
817670412 |
SCREW HEXWSHR 1/4-20X3/4 Price: $3.99 |
| 100 |
596135301 |
Washers This part replaces 819091416. Price: $2.99 |
| 102 |
532404454 |
HARNESS PIGTAIL PCH TEX ROS Price: $14.99 |
| 103 |
532421747 |
HARNESS.PIGTAIL.12V.OUTLET. Price: $12.99 |
| 105 |
532407568 |
REVERSE SWITCH Price: $12.99 |
