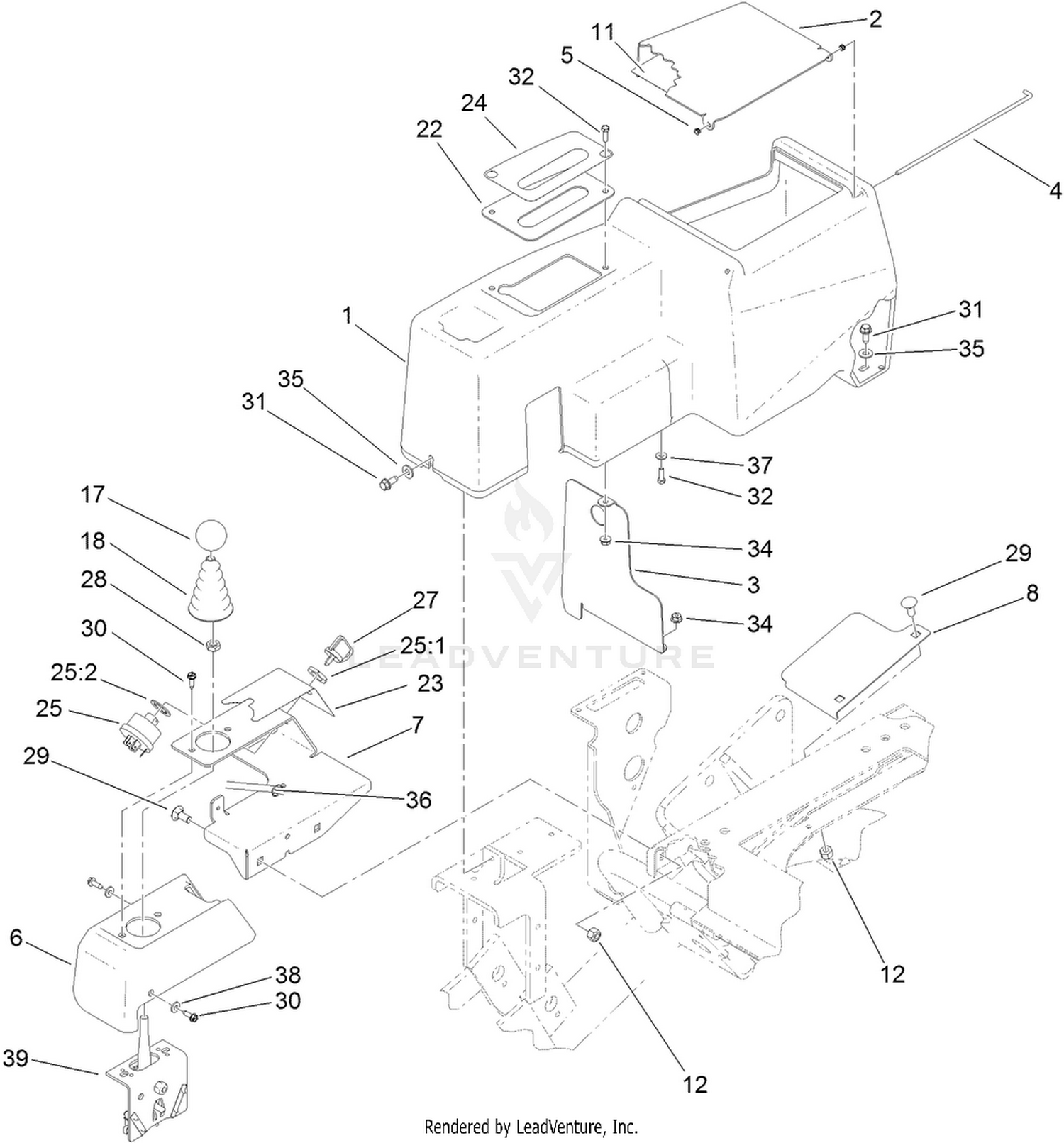

Joystick and Console Assembly
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 105-8250 | CONSOLE Price: $213.37 |
| 2 | 105-8254-03 | LID-CONSOLE Price: $63.57 |
| 3 | 105-8255-03 | BAFFLE-CONSOLE Price: $33.59 |
| 4 | 105-8256 | ROD-HINGE Price: $17.77 |
| 5 | 105-8283 | BUSHING Price: $1.70 |
| 6 | 105-8251 | POD Price: $67.39 |
| 7 | 105-8252-03 | BRACKET-POD Price: $113.31 |
| 8 | 105-8284-03 | SHIELD-VALVE Price: $21.17 |
| 11 | 115-8156 | DECAL-SPEED, CLIP Price: $7.59 |
| 12 | 3296-29 | NUT-LOCK, NI Price: $2.09 |
| 17 | 233-42 | KNOB Price: $12.88 |
| 18 | 93-5961 | BOOT-LEVER Price: $56.35 |
| 22 | 105-8280-03 | PLATE-CONSOLE Price: $9.63 |
| 23 | 105-8305 | DECAL-PANEL, CONTROL Price: $23.63 |
| 24 | 105-8306 | DECAL-SELECTOR, SPEED Price: $20.42 |
| 25 | 104-2541 | SWITCH ASM Price: $36.70 |
| 27 | 63-8360 | KEY-IGNITION Price: $5.29 |
| 28 | 3218-3 | NUT-JAM Price: $0.25 |
| 29 | 3230-1 | BOLT-CARR Price: $1.49 |
| 30 | 32144-19 | SCREW-SHWH Price: $0.89 |
| 31 | 32144-10 | SCREW-HWH Price: $4.29 |
| 32 | 3290-134 | SCREW Price: $0.27 |
| 34 | 3290-148 | NUT-HF Price: $0.25 |
| 35 | 3256-22 | WASHER-FLAT Price: $0.39 |
| 36 | 3290-378 | TIE-CABLE Price: $0.79 |
| 37 | 3256-77 | WASHER-FLAT Price: $1.60 |
| 38 | 3256-14 | WASHER-FLAT Price: $0.39 |
