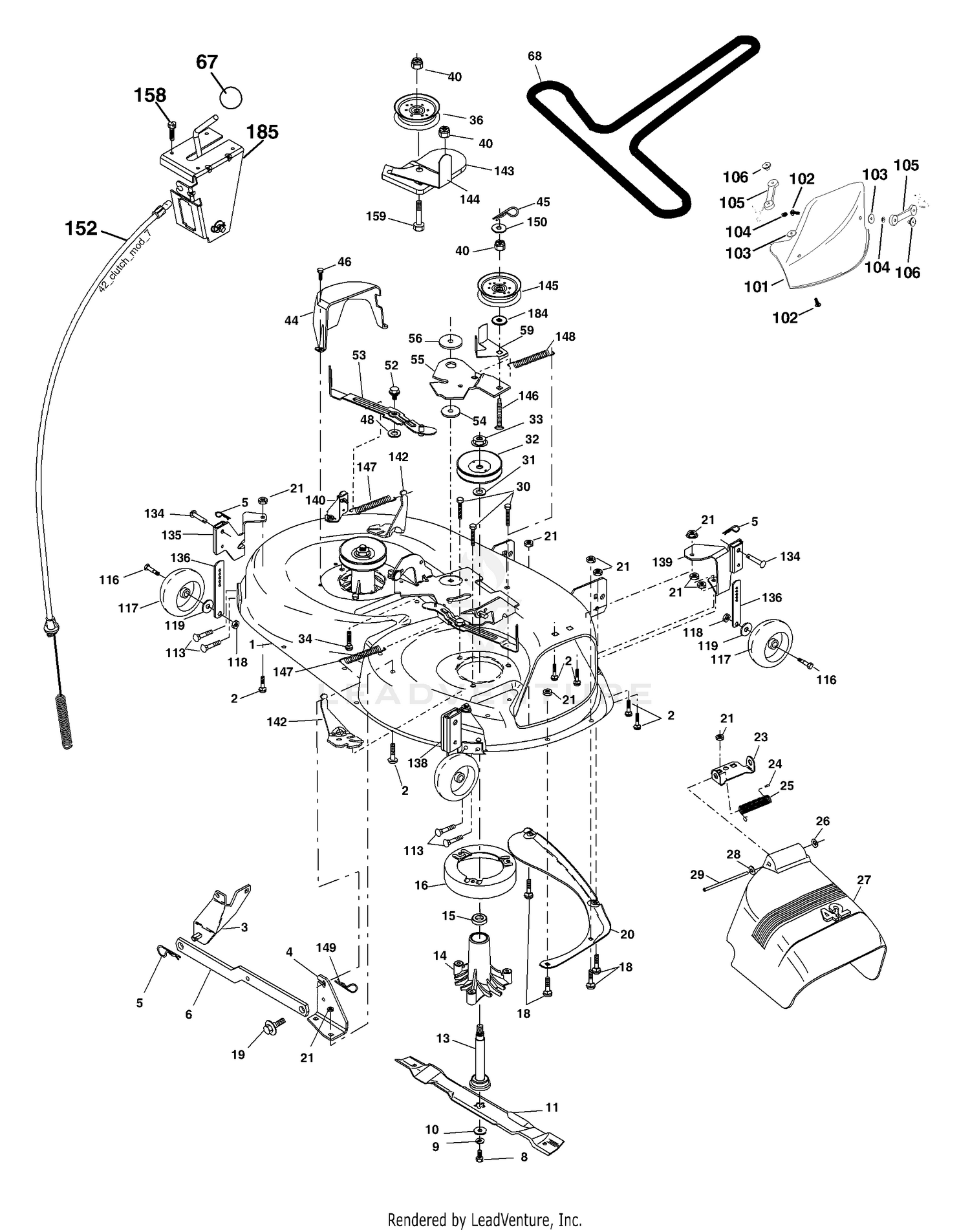

| Ref | Part Number | Description |
|---|
| 1 |
182032X421 |
Mower Deck Assembly, 42" Price: Call Us |
| 2 |
72140506 |
Bolt Price: Call Us |
| 2 |
86-8101-01 |
JOINT-BALL, LH This part replaces 86-8101-03. Price: $64.64 |
| 3 |
138017 |
Bracket Asm Fr. Sway Bar 3/42 Price: Call Us |
| 3 |
324-19 |
SCREW-HH Price: $1.29 |
| 4 |
165460 |
Bracket Asm Deck 42" Sway Bar Price: Call Us |
| 4 |
283-55 |
PIN-CLEVIS Price: $11.14 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 5 |
95-6231 |
CHAIN-HOC Price: $14.75 |
| 6 |
104-0108 |
U-BOLT Price: $7.10 |
| 6 |
178024 |
Bar Sway Deck Price: Call Us |
| 7 |
3217-9 |
NUT-HH Price: $0.37 |
| 8 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 8 |
850857 |
Bolt 3/8-24 x 1.25 Gr. 8 patched Price: Call Us |
| 9 |
10030600 |
Washer, Lock Price: Call Us |
| 9 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 10 |
140296 |
Washer, Hardened Price: Call Us |
| 10 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 11 |
100-3031 |
RH LIFT ARM ASM Price: $640.71 |
| 11 |
100-3032 |
LH LIFT ARM ASM Price: $640.71 |
| 12 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 13 |
137645 |
Shaft Assembly, Mandrel, Vented Price: Call Us |
| 13 |
140-6337 |
PIN ASM This part replaces 100-3017. Price: $55.25 |
| 14 |
128774 |
Housing, Mandrel, Vented Price: Call Us |
| 14 |
32121-110 |
PIN-ROLL, SLOTTED Price: $1.93 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
3272-23 |
PIN-COTTER Price: $0.28 |
| 16 |
105-7456 |
PIN-PIVOT This part replaces 100-5559. Price: $21.24 |
| 16 |
174493 |
Stripper, Mandrel Deck Price: Call Us |
| 17 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 18 |
107-4304 |
HYD CYLINDER ASM This part replaces 100-3016. Price: $637.96 |
| 18 |
72140505 |
Bolt, Carriage 5/16-18 x 5/8 Price: Call Us |
| 19 |
132827 |
Bolt, Shoulder Price: Call Us |
| 19 |
3296-49 |
NUT-LOCK, NI Price: $4.93 |
| 20 |
120-5575 |
PIN This part replaces 100-3020. Price: $24.69 |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 21 |
323-7 |
SCREW-HH Price: $0.65 |
| 21 |
73680500 |
Nut Price: Call Us |
| 22 |
3256-4 |
WASHER-FLAT Price: $0.28 |
| 23 |
177563 |
Bracket, Deflector Mower 42" Price: Call Us |
| 23 |
340-139 |
FITTING-ELBOW 90 Price: $117.76 |
| 24 |
105304X |
Cap, Sleeve 80 x 112 Blk Mower Price: Call Us |
| 24 |
21-3001 |
NUT-JAM This part replaces 21-3001-03. Price: $10.04 |
| 25 |
123713X |
Spring, Torsion, Deflector 2 52 Price: Call Us |
| 25 |
3290-467 |
PIN-HAIR Price: $0.27 |
| 26 |
110452X |
Nut, Push Phos & Oil Price: Call Us |
| 26 |
140-5809 |
SUPPORT-HUB This part replaces 93-4583-01. Price: $40.20 |
| 27 |
130968X428 |
Shield, Deflector 42" Blk Price: Call Us |
| 27 |
3272-12 |
PIN-COTTER Price: $0.25 |
| 28 |
19111016 |
Washer 11/32 x 5/8 x 16 Ga. Price: Call Us |
| 28 |
87-7480 |
WASHER Price: $1.26 |
| 29 |
131491 |
Rod, Hinge 42" 6 75 W/G Price: Call Us |
| 29 |
3296-48 |
NUT-LOCK, NI Price: $0.37 |
| 30 |
104-3542 |
SPIDER Price: $67.38 |
| 30 |
173984 |
Screw Thdrol Price: Call Us |
| 31 |
104-3541 |
HUB-SPIDER Price: $130.30 |
| 31 |
187690 |
Washer, Spacer Mower Vented Price: Call Us |
| 32 |
100-5638 |
SHIM Price: $11.29 |
| 32 |
173436 |
Pulley, Mandrel Price: Call Us |
| 33 |
127-3694 |
HYD MOTOR ASM This part replaces 99-5489. Price: $968.32 |
| 33 |
178342 |
Nut, Toplock Price: Call Us |
| 34 |
340-8 |
FITTING-STRAIGHT Price: $9.70 |
| 34 |
72110612 |
Bolt Carr SH 3/8-16 x 1-1/2 Gr.5 Price: Call Us |
| 35 |
3234-42 |
SCREW-HHF Price: $1.10 |
| 36 |
173438 |
Pulley, Idler, Flat Price: Call Us |
| 36 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 37 |
104-3595 |
SPACER-SWITCH Price: $19.14 |
| 38 |
104-0758 |
SENSOR-FERROUS Price: $220.08 |
| 39 |
104-3598 |
PLATE-SENSING, FRONT Price: $24.20 |
| 40 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 40 |
73900600 |
Nut Lock 3/8-16 Price: Call Us |
| 41 |
3256-60 |
WASHER-FLAT Price: $1.49 |
| 42 |
3229-1 |
BOLT-CARR Price: $3.39 |
| 43 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 44 |
140088 |
Guard, Mandrel, LH Price: Call Us |
| 44 |
3230-16 |
SCREW-CARR Price: $1.79 |
| 45 |
340-2 |
FITTING-STRAIGHT Price: $11.43 |
| 45 |
4497H |
Retainer Price: Call Us |
| 46 |
137729 |
Screw, Thdrol 1/4-20 x 5/8 T Price: Call Us |
| 46 |
340-77 |
FITTING-ELBOW, 90 DEG Price: $24.95 |
| 47 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 48 |
133944 |
Washer, Hardened Price: Call Us |
| 52 |
139888 |
Bolt, Shoulder 5/16-18 unc Price: Call Us |
| 53 |
184907 |
Arm Assembly, Pad, Brake Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
155046 |
Arm, Idler Price: Call Us |
| 56 |
122052X |
Spacer, Retainer Price: Call Us |
| 59 |
173442 |
Guard TUV Idler Price: Call Us |
| 67 |
171598 |
Knob Round Price: Call Us |
| 68 |
144959 |
V-Belt, 42" Mower Price: Call Us |
| 101 |
136420 |
Mulcher Cover Price: Call Us |
| 102 |
71081010 |
Screw, Pan Hd Phillip 10-24 x 5/8 Price: Call Us |
| 103 |
19061216 |
Washer, Flat Price: Call Us |
| 104 |
10071000 |
Washer, Lock Price: Call Us |
| 105 |
160793 |
Latch Assembly Price: Call Us |
| 106 |
2029J |
Nut, Weld Price: Call Us |
| 113 |
17060512 |
Screw 5/16-18 x 3/4 Price: Call Us |
| 116 |
184219 |
Bolt, Shoulder Price: Call Us |
| 117 |
133957 |
Wheel, Gauge Price: Call Us |
| 118 |
73930600 |
Nut Centerlock 3/8-16 Price: Call Us |
| 119 |
19121414 |
Washer 3/8 x 7/8 x 14 Ga. Price: Call Us |
| 134 |
156941 |
Pin Head Rivet Price: Call Us |
| 135 |
159765X421 |
Bracket Asm. Whl Ga. R LH Price: Call Us |
| 136 |
155986 |
Bar Adjusting Gauge Wheel Price: Call Us |
| 138 |
159763X421 |
Bracket Asm Whl Ga. R RH Price: Call Us |
| 139 |
159767X421 |
Bracket Asm. Whl Ga. F RH Price: Call Us |
| 140 |
159768X421 |
Bracket Asm Whl Ga. F LH Price: Call Us |
| 142 |
165890 |
Arm Spring Brake Mower Price: Call Us |
| 143 |
157109 |
Bracket Arm Idler 42" Price: Call Us |
| 144 |
173441 |
Keeper Belt 42" Clutch Cable Price: Call Us |
| 145 |
173437 |
Pulley Idler Flat Price: Call Us |
| 146 |
173443 |
Bolt Carriage Idler Price: Call Us |
| 147 |
131335 |
Spring Extension Price: Call Us |
| 148 |
169022 |
Spring Return Idler Price: Call Us |
| 149 |
165898 |
Retainer Spring Yellow Price: Call Us |
| 150 |
19091210 |
Washer 9/32 x 3/4 x 10 Ga. Price: Call Us |
| 152 |
169676 |
Clutch Cable 42" Price: Call Us |
| 158 |
17720408 |
Screw Hex Thd Cut 1/4-20 x 1/2 Price: Call Us |
| 159 |
72140614 |
Bolt Rdhd Sqn 3/8-16 unc x 1-3/4 Price: Call Us |
| 184 |
19131410 |
Washer 13/32 x 7/8 x 10 Ga. Price: Call Us |
| 185 |
188234 |
Head Asm Cable Clutch Price: Call Us |
