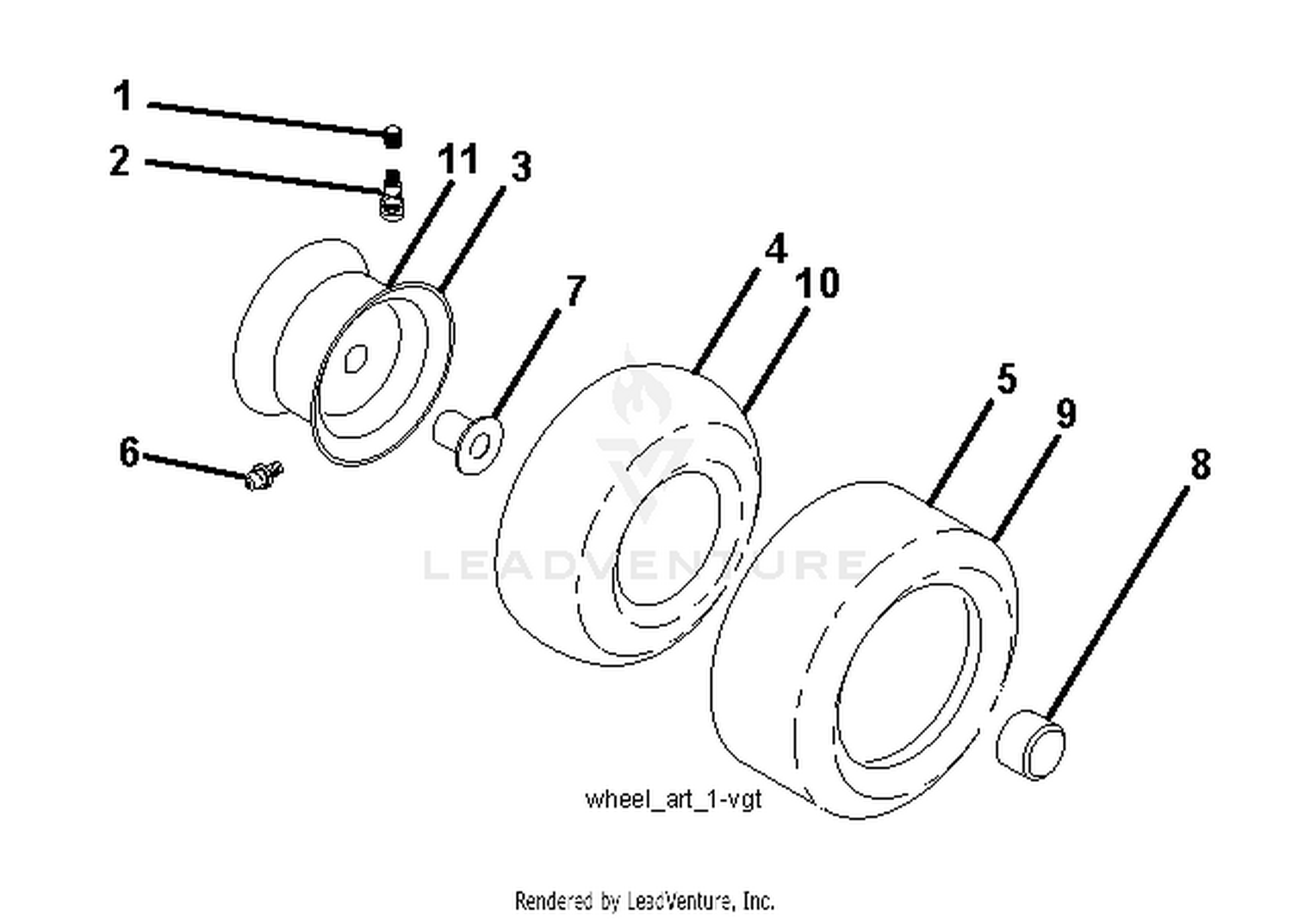

| Ref | Part Number | Description |
|---|
| 1 |
532059192 |
VALVE CAP Price: $3.99 |
| 1 |
92-5671 |
STRIP-SEALING Price: $20.41 |
| 2 |
108-3283 |
HOSE-FUEL Price: $4.60 |
| 2 |
532065139 |
VALVE STEM LT Price: $5.99 |
| 3 |
2412-108 |
CLAMP-WORM Price: $1.29 |
| 3 |
532106732 |
Rim Asm 6" Front This part replaces 532125121. Price: $59.99 |
| 4 |
532059904 |
TUBE.5.3/4.5/6 Price: $22.69 |
| 4 |
92-9266 |
STANDPIPE Price: $26.91 |
| 5 |
532122073 |
TIRE.FRONT (15X6-6) TURF SAVER This part replaces 532106222. Price: $45.99 |
| 5 |
92-5670 |
STRIP-SEALING Price: $7.03 |
| 6 |
46-6560 |
BUSHING Price: $2.94 |
| 6 |
532000278 |
Fitting, Grease This part replaces 532124957. Price: $2.99 |
| 7 |
32122-24 |
SCREW-PTH Price: $0.27 |
| 7 |
532009040 |
Bearing, Flange This part replaces 532124959. Price: $3.99 |
| 8 |
3253-15 |
WASHER-LOCK Price: $1.49 |
| 8 |
532104757 |
Cap Axle This part replaces 532175039. Price: $1.99 |
| 9 |
532125833 |
TIRE.TURF.SAVER.20X10-8 This part replaces 532122082. Price: $135.99 |
| 9 |
92-9267 |
SENDER-FUEL Price: $118.15 |
| 10 |
532007152 |
Tube This part replaces 532124926. Price: $40.99 |
| 10 |
62-7650 |
GASKET Price: $4.28 |
| 11 |
532125122 |
RIM ASSEMBLY, REAR Price: $103.99 |
| 11 |
93-3102 |
CAP-FUEL Price: $24.02 |
| 12 |
92-5674 |
NECK-FILL, FUEL Price: $188.78 |
| 13 |
92-5675 |
GROMMET Price: $21.90 |
| 14 |
2412-42 |
CLAMP-HOSE Price: $2.65 |
| 15 |
92-9272 |
HOSE-FILL, FUEL Price: $52.93 |
| 16 |
93-1402 |
TANK-FUEL Price: $602.12 |
| 17 |
104-5266-03 |
BODY-LOWER Price: $2,297.30 |
| 18 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 19 |
240-11 |
BUSHING-FLANGE Price: $5.32 |
| 20 |
63-8410 |
WASHER Price: $1.76 |
| 21 |
323-5 |
SCREW-HH Price: $0.41 |
| 22 |
52-9590 |
LATCH-SCREEN Price: $6.57 |
| 23 |
3296-12 |
NUT-LOCK, NI Price: $1.29 |
| 24 |
92-5654-03 |
PANEL-OUT, CLEAN Price: $113.82 |
| 29 |
3234-4 |
SCREW-HHF Price: $0.50 |
| 30 |
321-2 |
SCREW-HH Price: $2.79 |
| 31 |
3296-56 |
NUT-LOCK, NI Price: $2.09 |
| 32 |
92-5653-03 |
RING-CLAMP Price: $16.40 |
| 33 |
92-5269 |
BELLOWS Price: $193.76 |
| 34 |
92-1242 |
DECAL Price: $20.82 |
| 35 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 36 |
240-9 |
GROMMET Price: $3.25 |
| 37 |
32148-9 |
NUT-CLINCH Price: $2.65 |
| 38 |
3256-51 |
WASHER-FLAT Price: $0.19 |
| 39 |
46-6550 |
FITTING-ELBOW, 90 DEG Price: $37.39 |
| 40 |
110-4112 |
HOSE-FUEL Price: $12.60 |
| 41 |
92-6064 |
CLAMP-R Price: $2.04 |
| 42 |
322-3 |
SCREW-HH Price: $0.79 |
| 43 |
92-6069-03 |
SHIELD-EXHAUST Price: $27.08 |
| 44 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 45 |
32128-33 |
NUT-HF Price: $0.25 |
| 47 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 51 |
3234-17 |
SCREW-HHF Price: $0.72 |
| 52 |
94-8270 |
BOLT-SHOULDER Price: $17.58 |
| 53 |
63-4220 |
SPRING-COMPRESSION Price: $16.11 |
| 54 |
3256-78 |
WASHER-FLAT Price: $1.21 |
| 55 |
94-8258 |
STRIP-SEAL Price: $3.70 |
| 57 |
110-5688 |
HOSE-FUEL Price: $34.27 |
| 58 |
60-4350 |
GROMMET Price: $4.46 |
| 60 |
98-7612 |
FILTER-FUEL Price: $10.48 |
