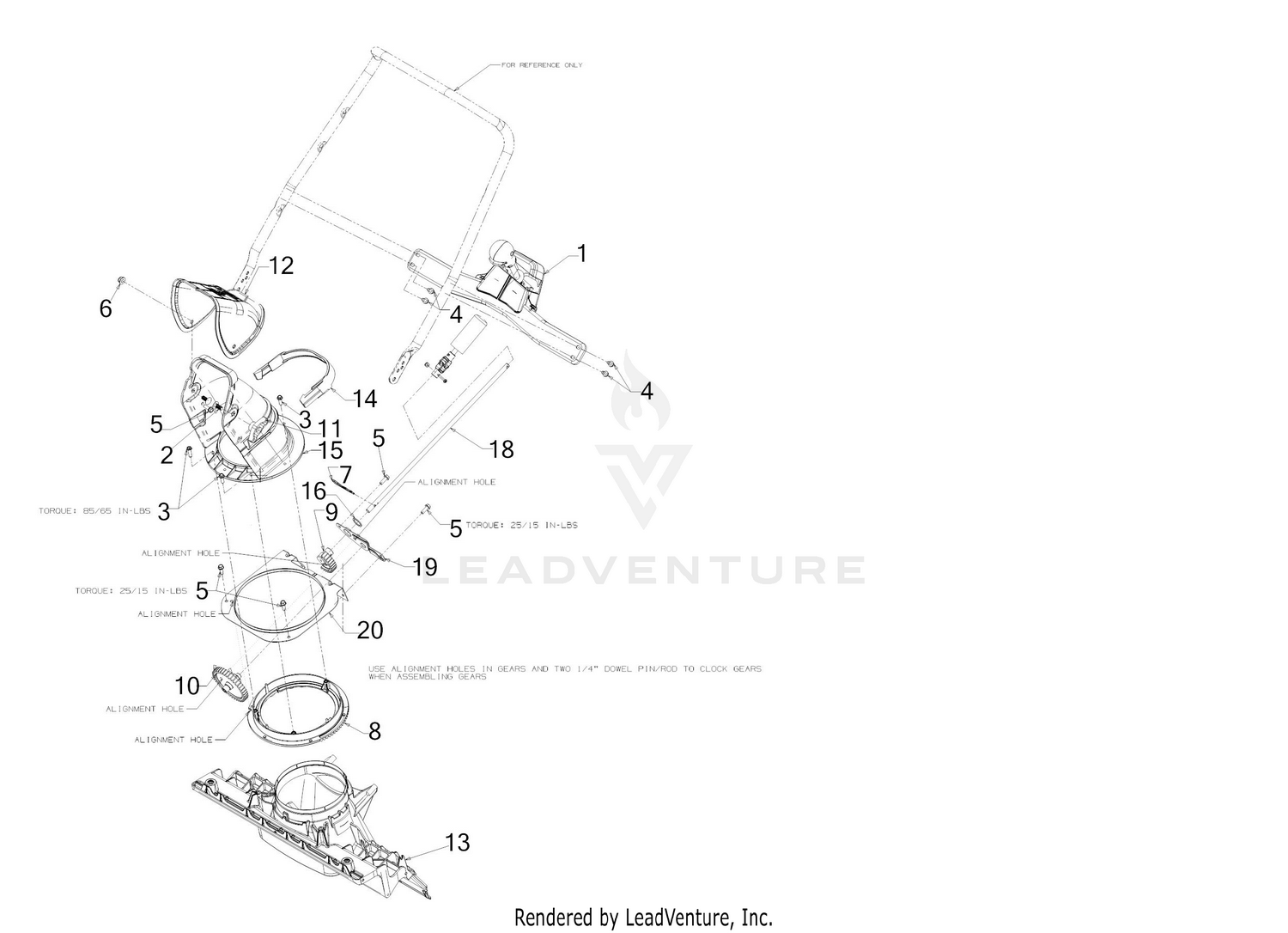

| Ref | Part Number | Description |
|---|
| 2 |
710-0451 |
CARRIAGE BOLT 5/16-18 x .75 Price: $3.53 |
| 3 |
710-05108 |
SCREW 1/4 x .750 Price: $3.19 |
| 4 |
710-0599 |
SCREW 1/4-20 X.500 Price: $3.86 |
| 5 |
710-0895 |
SCREW 1/4-15 x .750 Price: $5.82 |
| 6 |
712-04063 |
FLANGE LOCK NUT 5/16-18 Price: $3.56 |
| 7 |
714-04003 |
COTTER PIN .125X2. Price: $7.09 |
| 8 |
917-04844B |
BEVEL GEAR 95T Price: $30.99 |
| 9 |
717-04940 |
SPUR GEAR Price: $12.11 |
| 10 |
717-04941 |
SPUR-GEAR 40T Price: $16.76 |
| 11 |
720-04122 |
WING KNOB 5/16-18 Price: $5.87 |
| 12 |
731-04426C |
UPPER CHUTE (W/LBL MANUAL TILT) This part replaces 731-04426A. Price: $17.04 |
| 13 |
931-07626B |
CHUTE ADAPTER Price: $37.25 |
| 14 |
731-07708 |
CHUTE PLUG Price: $11.59 |
| 15 |
931-07753A |
LOWER CHUTE 6.5 Price: $30.99 |
| 16 |
736-04161 |
FLAT WASHER .750X1.000X.060:HD Price: $6.01 |
| 18 |
747-05299A |
LOWER CHUTE CRANK ROD Price: $13.94 |
| 19 |
790-00416 |
GEAR PLATE Price: $4.83 |
