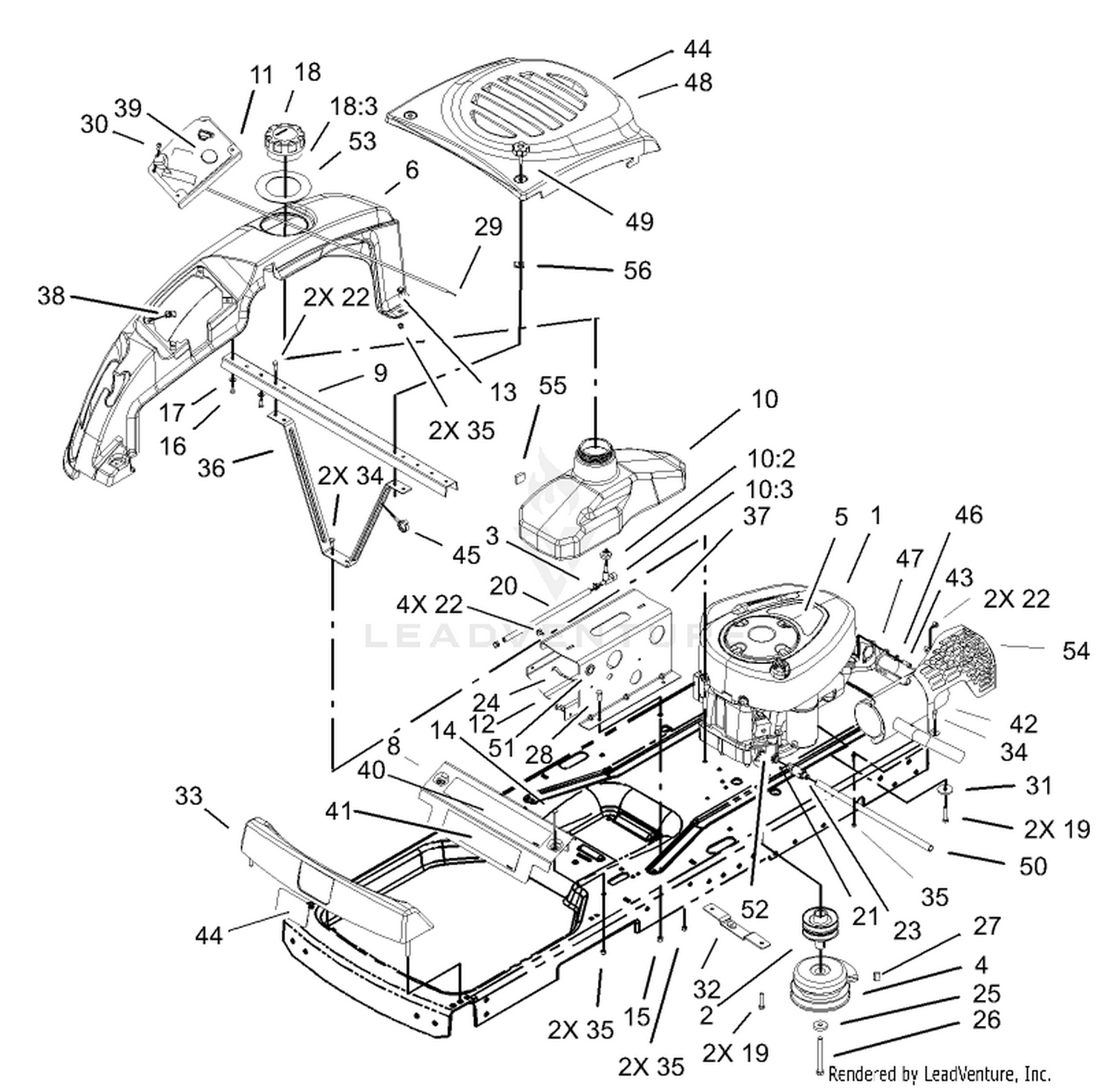

| Ref | Part Number | Description |
|---|
| 2 |
105-3472 |
PULLEY-ENGINE Price: $140.16 |
| 3 |
2412-98 |
CLAMP-HOSE Price: $1.39 |
| 4 |
104-3334 |
CLUTCH-ELECTRIC Price: $315.91 |
| 5 |
106-6409 |
DECAL-ENGINE Price: $6.37 |
| 6 |
106-2161 |
COVER-SIDE, RH Price: $178.05 |
| 8 |
106-2164-03 |
BRACKET-SUPPORT, FRONT Price: $26.40 |
| 9 |
108-2313-03 |
CHANNEL-CROSS This part replaces 106-2165-03. Price: $38.79 |
| 10 |
105-3464 |
DISCONTINUED Price: Call Us |
| 11 |
106-2167-03 |
PANEL-CONTROL Price: $14.20 |
| 12 |
105-3453-03 |
DISCONTINUED Price: Call Us |
| 13 |
11-9030 |
SCREW-SHOULDER Price: $5.63 |
| 14 |
3229-7 |
SCREW-CARR Price: $0.87 |
| 15 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 16 |
46-8090 |
SCREW-PLASTITE Price: $1.84 |
| 17 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 18 |
88-3980 |
GAS CAP ASM Price: $31.99 |
| 19 |
322-7 |
SCREW-HH Price: $0.89 |
| 20 |
106-8720 |
DISCONTINUED Price: Call Us |
| 21 |
88-4490 |
REDUCER-THROTTLE, RPM Price: $12.48 |
| 22 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 23 |
92-6877 |
VALVE-DRAIN, OIL Price: $38.99 |
| 24 |
609830 |
SPRING Price: $3.26 |
| 25 |
112843 |
WASHER Price: $2.16 |
| 26 |
3212-16 |
SCREW-HH Price: $1.56 |
| 27 |
98-5023 |
BUMPER Price: $4.36 |
| 28 |
322-4 |
SCREW-HH Price: $0.35 |
| 29 |
104-3626 |
CABLE-THROTTLE Price: $48.15 |
| 30 |
3258-166 |
SCREW-PRH Price: $0.28 |
| 31 |
62-7190 |
SPACER-STEEL Price: $3.87 |
| 32 |
106-2156 |
PLATE-MOUNT, IDLER Price: $21.27 |
| 33 |
105-6965 |
FOOTREST ASM Price: $115.16 |
| 34 |
321-4 |
SCREW-HH Price: $0.99 |
| 35 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 36 |
106-6994-03 |
BRACE ASM Price: $25.36 |
| 37 |
108-2314-03 |
PLATE-TANK This part replaces 106-2193-03. Price: $69.59 |
| 38 |
107069 |
CLIP Price: $1.79 |
| 39 |
106-2224 |
DECAL-CONTROL Price: $20.60 |
| 40 |
107-2514 |
DECAL-DANGER This part replaces 106-6989. Price: $10.68 |
| 41 |
106-6992 |
DECAL Price: $4.72 |
| 42 |
106-7007 |
MUFFLER Price: $270.35 |
| 43 |
3274-10 |
SCREW-HSH Price: $0.47 |
| 44 |
105-6971 |
DECAL Price: $5.04 |
| 45 |
105-1853 |
CLAMP-HOSE Price: $3.49 |
| 46 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 47 |
88-4410 |
GASKET-EXHAUST Price: $10.68 |
| 48 |
106-2163 |
DISCONTINUED Price: Call Us |
| 49 |
106-7017 |
KNOB Price: $13.18 |
| 50 |
106-7022 |
TUBE-DRAIN, OIL Price: $8.99 |
| 51 |
237-124 |
GROMMET Price: $2.30 |
| 52 |
32128-25 |
NUT-HF Price: $3.19 |
| 53 |
106-7042 |
SEAL-RUBBER Price: $6.25 |
| 54 |
106-7028-03 |
GUARD-MUFFLER Price: $127.20 |
| 55 |
104-2488 |
FOAM-SWITCH, SEAT Price: $4.36 |
